Compresor Sanyo model C-SBN263H8G, 32700 BTU, 380V

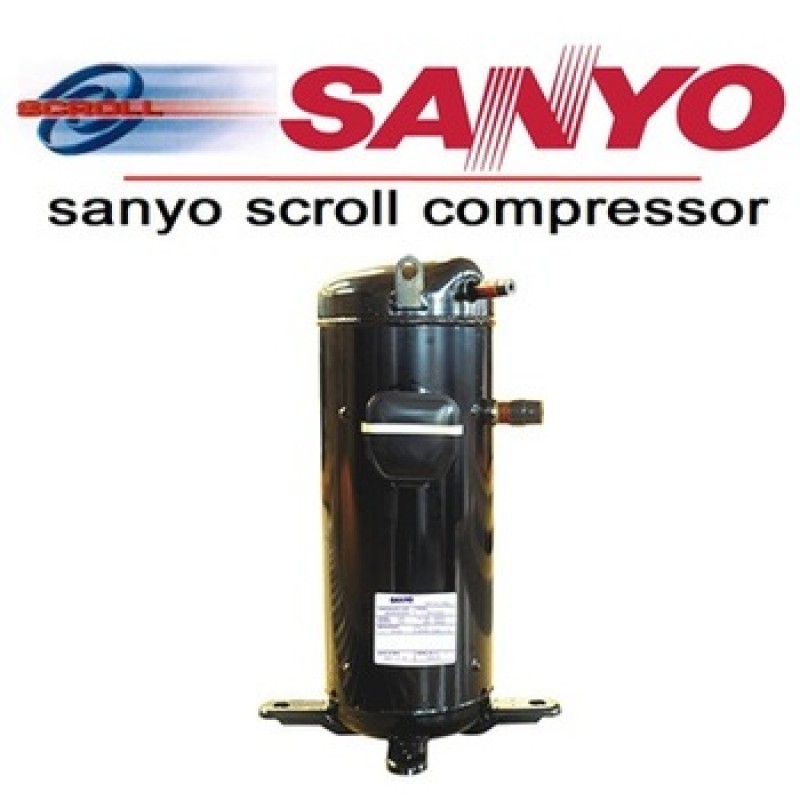

Compresor Sanyo model C-SBN263H8G/A (32700 BTU)

Did you notice an error?

DTN CODE

102.74.0000

PRODUCT CODE

C-SBN263H8G

C-SBN263H8A(G) SG

Offer request PDF

Compresor Sanyo-Panasonic pentru aparatele de aer conditionat, 32700 BTU, R407C, 380V

Compresor AC tip scroll pentru unitățile de climatizare trifazice de 9.58 kW.
Refrigeranți aprobați compresor clima C-SBN263H8G(A): R407C + R134A, R448A, R449A, R513A.
Tehnologie avansată și precizie a funcționării - aspect esențial în activitățile de service aer conditionat.
Aplicații: AC, chillere, frigotehnie comercială, AHU.
Pretabilitate deosebită în reparatii aer conditionat cu capacități apropiate de 32700 BTU.
Capacitate compresor aer conditionat: 55.7 cmc cilindree.
Conexiuni sudabile (ODF).
Tehnologie ON/OFF.

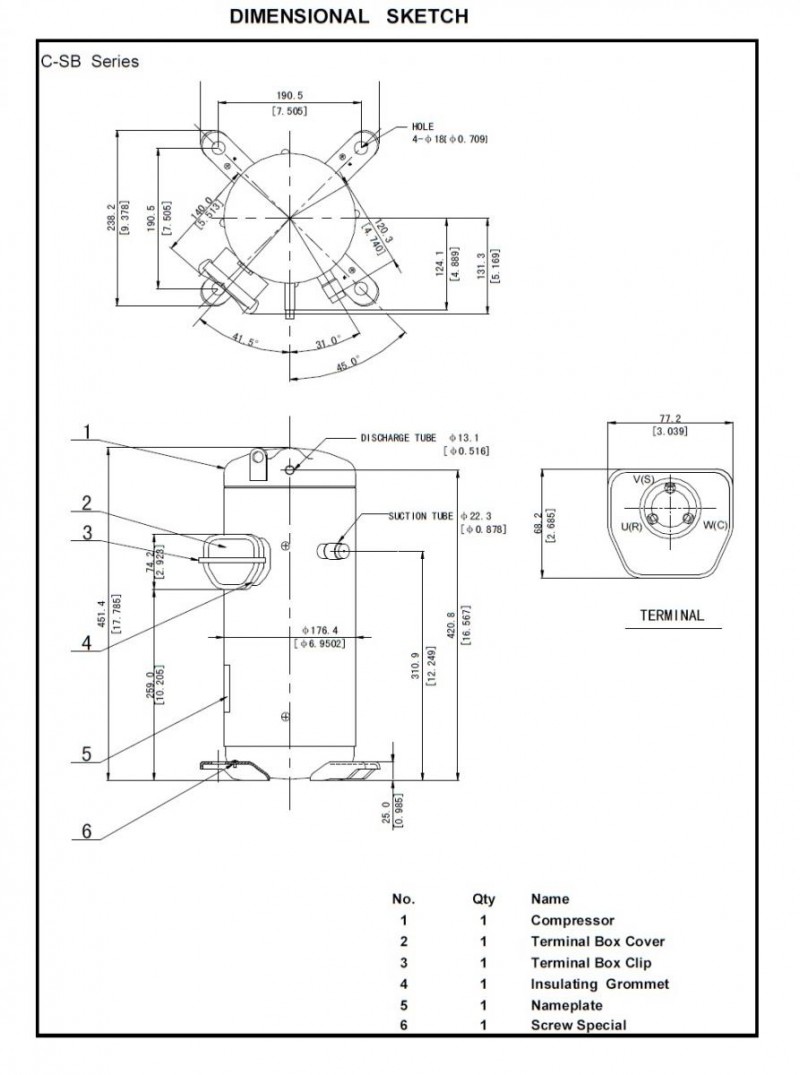

Înălțime maximă compresor scroll 32700 BTU: 451 mm.
Greutate C-SBN263H8G: 33.5 kg.

Specifications

Alimentare electrică 380-400/50/3 V/Hz/Ph
Capacitatea nominală 32700 BTU
Refrigerant R134a, R407C, R448A, R449A, R513A
Capacitate nominală 9.58 kW
Condensator de pornire - μF
Model scroll
Tehnologie motor ON-OFF

Comparative table

Compresoare clima Sanyo-Panasonic
Modele	Alimentare electrică (V/Hz/Ph)	Capacitatea nominală (BTU)	Refrigerant	Capacitate nominală (kW)	Model	Tehnologie motor
C-SBS120H15A	220-240/50/1	33080	R407C	9.69	scroll	ON-OFF
C-SBS145H15A	220-240/50/1	40240	R134a R407C R448A R449A R513A	11.79	scroll	ON-OFF
C-SBS165H15A	220-240/50/1	46000	R407C	13.48	scroll
C-SBS180H15A	220-240/50/1	49400	R134a R407C R448A R449A R513A	14.47	scroll	ON-OFF
C-SBS200H15H	220-240/50/1	55240	R407C	16.18	scroll	ON-OFF
C-SBS180H00B	380-400/50/3	64000	R134a R407C R448A R449A R513A	18.65	scroll	inverter
C-SBS235H38B	380-400/50/3	66500	R134a R407C R448A R449A R513A	19.5	scroll	ON-OFF
C-SBN263H8G	380-400/50/3	32700	R134a R407C R448A R449A R513A	9.58	scroll	ON-OFF
C-SBN303H8G	380-400/50/3	39000	R134a R407C R448A R449A R513A	11.60	scroll	ON-OFF
C-SBN353H8A	380-400/50/3	45700	R134a R407C R448A R449A R513A	13.39	scroll	ON-OFF
C-SBN373H8G	380-400/50/3	49450	R407C	14.49	scroll	ON-OFF
C-SBN453H8G	380-400/50/3	60000	R134a R407C R448A R449A R513A	17.58	scroll	ON-OFF
C-SCN603H8K	380-400/50/3	83550	R407C	24.48	scroll	ON-OFF
C-SCN753H8K	380-400/50/3	102000	R134a R407C R448A R449A R513A	29.89	scroll	ON-OFF
C-SCN903H8K	380-400/50/3	119000	R134a R407C R448A R449A R513A	34.87	scroll	ON-OFF
C-SBN263H38B	380-400/50/3	30180	R410A HI-COP MODEL	9.13	scroll	ON-OFF
C-SBN261H5A	220-240/50/1	33100	R134a R407C R448A R449A R513A	9.7	scroll	ON-OFF
C-SBP120H15A	220-240/50/1	33500	R410A	9.8	scroll	ON-OFF
C-SBP120H38B	380-400/50/3	34100	R410A HI-COP MODEL	10.0	scroll	ON-OFF
C-SBP140H38B	380-400/50/3	39900	R410A HI-COP MODEL	11.69	scroll	ON-OFF
C-SBP160H38B	380-400/50/3	45000	R410A HI-COP MODEL	13.18	scroll	ON-OFF
C-SBP170H38B	380-400/50/3	48700	R410A HI-COP MODEL	14.27	scroll	ON-OFF
C-SBP205H38B	380-400/50/3	57600	R410A HI-COP MODEL	16.88	scroll	ON-OFF
C-SBP235H38B	380-400/50/3	67900	R410A HI-COP MODEL	19.90	scroll	ON-OFF
C-SCP270H38B	380-400/50/3	76400	R410A HI-COP MODEL	22.39	scroll	ON-OFF
C-SCP315H38B	380-400/50/3	88660	R410A HI-COP MODEL	26.00	scroll	ON-OFF
C-SCP360H38B	380-400/50/3	101600	R410A HI-COP MODEL	29.77	scroll	ON-OFF
C-SCP400H38B	380-400/50/3	111850	R410A HI-COP MODEL	32.79	scroll	ON-OFF
C-SCP435H38B	380-400/50/3	129300	R410A HI-COP MODEL	37.89	scroll	ON-OFF
C-SCP510H38B	380-400/50/3	101600	R410A HI-COP MODEL	29.77	scroll	ON-OFF
C-SBN303H8H	380-400/50/3	33500	R410A	9.81	scroll	ON-OFF
C-SBN353H8H	380-400/50/3	44400	R410A	13.01	scroll	ON-OFF
C-SBN373H8H	380-400/50/3	48100	R410A	14.09	scroll	ON-OFF
C-SBN453H8H	380-400/50/3	56000	R410A	16.41	scroll	ON-OFF
C-SBN523H8H	380-400/50/3	65500	R410A	19.2	scroll	ON-OFF
