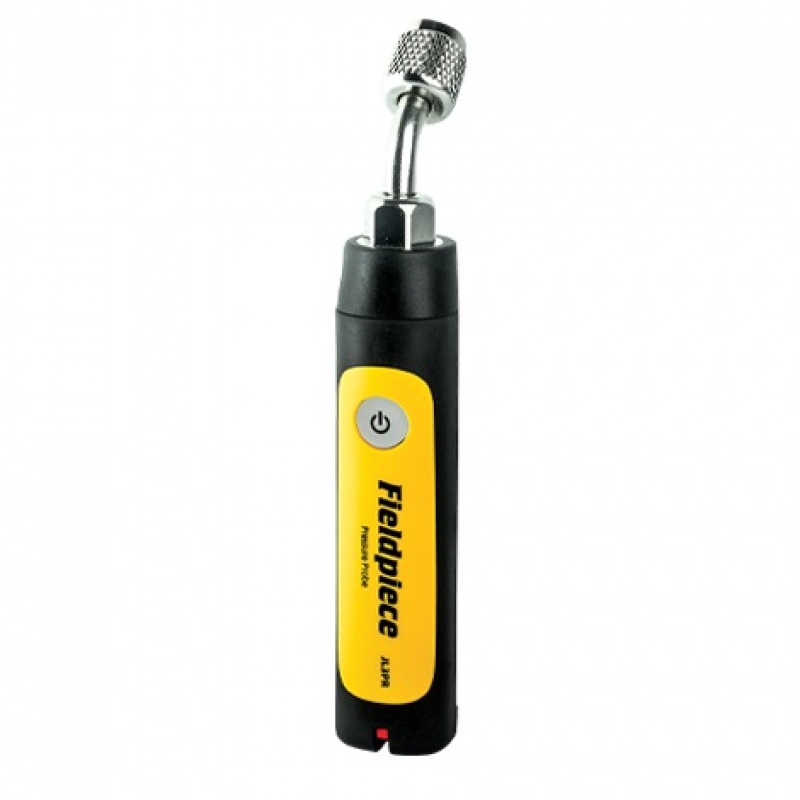

Fielpiece JL3PR (Job Link® System) Pressure Probe

Portable smart device for quick pressure measurement: 29” HgV ... 580 psig, 74 cmHgV ... 0 - 4000 kPa

• Identify system pressures almost anywhere, regardless of altitude!
• Powerful wireless range without a transmitter.

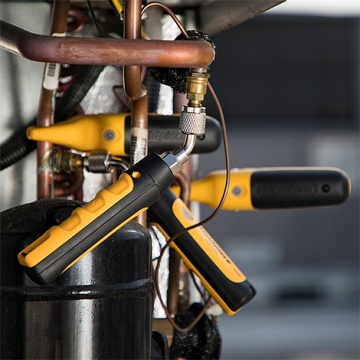

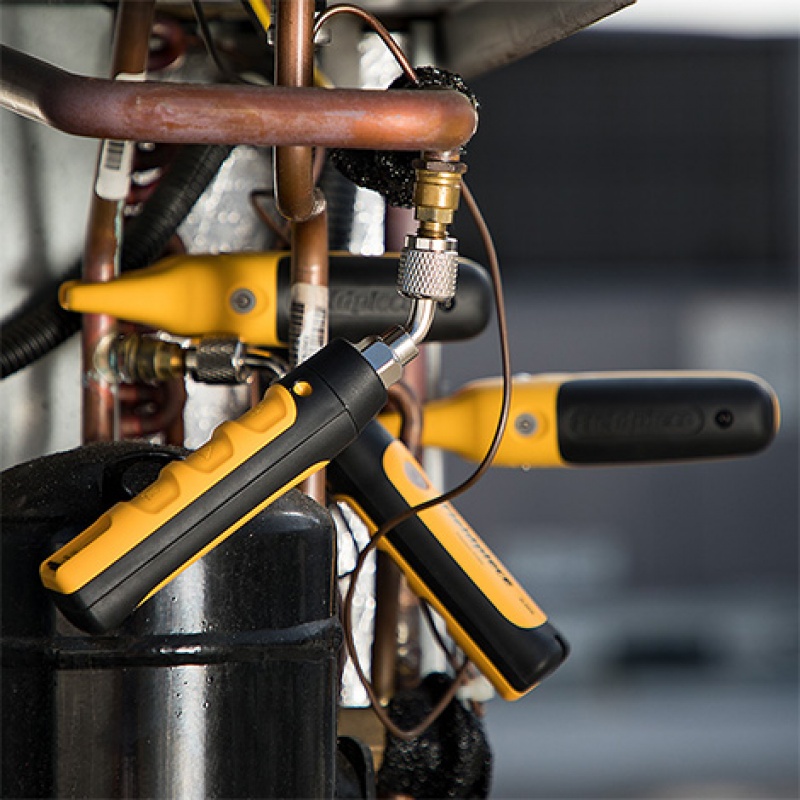

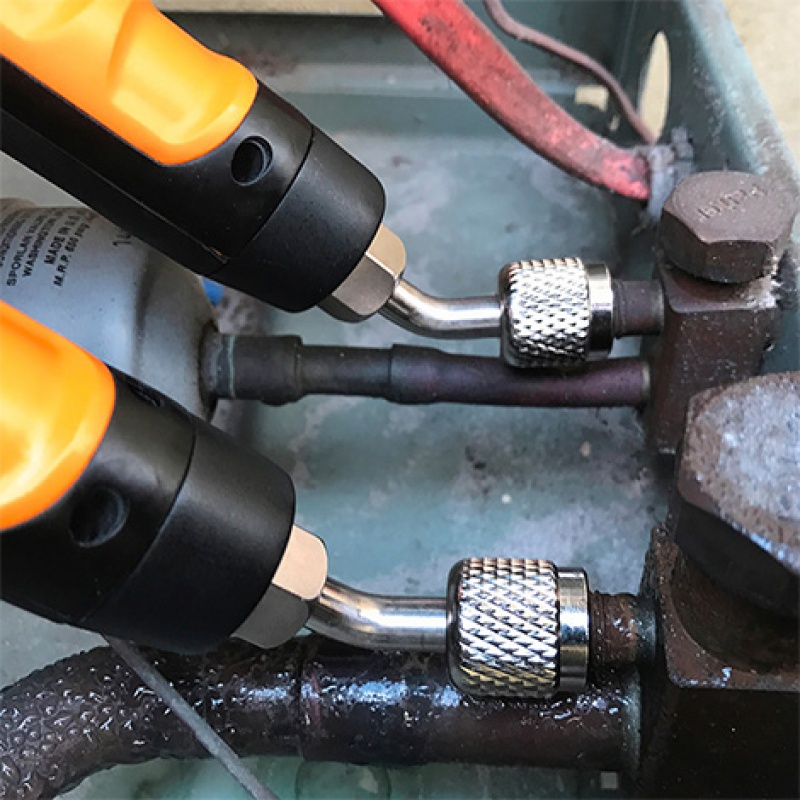

• Fielpiece JL3PR versatile pressure gauge with 45° angled fitting that connects easily in tight spaces.
• Excellent for critical load HVAC-R systems.
• Pressure sensor compatible with class A2L refrigerants.
• Ultra-water resistant (IP55).
• Compatible with the Job Link® Fieldpiece system.
• Minimum requirement: BLE 4.0 devices running iOS® 7.0 or Android™ 5.0.
• Connector Type: Standard 1/4″ NPT female flared (angled) fitting.
• Pressure measurement range: 29” HgV to 580 psig, 74 cmHgV to 0 ... 4000 kPa.
• Accuracy of Fieldpiece pressure measuring device:
  29” HgV to 0” HgV: ±0.2” HgV; 74 cmHgV to 0 cmHgV: ±1 cmHgV
  0 to 200 psig: ±1 psig; 0 to 1378 kPa: ±7 kPa
  200 to 580 psig: ±2 psig; 1378 to 4000 kPa: ±14 kPa
  OBS: Maximum overburden pressure: 800 psig (5500 kPa)
• Professional pressure sensor battery type: 2 x AAA, NEDA 24A, IEC LR03
• Wireless range: 305 meters without obstacles. Obstacles can minimize distance.
• Operating environment: -20°C to 50°C (<75% RH).
• Storage temperature: -20°C to 60°C, 0 to 80% RH (with batteries removed).
• Weight: 177 g.
