| Robineti | ||||
|---|---|---|---|---|
| Modele | Refrigerant | Descriere | Diametre (") (") | Culoare |
| Tecnosystemi 11132036 | R134a R404A R407C R22 | Intrare cu filet exterior, ieșire cu filet interior (inlet with outer thread, exit with inner thread) - 1/4" SAE M x 1/4" F SAE; mufă dreaptă (straight) | 1/4 → 1/4 | roșie (red) albastră (blue) galbenă (yellow) |

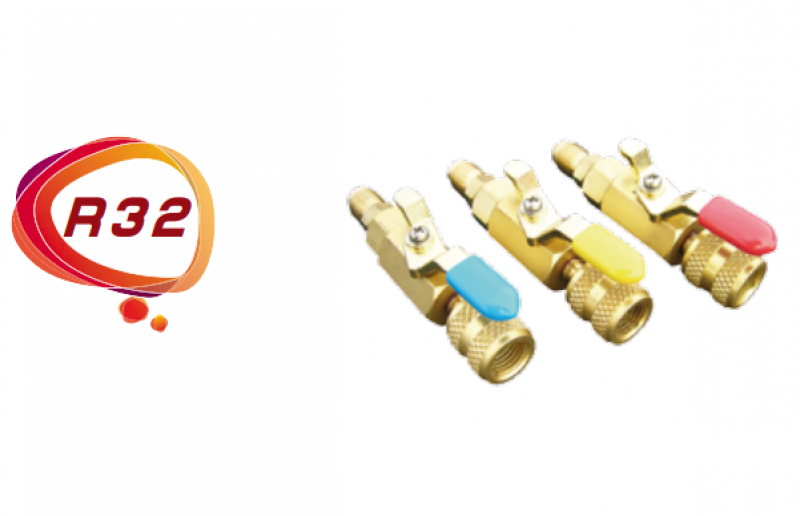

| Tecnosystemi 11132039 | R410A R32 | Intrare cu filet exterior, ieșire cu filet exterior (inlet with outer thread, exit with outer thread) - 5/16" SAE M x 5/16" F SAE; mufă dreaptă (straight) | 5/16 → 5/16 | roșie (red) albastră (blue) galbenă (yellow) |
| Tecnosystemi 11133026 | R407C R22 | 1/4 COMPRESSOR VALVE | 5/16 → 1/4 | albastră (blue) |
| Tecnosystemi 11133027 | R410A R32 | 5/16 COMPRESSOR VALVE | 5/16 → 5/16 | roz (pink) |
| Robinair RA BV 1/4 R | R134a R404A R407C R22 | filet exterior (outer thread) - 1/4" FFL x 1/4" MFL; mufă dreaptă (straight) | 1/4 → 1/4 | roșie (red) |
| Robinair RA BV 1/4 B | R134a R404A R407C R22 | filet exterior (outer thread) - 1/4" FFL x 1/4" MFL; mufă dreaptă (straight) | 1/4 → 1/4 | albastră (blue) |
| Robinair RA BV 1/4 Y | R134a R404A R407C R22 | filet exterior (outer thread) - 1/4" FFL x 1/4" MFL; mufă dreaptă (straight) | 1/4 → 1/4 | galbenă (yellow) |
| Refco A-38410 | Connector A: 5/16" SAE or 1/2"-20 UNF | Valve core depressor | Inside thread; Connector B: 1/4" SAE | Outside thread | Flare (Filetat) | 5/16 → 1/4 | roz (pink) | |
| Robinet R290/R600a | R290 R600 | Robinet butelie freon (cylinder valve) R290 & R600a SAE 1/4" M (tată) si NPT 7/16" F (mamă) | 1/4 → 7/16 | galbenă (yellow) |
| Robinet R600a | R600 | Robinet butelie freon (cylinder valve) R600a SAE 1/4" M (tată) si NPT 1/2" F (mamă) | 1/4 → 1/2 | verde (green) |
