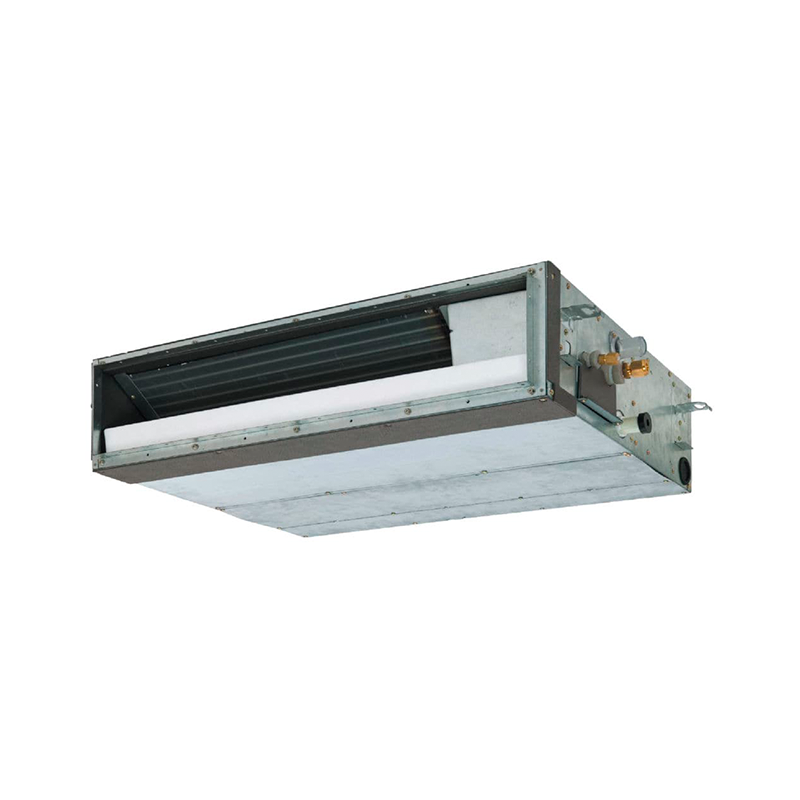

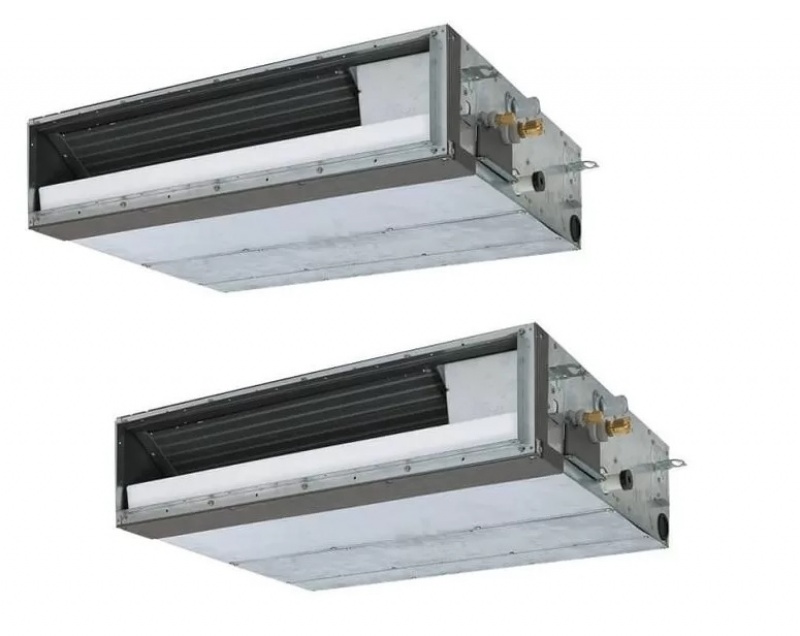

Unitati interioare AC duct | |||||||
---|---|---|---|---|---|---|---|
Modele | Ducted 10000 BTU | Ducted 13000 BTU | Ducted 16000 BTU | Ducted 22000 BTU | Ducted 24000 BTU | ||
Refrigerant | R410A R32 | R410A R32 | R410A R32 | R410A R32 | R410A R32 | ||
Alimentare electrică (V/Hz/Ph) | 220-240/50/1 | 220-240/50/1 | 220-240/50/1 | 220-240/50/1 | 220-240/50/1 | ||
BTU răcire (BTU) | 9200 | 12500 | 15500 | 20500 | 24500 | ||
BTU încălzire (BTU) | 13600 | 17100 | 18800 | 24000 | 28000 | ||
Capacitate de răcire (kW) | 2.7 | 3.7 | 4.5 | 6.0 | 7.1 | ||
Capacitate de încălzire (kW) | 4.0 | 5.0 | 5.5 | 7.0 | 8.1 | ||
Clasa de eficiență energetică C | A++ | A++ | A++ | A++ | A++ | ||
Clasa de eficiență economică H | A++ | A++ | A++ | A++ | A++ | ||
Debit aer (m³/h) | 570 | 610 | 780 | 1000 | 1060 | ||
Presiune sonoră (db(A)) | Răcire (cooling) | 27/35 | 27/37 | 24/35 | 32/38 | 33/39 | |
Încălzire (heating) | 27/35 | 27/37 | 24/35 | 32/38 | 33/39 | ||
Dimensiuni nete UI (WxDxH) (mm) | 700 x 450 x 210 | 700 x 450 x 210 | 900 x 450 x 210 | 1100 x 450 x 210 | 1100 x 450 x 210 | ||
Greutate netă UI (kg) | 16 | 16 | 19 | 22 | 22 | ||
Control | Remote Wired (optional) | Remote Wired (optional) | Remote Wired (optional) | Remote Wired (optional) | Remote Wired (optional) | ||
Compatibilitate unit. ext. |
