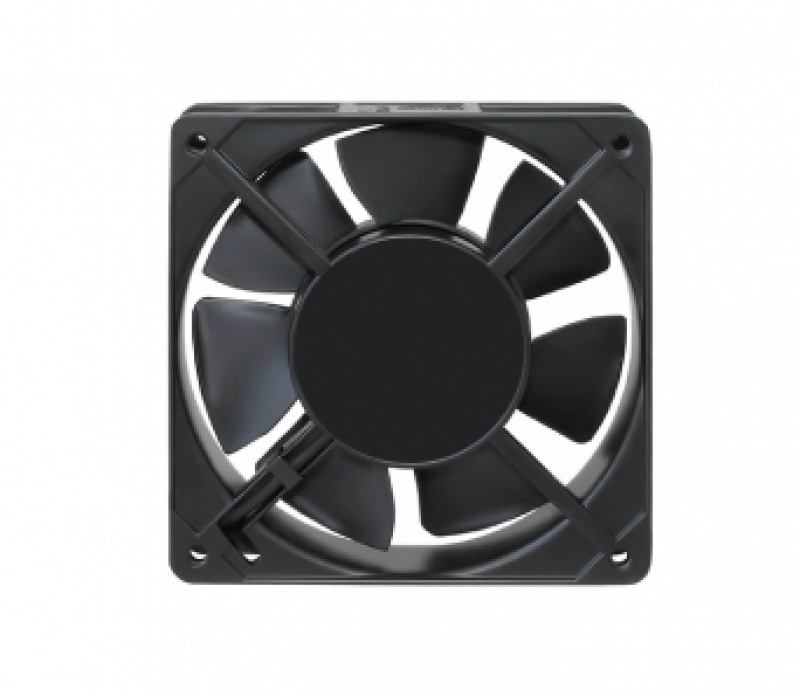

Cooler type fan, YJF-9238HB
WIND type cooler fan, 92 x 38 x 92 mm
- Axial cooler type fan used for cooling different smaller components of refrigeration units and electronic equipments.
- Weight 0,39 kg
- Power 13,0 W
- Dimensions (W x D x H) 92 x 38 x 92 mm
- Displacement 66 m³/h
- Revolutions per minute 2700 rpm
- Noise level 28,2 dBA
- Current 0,07 A
| Cooler type fans |
| Modele |
Power (W) | Dimensions (W x D x H) (mm) | Displacement (m³/h) | Revolutions per minute (rpm) | Noise level (dBA) |
| YJF-8038MB | 14,0 | 80 x 38 x 80 | 40 | 2200 | 23,4 |
| YJF-9238HB | 13,0 | 92 x 38 x 92 | 66 | 2700 | 28,2 |
| Tidal 120 x 120 x 25 mm | 14 | 120 x 25 x 120 | 108 | 2300 | 35,6 |
| YJF-12025LB | 17,4 | 120 x 26 x 120 | 83 | 1900 | 35,6 |
| YJF-12038HS | 17,1 | 120 x 38 x 120 | 150 | 2500 | 36,1 |
| YJF-12038HB | 18,0 | 120 x 38 x 120 | 115 | 2500 | 37,3 |
