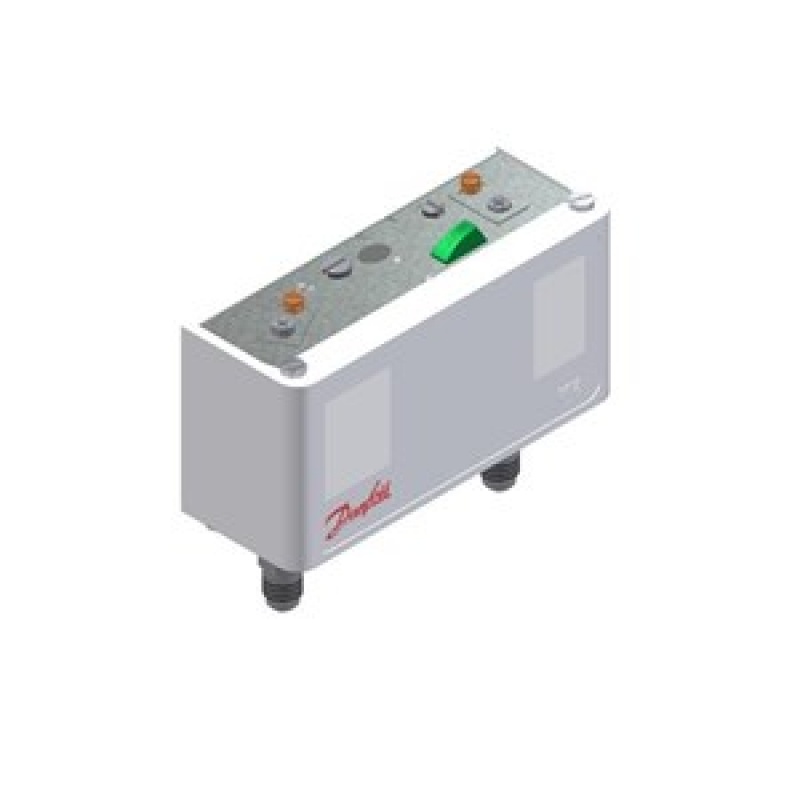

Danfoss dual KP7BS/060-120066 pressure switch

Solicită ofertă PDF

Dual low and high pressure press-control (LP / HP), 8 - 32 bar, manual reset

Dual compressor pressure switch to provide protection against very low suction pressure or too high discharge pressure.
It is also used to turn on and off compressors and fans attached to air-cooled condensers.
SPST contact system.
Dual pre-control with manual high pressure maximum reset.
∆p differential: 4 bar.
Weight: 0.7 kg.
Made in EU.

Danfoss dual pressure switches
Modele	Pressure type	Connection	Connections		Adjusting domain (bar)	Reset
Modele	Pressure type	Connection	inch	mm	Adjusting domain (bar)	Reset
KP7BS/060-120066	LP/HP	filetată (flare)	1/4	-	8 → 32	manual
KP15/060-125466	LP/HP	sudabilă (solder)	1/4	-	-0.2-7.5 → 8-32	auto
KP15/060-126466	LP/HP	filetată (flare)	1/4	-	-0.2-7.5 → 8-32	stânga (left side) auto dreapta (right side) manual
KP15/060-124166	LP/HP	filetată (flare)	1/4	-	-0.2-7.5 → 8-32	auto
KP17B/060-126866	LP/HP	filetată (flare)	1/4	-	-0.2-7.5 → 8-32	stânga (left side) auto dreapta (right side) manual
KP17B/060-127466	LP/HP	sudabilă (solder)	-	6	-0.2-7.5 → 8-32	stânga (left side) auto dreapta (right side) manual
KP17W/060-127566	LP/HP	filetată (flare)	1/4	-	-0.2-7.5 → 8-32	auto
KP17W/060-127666	LP/HP	sudabilă (solder)	-	6	-0,2-7,5 → 8-32	auto
KP17WB/060-539766	LP/HP	filetată (flare)	1/4	-	-0,2-7,5 → 8-32	selectabil (selectable)
