Embraco condensing unit UNT 6220 GK (R404A)

Unitate de condensare Embraco

agregat frigorific Embraco UNT 6220 GK

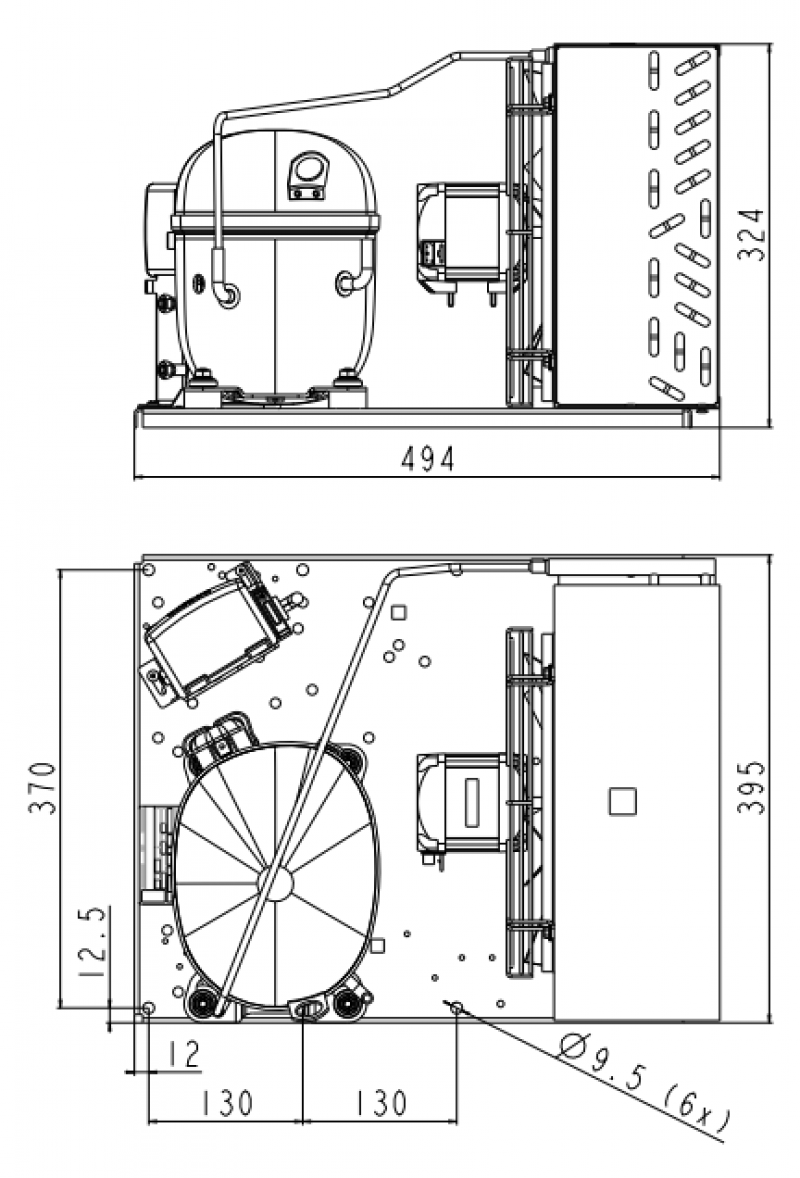

Embraco condensing unit sketch

Ai observat o eroare?

COD DTN

121.25.1270

COD PRODUS

UNT6220GK

602BN5604AA

Solicită ofertă PDF

Embraco UNT6220GK condensing unit, refrigeration (MBP/HBP), 14.5 cmc, 1262 W, R404A/R507A

Embraco Aspera condensing unit with medium and positive temperature applications - refrigeration.
Refrigerating capacity UNT6220GK refrigeration unit: 1262 W at -10°C.
14.5 cmc cylinder capacity.
Applications: refrigerated showcase unit or refrigerating room unit with single-phase power supply.
Low noise, compact dimensions, outstanding reliability, low vibrations!
UNT6220GK with high energy efficiency.
Also tested at tropical temperatures up to 43°C.

Specificații

Power supply 220-240/50/1 V/Hz/Ph
Application MBP, HBP
Refrigerant R404A, R507A
Weight 35,1 kg
Displacement 14,50 cm³
Maximum current 5,85 A
Oil quantity 2,3 l
Connections
- asp. (suction) : 1/2
- ref. (discharge) : 3/8
Cooling capacity [W] / Evapor. temp. [°C]
- -20°C : 793 W
- -15°C : 1024 W
- -10°C : 1262 W
- -5°C : 1506 W
- 0°C : 1754 W
- 7,2°C : 2124 W
- 10°C : 2268 W
Power input* 195 W

Notes:

*-23,3°C rated point

Tabel comparativ

Embraco MBP (R404A)
Modele	Power supply (V/Hz/Ph)	Application	Displacement (cm³)	Connections		Cooling capacity [W] / Evapor. temp. [°C] (W)							Power input* (W)
Modele	Power supply (V/Hz/Ph)	Application	Displacement (cm³)	ref. (discharge)	asp. (suction)	-20°C	-15°C	-10°C	-5°C	0°C	7,2°C	10°C	Power input* (W)
UNEK6144GK	220-240/50/1	MBP HBP	4.52	1/4	3/8	240	298	359	423	490	600	640	380
UNEK6165GK	220-240/50/1	MBP HBP	6.20	1/4	3/8	382	429	504	588	660	805	867	471
UNEK6181GK	220-240/50/1	MBP HBP	7.28	1/4	3/8	427	530	644	767	900	1252	1130	620
UNEK6210GK	220-240/50/1	MBP HBP	8.78	1/4	3/8	581	670	665	886	1032	1302	1428	628
UNEK6213GK	220-240/50/1	MBP HBP	12.12	1/4	3/8	734	904	1064	1213	1352	1531	1787	1074
UNEK6217GK	220-240/50/1	MBP HBP	14.30	3/8	1/2	741	960	1180	1406	1640	1985	2058	1136
UNT6217GK	220-240/50/1	MBP HBP	12.55	3/8	1/2	748	955	1144	1398	1635	1994	2137	-
UNT6220GK	220-240/50/1	MBP HBP	14,50	3/8	1/2	793	1024	1262	1506	1754	2124	2268	195
UNT6222GK	220-240/50/1	MBP HBP	17.40	3/8	1/2	1105	1370	1636	1899	2162	2540	2686	-
UNT6226GK	220-240/50/1	MBP HBP	22.40	3/8	1/2	1266	1568	1878	2198	2526	3016	3210	1500
UNJ9226GK	380-400/50/3	MBP HBP	21.70	3/8	5/8	1215	1537	1873	2223	2588	3141	3360	1403
UNJ9226GS	220-240/50/1	MBP HBP	21.70	3/8	5/8	1215	1537	1873	2223	2588	3141	3360	1403
UNJ9232GK	220-240/50/1	MBP HBP	26.10	1/2	5/8	1412	1764	2124	2512	2898	3474	3696	1728
UNJ9232GS	380-400/50/3	MBP HBP	26.10	1/2	5/8	1467	1855	2219	2550	2879	3365	3448	1685
UNJ9238GK	220-240/50/1	MBP HBP	32.70	1/2	5/8	1748	2147	2560	3157	3434	4104	4372	2321
UNJ9238GS	380-400/50/3	MBP HBP	32.70	5/8	1/2	1872	2268	2685	3134	3638	4419	4737	2332
