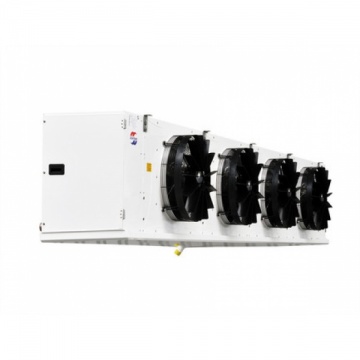

Güntner GACC RX 040.1/4-70.A-1820870 evaporator

Did you notice an error?

DTN CODE

161.34.2285

PRODUCT CODE

RX 040.1/4-70.A-1820870

Offer request PDF

Ceiling type evaporator, with 7 mm fin spacing

Ceiling cubic type evaporator for cold rooms (low temperatures).
HACCP hygiene certificate.
Electric defrost.
Corrosion-resistant alluminium alloy (AlMg) casing.

Specifications

Weight 141,0 kg
Power supply 380-400/50/3 V/Hz/Ph
Dimensions (L x W x H) 3046 x 560 x 565 mm
Fan no. 4
Fin spacing 7 mm
Air flow of evaporator 12240 m³/h
Nominal capacity SC2* 22,28 kW
Nominal capacity SC3* 18,21 kW
Motor techn. AC
Volum intern (l) 26,24
Application LBP

Notes:

*SC2 = standard condition DT1 = 8K, t̥ = -8°C

*SC3 = standard condition DT1 = 7K, t̥ = -25°C

Comparative table

Cubic evaporators (7 mm fin spacing)
Modele	Power supply (V/Hz/Ph)	Fan no.	Air flow of evaporator (m³/h)	Nominal capacity SC2* (kW)	Nominal capacity SC3* (kW)	Volum intern (l)
RX 031.1/1-70.A-1820863	220-240/50/1	1	1580	2,36	1,90	3,25
RX 031.1/1-70.A-1820864	220-240/50/1	1	1660	1,71	1,31	2,11
RX 031.1/1-70.A-1820865	220-240/50/1	1	1510	2,85	2,24	4,29
RX 031.1/2-70.A-1820845	220-240/50/1	2	3020	5,72	4,54	7,63
RX 031.1/2-70.A-1820849	220-240/50/1	2	3160	4,75	3,72	5,70
RX 031.1/2-70.A-1820880	220-240/50/1	2	3320	3,44	2,65	3,84
RX 031.1/3-70.A-1820860	220-240/50/1 380-400/50/3	3	4530	8,59	6,94	11,19
RX 031.1/3-70.A-1820866	220-240/50/1 380-400/50/3	3	4740	7,16	5,49	8,21
RX 031.1/4-70.A-1820841	220-240/50/1 380-400/50/3	4	6320	9,53	7,48	10,78
RX 031.1/4-70.A-1820874	220-240/50/1 380-400/50/3	4	6040	11,47	9,12	14,44
RX 040.1/1-70.A-1820854	220-240/50/1	1	3400	3,31	2,56	3,75
RX 040.1/1-70.A-1820878	220-240/50/1	1	3060	5,56	4,50	7.58 (modele noi: 6.9)
RX 040.1/1-70.A-1820883	220-240/50/1	1	3220	4,60	3,76	5,79
RX 040.1/2-70.A-1820837	380-400/50/3	2	6120	11,13	9,04	13,82
RX 040.1/2-70.A-1820879	220-240/50/1 380-400/50/3	2	6440	9,21	7,25	10,30
RX 040.1/3-70.A-1820859	380-400/50/3	3	9180	16,76	13,03	19,83
RX 040.1/3-70.A-1820876	380-400/50/3	3	9660	13,81	11,01	15,06
RX 040.1/4-70.A-1820870	380-400/50/3	4	12240	22,28	18,21	26,24
RX 040.1/4-70.A-1820871	380-400/50/3	4	12880	18,39	14,79	19,97
RX 050.1/2-70.A-1820840	380-400/50/3	2	13040	27,00	21,92	34,44
RX 050.1/2-70.A-1820867	380-400/50/3	2	13360	23,70	18,39	27,86
RX 050.1/2-70.A-1820877	380-400/50/3	2	13700	19,24	15,34	21,32
RX 050.1/3-70.A-1820838	380-400/50/3	3	20040	35,46	28,56	40,79
RX 050.1/3-70.A-1820858	380-400/50/3	3	19560	40,49	31,25	49,69
RX 050.1/4-70.A-1820855	380-400/50/3	4	26080	52,08	37,41	65,05
RX 050.1/4-70.A-1820884	380-400/50/3	4	26720	47,48	36,92	53,16
