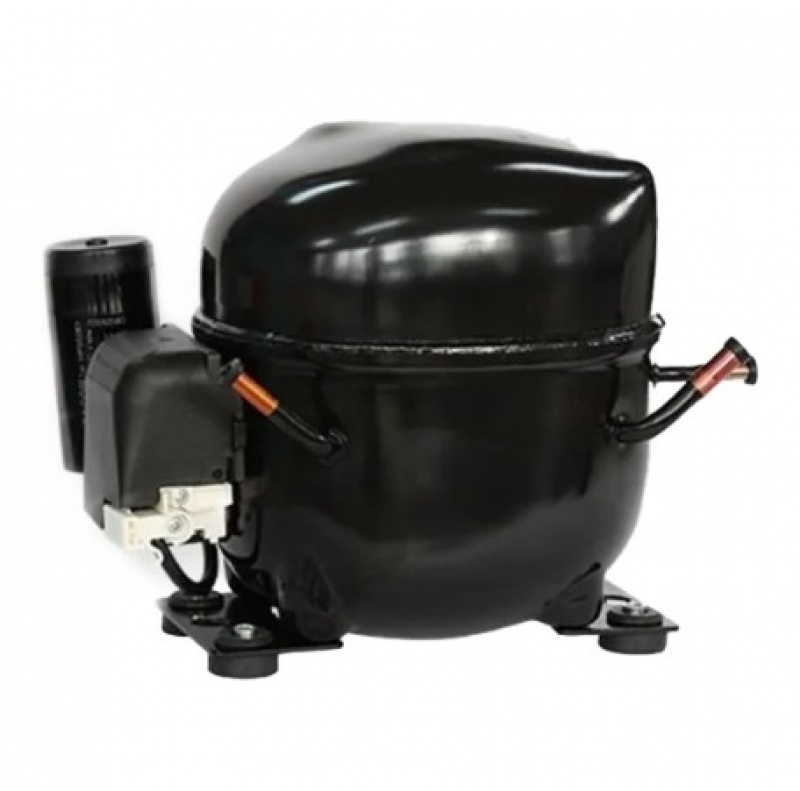

Hermetic compressor Embraco NE 2121Z
Aspera NE 2121 Z with LBP range, R 134a
- Model designed for low temperatures.
- Volume suitable for medium units.
- Made in Europe.
- It stands out for its increased reliability.
- To be installed only by authorized personnel.
- Power supply 220-240/50/1 V/Hz/Ph
- Application LBP
- Refrigerant R134a
- Displacement 9.3 cm³
- Weight 11 kg
- Height 206 mm
- Cooling capacity [W] / Evapor. temp. [°C] (Condensing temp. 45°C)
- -30°C : 166 W
- -25°C : 220 W
- -20°C : 288 W
- -15°C : 370 W
- -10°C : 464 W
- -5°C : 572 W
- Capacity (rated point ASHRAE -23,3°C) 253 W
- Electrical capacity (rated point -23,3°C) 204 W
- Current (-23,3°C point of reference) 1,4 A
- Cooling capacity [W] / Evapor. temp. [°C] (Condensing temp. 55°C)
- -30°C : - W
- -25°C : 186 W
- -20°C : 246 W
- -15°C : 319 W
- -10°C : 403 W
- -5°C : 500 W
| Embraco LBP (R134a) |
| Modele |
Power supply (V/Hz/Ph) | Application | Displacement (cm³) | Weight (kg) | Height (mm) | Cooling capacity [W] / Evapor. temp. [°C] (Condensing temp. 45°C) (W) | Capacity (rated point ASHRAE -23,3°C) (W) | Electrical capacity (rated point -23,3°C) (W) | Current (-23,3°C point of reference) (A) | Cooling capacity [W] / Evapor. temp. [°C] (Condensing temp. 55°C) (W) |
| -30°C | -25°C | -20°C | -15°C | -10°C | -5°C | -30°C | -25°C | -20°C | -15°C | -10°C | -5°C |
| EMY3109Z | 220-240/50/1 | LBP | 4.0 | 7.3 | 166 | - | - | - | - | - | - | 105 | - | - | - | - | - | - | - | - |
| EMY3111Z | 220-240/50/1 | LBP | 4.5 | 7.5 | 171 | 90 | 123 | 165 | 216 | 275 | 343 | 129 | - | - | 81 | 113 | 153 | 202 | 260 | 325 |
| EMY3115Z | 220-240/50/1 | LBP | 6.1 | 7.8 | 171 | - | - | - | - | - | - | 163/171 | - | - | - | - | - | - | - | - |
| NEK2116Z | 220-240/50/1 | LBP | 7.4 | 10.2 | 187 | 121 | 166 | 221 | 284 | 357 | 436 | 187 | - | - | - | 136 | 184 | 241 | 305 | 378 |
| NE2121Z | 220-240/50/1 | LBP | 9.3 | 11 | 206 | 166 | 220 | 288 | 370 | 464 | 572 | 253 | 204 | 1,4 | - | 186 | 246 | 319 | 403 | 500 |
| NE2130Z | 220-240/50/1 | LBP | 12.1 | 11 | 200 | 227 | 298 | 386 | 491 | 613 | 753 | 343 | 260 | 2,1 | - | 255 | 332 | 426 | 536 | 660 |
| NE2134Z | 220-240/50/1 | LBP | 12.1 | 11.5 | 206 | 234 | 313 | 410 | 526 | 662 | 822 | 359 | 291 | 2,3 | - | 267 | 351 | 453 | 571 | 711 |
