Compressor Tecumseh FH2480Z (R404A)

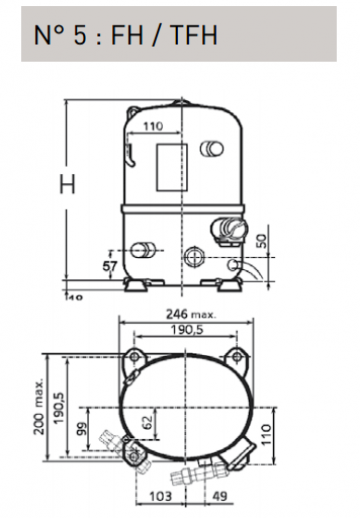

Compresor FH2480ZFH2480Z schema tehnică (technical drawings)
qr Ai observat o eroare?

COD DTN

  • 101.54.1045

COD PRODUS

Solicită ofertă PDF

Tecumseh L'Unite FH 2480Z single phase motor, low temperatures (LBP), R404A/R507

  • Model replacing phase with FH2480Z-XC model.
  • Compressor refrigerated display case and refrigerated chamber aggregates - negative temperatures (freezing).
  • Professional piston compressor FH2480Z that stands out in the Tecumseh range with compact dimensions, easy installation, quietness, low energy consumption and reliability proven by all standards and laboratory tests.
  • Hermetic Tecumseh motor now supplied to installers in Romania, intended for commercial cold.
  • Single-phase piston compressor, 230V.

Specificații

  • Power supply 220-240/50/1 V/Hz/Ph
  • Application LBP
  • Refrigerant R404A
  • Displacement 53,2 cm³
  • Oil volume 1625 cm³
  • Connection (suction) 5/8 "
  • Connection (discharge) 1/2 "
  • Maximum current 16,0 A
  • Cooling capacity (W)/Evaporating temp. (°C)
    • -40°C : W
    • -35°C : 1125 W
    • -30°C : 1587 W
    • -23,3°C : 2303 W
    • -20°C : 2701 W
    • -15°C : 3364 W
    • -10°C : 4105 W
Notes:
EN13215 RTG 20°C

Tabel comparativ

L'Unite (LBP, R404A/R507)
Modele Power supply (V/Hz/Ph)ApplicationDisplacement (cm³)Cooling capacity (W)/Evaporating temp. (°C) (W)
-40°C-35°C-30°C-23,3°C-20°C-15°C-10°C
AE2410Z220-240/50/1LBP5.0279120168220291368456
AEZ2415Z220-240/50/1LBP8,1185254369436551685
AE1420Z-FZ220-240/50/1LBP9.35216248279321343379419
AE2420Z-FZ220-240/50/1LBP9.35175246332494,5555695858
CAE2417Z220-240/50/1LBP11,3216319485579738920
CAE2420Z220-240/50/1LBP12,63124145816778381018
CAE2424Z220-240/50/1LBP15,13134326347549631208
CAJ2428Z220-240/50/1LBP15.22023064345117739911246
CAJ2432Z220-240/50/1LBP18,337253380095612261541
AJ2432P-FZ220-240/50/1LBP18.325939155275098112571577
CAJ2440Z220-240/50/1LBP21,0463647955113514461807
AJ2440P-FZ220-240/50/1LBP21.0410489571655742834931
CAJ2446Z220-240/50/1LBP26,25978211186139717592176
AJ2446P-FZ220-240/50/1LBP26.26629081200153519252373
TAJ2446Z380-400/50/3LBP26,25978211189139717592176
CAJ2464Z220-240/50/1LBP34,582011081579185023172855
AJ2464P-FZ220-240/50/1LBP34.587511791757197124723052
TAJ2464Z380-400/50/3LBP34,582011081579185023172855
FH2480Z220-240/50/1LBP53,2112515872303270133644105
FH2480Z-XC220-240/50/1LBP54.3817128118472531334543035419
FH2480Z-XG380-400/50/3LBP54.3759119017162351310739985035
FH2511Z-XC220-240/50/1LBP74.21178184526594223480761817782
FH2511Z-XG380-400/50/3LBP68.01065167124103301431256127068
TAG2516Z380-400/50/3LBP112,5234131494623551270618851
TAG2522Z380-400/50/3LBP134,83187412758556903873310853
AG2522P-TZ380-400/50/3LBP13518072726385053006849879111074
