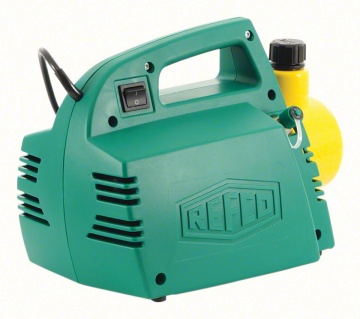

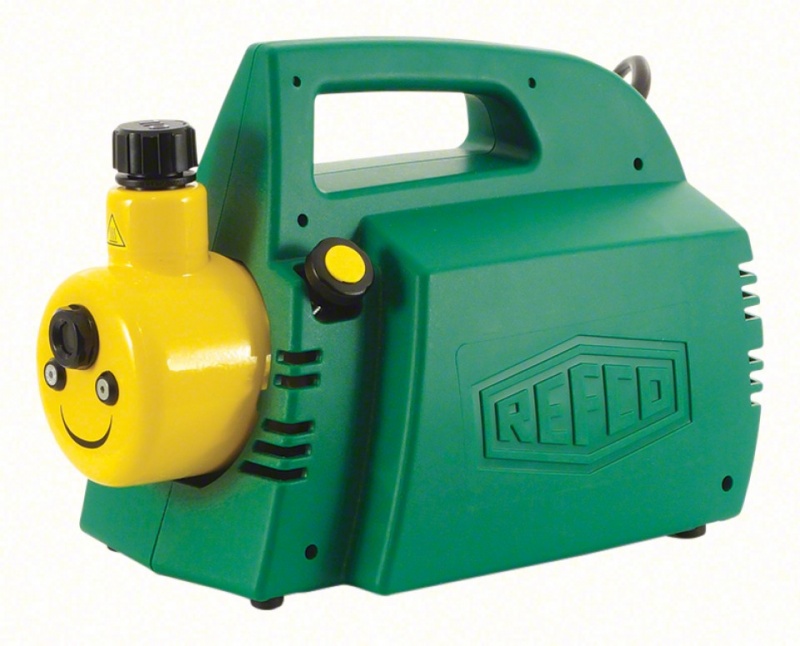

Refco vacuum pump, RL-2 (35 l/min)

Pompă de vid Refco, model RL-2Pompă de vid Refco, model RL-2
qr Ai observat o eroare?

COD DTN

  • 501.46.1000

COD PRODUS

Solicită ofertă PDF

The most compact and lightest in the Refco range

  • Two-stage rotary vane pump.
  • Internal oil pump with unique feature,
  • Sight glass for easy viewing of the oil level,
  • Gas balast valve.
  • Recommended oil change every 20 working hours.
  • Swiss quality production.

Specificații

  • Observations Motor: 0,16 kW (1/5 HP)/2400 rpm. Conexiune (connection): 1/4" SAE. Capacitate ulei (oil capacity): 125 ml. Inclus (included): DV-44 (1/4 l).
  • Free air displacement 35 l/min
  • Motor type două trepte (dual stage)
  • Dimensions (W x D x H) 166 x 271 x 195 mm
  • Weight 3.8 kg
  • Power supply 220-240/50/1 V/Hz/Ph
  • Connection filetată (flare)

Tabel comparativ

Refco vacuum pumps
Modele ObservationsFree air displacement (l/min)Motor typeDimensions (W x D x H) (mm)Weight (kg)Power supply (V/Hz/Ph)Connection
RL-2 (35 l/min)Motor: 0,16 kW (1/5 HP)/2400 rpm. Conexiune (connection): 1/4" SAE. Capacitate ulei (oil capacity): 125 ml. Inclus (included): DV-44 (1/4 l).35două trepte (dual stage)166 x 271 x 1953.8220-240/50/1filetată (flare)
RL-4 (65 l/min)Motor: 0,19 kW (1/4 HP)/2400 rpm. Conexiune (connection): 1/4" SAE + 3/8" SAE . Capacitate ulei (oil capacity): 250 ml. Inclus (included): DV-44 (1/4 l).65două trepte (dual stage)152 x 301 x 2045.65220-240/50/1filetată (flare)
RL-8 (150 l/min)Motor: 0,37 kW (1/2 HP)/2800 rpm. Conexiune (connection): 1/4" SAE + 3/8" SAE . Capacitate ulei (oil capacity): 500 ml. Inclus (included): DV-45 (1/2 l).150două trepte (dual stage)220 x 360 x 25011.8220-240/50/1filetată (flare)
