Sanhua ball valve, SBV(M)-JA19YHSY-1-S (64 mm)

Robinet cu bilă Sanhua
qr Ai observat o eroare?

COD PRODUS

Solicită ofertă PDF

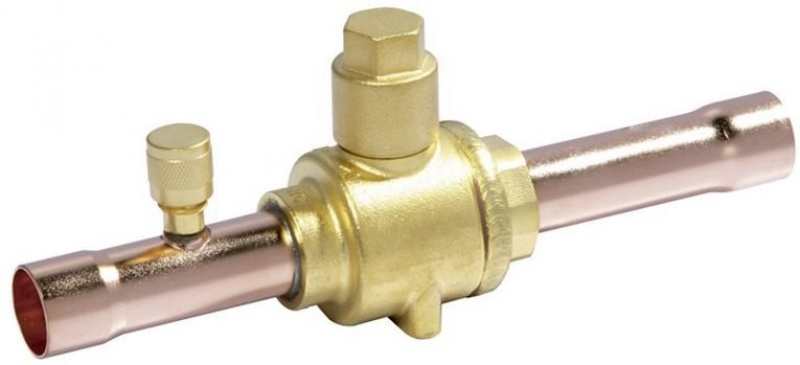

Bi-flow ball valve with access fitting, straightway type - SBV range

  • Applicable for commercial air conditioner, freezing or deep-freezing equipment or other refrigeration circuits.
  • It can also be used as service valve for vacuum pumping and refrigerant injection.
  • Bidirectional flow.
  • Applicable for all common HCFC and HFC refrigerants such as: R22, R134a, R404A, R407C, R410A, R507A etc.

Specificații

  • Equal connections (") - "
  • Equal connection (mm) 64 mm
  • Inlet x out. connections
    • inch : -
    • mm : 64 x 64
  • Kv 225,00

Tabel comparativ

Sanua ball valves
Modele Inlet x out. connectionsKv
inchmm
SBV(M)-JA2YHSY-2-S (6 mm)-6 x 61,90
SBV(M)-JA2YHSY-1-S (1/4")1/4 x 1/4-1,90
SBV(M)-JA3YHSY-2-S (3/8")3/8 x 3/8-5,50
SBV(M)-JA3YHSY-1-S (10 mm)-10 x 105,50
SBV(M)-JA4YHSY-2-S (12 mm)-12 x 1210,20
SBV(M)-JA4YHSY-1-S (1/2")1/2 x 1/2-10,20
SBV(M)-JA5YHSY-2-S (15 mm)-15 x 1513,20
SBV(M)-JA5YHSY-1-S (5/8")5/8 x 5/8-13,80
SBV(M)-JA5YHSY-1-S (16 mm)-16 x 1613,80
SBV(M)-JA6YHSY-2-S (18 mm)-18 x 1819,50
SBV(M)-JA6YHSY-1-S (3/4")3/4 x 3/4-19,50
SBV(M)-JA7YHSY-1-S (7/8")7/8 x 7/8-28,00
SBV(M)-JA7YHSY-1-S (22 mm)-22 x 2228,00
SBV(M)-JA9YHSY-2-S (28 mm)-28 x 2851,50
SBV(M)-JA9YHSY-1-S (1-1/8")1-1/8 x 1-1/8-51,50
SBV(M)-JA11YHSY-1-S (1-3/8")1-3/8 x 1-3/8-80,00
SBV(M)-JA11YHSY-1-S (35 mm)-35 x 3580,00
SBV(M)-JA13YHSY-2-S (1-5/8")1-5/8 x 1-5/8-119,80
SBV(M)-JA13YHSY-1-S (42 mm)-42 x 42119,80
SBV(M)-JA17YHSY-1-S (2-1/8")2-1/8 x 2-1/8-225,00
SBV(M)-JA17YHSY-1-S (54 mm)-54 x 54225,00
SBV(M)-JA19YHSY-1-S (64 mm)-64 x 64225,00
SBV(M)-JA21YHSY-2-S (2-5/8")2-5/8 x 2-5/8-305,00
SBV(M)-JA25YHSY-2-S (3-1/8")3-1/8 x 3-1/8-635,00
SBV(M)-JA25YHSY-2-S (80 mm)-80 x 80635,00
SBV(M)-JA29YHSY-1-S (3-5/8")3-5/8 x 3-5/8-805,00
SBV(M)-JA29YHSY-1-S (92 mm)-92 x 92805,00
SBV(M)-JA33YHSY-2-S (4-1/8")4-1/8 x 4-1/8-950,00
SBV(M)-JA33YHSY-2-S (105 mm)-105 x 105950,00
SBV(M)-JA34YHSY-1-S (4-1/4")4-1/4 x 4-1/4-950,00
SBV(M)-JA34YHSY-1-S (108 mm)-108 x 108950,00
