A flat panel specifically designed for moving walls, prefabricated cubicles, cold rooms, exhibition stands, sliding doors and false ceilings.
It is the ideal component for designs requiring lightness, solidity and insulation.

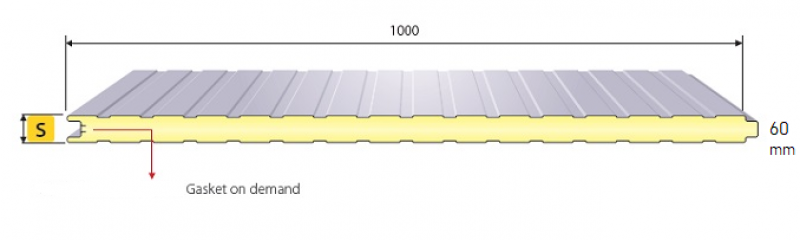

It is a range of self-supporting metal panels insulated in micro-ribbed polyurethane with male/female joints designed for facades and dividing walls. When mounting, the paintwork must be correctly orientated, with the side marked “INTERNAL” facing inward.
| Cold rooms panels | |||||
|---|---|---|---|---|---|
| Modele | Observations | Thickness (mm) | Panel weight (kg/m2) | Insulating capacity (K[W/m2K]) | Average density (kg/m3) |
| SP 60 BG (60 mm) | Panelul standard nefeliat este de (standard dimensions): 13,2 m x 1 m. Izolație (insulating): PUR3. Suprafața exterioară (external surface): oțel (steel) EN10346/inox EN10088; aluminiu (aluminium) EN485 | 60 | 12.47 | 0.37 | 40 |
| SP 100 BG (100 mm) | Panelul standard nefeliat este de (standard dimensions): 13,2 m x 1 m. Izolație (insulating): PUR3. Suprafața exterioară (external surface): oțel (steel) EN10346/inox EN10088; aluminiu (aluminium) EN485 | 100 | 14.07 | 0.22 | 40 |
