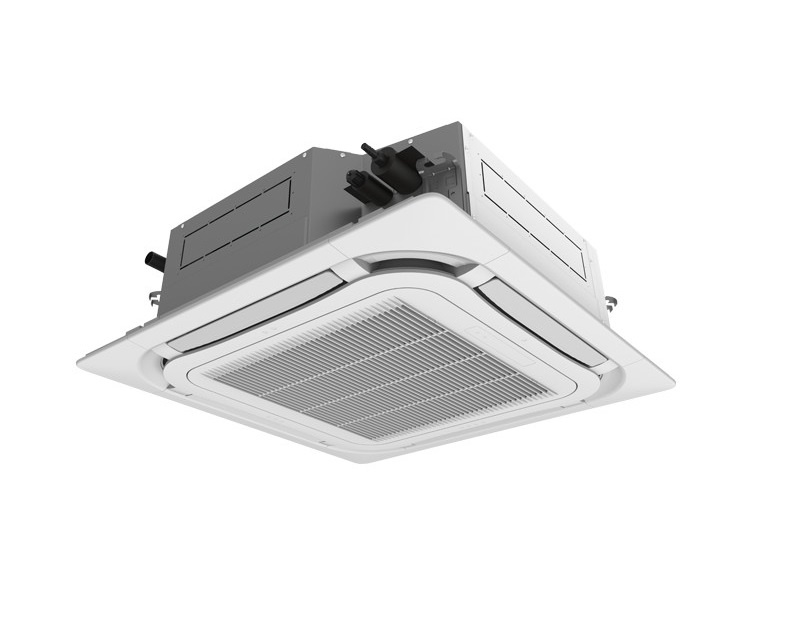

| Standard Cassette Gree GMV indoor units | ||||||
|---|---|---|---|---|---|---|
| Modele | GMV-ND63T/C-T (22000 BTU) | GMV-ND71T/C-T (24000 BTU) | GMV-ND90T/C-T (32000 BTU) | GMV-ND112T/C-T (38000 BTU) | GMV-ND140T/C-T (48000 BTU) | |
| Power supply (V/Hz/Ph) | 220-240/50/1 | 220-240/50/1 | 220-240/50/1 | 220-240/50/1 | 220-240/50/1 | |
| BTU cooling (BTU) | 21500 | 24000 | 24000 | 38000 | 48000 | |
| BTU heating (BTU) | 24000 | 27000 | 27000 | 42000 | 54500 | |
| Cooling capacity (kW) | 6.3 | 7.1 | 7.1 | 11.2 | 14.0 | |
| Heating capacity (kW) | 7.1 | 8.0 | 8.0 | 12.5 | 16.0 | |
| Air flow volume (M) (m³/h) | 950 | 950 | 950 | 1300 | 1300 | |
| Sound pressure level IDU (M) (db(A)) | 34 | 34 | 34 | 41 | 41 | |
| Piping connection liquid (mm) | 9.52 | 9.52 | 9.52 | 9.52 | 9.52 | |
| Piping connection gas (mm) | 15.9 | 15.9 | 15.9 | 15.9 | 15.9 | |
| Dimensions (W x D x H) (mm) | 840 X 840 X 240 | 840 X 840 X 240 | 840 X 840 X 240 | 840 X 840 X 240 | 840 X 840 X 240 | |
