Valvă de expensiune Danfoss, TX 2-068Z3207

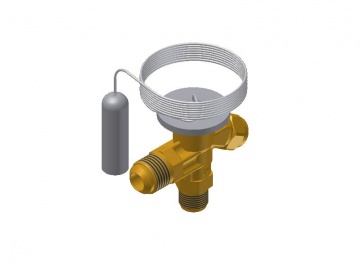

Valvă de expansiune termostatică Danfoss T2/TE2

Ai observat o eroare?

COD DTN

201.18.1008

COD PRODUS

TX 2-068Z3207

068Z3207

Solicită ofertă PDF

Valvă de expansiune termostatică din gama T2, cu racord filetat x filetat

Regularizează injecția de refrigerant lichid în cadrul vaporizatoarelor.

Specificații

Refrigerant R407C, R22
Lungime capilară 1,50 m
MOP Fără MOP (No MOP)
Domeniu B: -60°C...-25°C
Egalizare -
Capacitate nominală kW
Racord intrare x ieșire
- inch : 3/8 x 1/2
- mm : 10 x 12

Tabel comparativ

Valve termostatice Danfoss T2/TE2
Modele	Refrigerant	Lungime capilară (m)	MOP	Domeniu	Egalizare	Capacitate nominală (kW)	Racord intrare x ieșire
Modele	Refrigerant	Lungime capilară (m)	MOP	Domeniu	Egalizare	Capacitate nominală (kW)	inch	mm
TX 2-068Z3206	R407C R22	1,50	Fără MOP (No MOP)	N: -40°C...+10°C	-		3/8 x 1/2	10 x 12
TX 2-068Z3208	R407C R22	1,50	MOP +15°C	N: -40°C...+10°C	-		3/8 x 1/2	10 x 12
TX 2-068Z3224	R407C R22	1,50	MOP 0°C	NM: -40°C...-5°C	-		3/8 x 1/2	10 x 12
TX 2-068Z3226	R407C R22	1,50	MOP -10°C	NL: -40°C...-15°C	-		3/8 x 1/2	10 x 12
TX 2-068Z3207	R407C R22	1,50	Fără MOP (No MOP)	B: -60°C...-25°C	-		3/8 x 1/2	10 x 12
TX 2-068Z3228	R407C R22	1,50	MOP -20C	B: -60°C...-25°C	-		3/8 x 1/2	10 x 12
TEX 2-068Z3209	R407C R22	1,50	Fără MOP (No MOP)	N: -40°C...+10°C	1/4"		3/8 x 1/2	10 x 12
TEX 2-068Z3211	R407C R22	1,50	MOP +15°C	N: -40°C...+10°C	1/4"		3/8 x 1/2	10 x 12
TEX 2-068Z3225	R407C R22	1,50	MOP 0°C	NM: -40°C...-5°C	1/4"		3/8 x 1/2	10 x 12
TEX 2-068Z3227	R407C R22	1,50	MOP -10°C	NL: -40°C...-15°C	1/4"		3/8 x 1/2	10 x 12
TEX 2-068Z3210	R407C R22	1,50	Fără MOP (No MOP)	B: -60°C...-25°C	1/4"		3/8 x 1/2	10 x 12
TEX 2-068Z3229	R407C R22	1,50	MOP -20C	B: -60°C...-25°C	1/4"		3/8 x 1/2	10 x 12
TZ 2-068Z3496	R407C	1,50	Fără MOP (No MOP)	N: -40°C...+10°C	-		3/8 x 1/2	10 x 12
TZ 2-068Z3514	R407C	1,50	MOP +15°C	N: -40°C...+10°C	-		3/8 x 1/2	10 x 12
TEZ 2-068Z3501	R407C	1,50	Fără MOP (No MOP)	N: -40°C...+10°C	1/4"		3/8 x 1/2	10 x 12
T 2-068Z3516	R407C	1.50	MOP +15°C	N: -40°C...+10°C	int.		3/8 x 1/2	-
TEZ 2-068Z3517	R407C	1,50	MOP +15°C	N: -40°C...+10°C	1/4"		3/8 x 1/2	10 x 12
TN 2-068Z3346	R134a R513A	1,50	Fără MOP (No MOP)	N: -40°C...+10°C	-		3/8 x 1/2	10 x 12
TN 2-068Z3347	R134a R513A	1,50	Fără MOP (No MOP)	N: -40°C...+10°C	-		3/8 x 1/2	10 x 12
TN 2-068Z3393	R134a R513A	1,50	MOP 0°C	NM: -40°C...-5°C	-		3/8 x 1/2	10 x 12
TN 2-068Z3369	R134a R513A	1,50	MOP -10°C	NL: -40°C...-15°C	-		3/8 x 1/2	10 x 12
TEN 2-068Z3348	R134a R513A	1,50	Fără MOP (No MOP)	N: -40°C...+10°C	1/4"		3/8 x 1/2	10 x 12
TEN 2-068Z3349	R134a R513A	1,50	MOP +15°C	N: -40°C...+10°C	1/4"		3/8 x 1/2	10 x 12
TEN 2-068Z3392	R134a R513A	1,50	MOP 0°C	NM: -40°C...-5°C	1/4"		3/8 x 1/2	10 x 12
TEN 2-068Z3370	R134a R513A	1,50	MOP -10°C	NL: -40°C...-15°C	1/4"		3/8 x 1/2	10 x 12
T2-068Z3435	R404A R507A	1.50	Fără MOP (No MOP)	N: -40°C...+10°C	int.	9.1	3/8 x 1/2	10 x 12
TS 2-068Z3400	R404A R507A	1,50	Fără MOP (No MOP)	N: -40°C...+10°C	-		3/8 x 1/2	10 x 12
TS 2-068Z3402	R404A R507A	1,50	MOP +15°C	N: -40°C...+10°C	-		3/8 x 1/2	10 x 12
TS 2-068Z3406	R404A R507A	1,50	MOP 0°C	NM: -40°C...-5°C	-		3/8 x 1/2	10 x 12
TS 2-068Z3408	R404A R507A	1,50	MOP -10°C	NL: -40°C...-15°C	-		3/8 x 1/2	10 x 12
TS 2-068Z3401	R404A R507A	1,50	Fără MOP (No MOP)	B: -60°C...-25°C	-		3/8 x 1/2	10 x 12
TS 2-068Z3410	R404A R507A	1,50	MOP -20C	B: -60°C...-25°C	-		3/8 x 1/2	10 x 12
TES 2-068Z3403	R404A R507A	1,50	Fără MOP (No MOP)	N: -40°C...+10°C	1/4"		3/8 x 1/2	10 x 12
TES 2-068Z3405	R404A R507A	1,50	MOP +15°C	N: -40°C...+10°C	1/4"		3/8 x 1/2	10 x 12
TES 2-068Z3407	R404A R507A	1,50	MOP 0°C	NM: -40°C...-5°C	1/4"		3/8 x 1/2	10 x 12
TES 2-068Z3409	R404A R507A	1,50	MOP -10°C	NL: -40°C...-15°C	1/4"		3/8 x 1/2	10 x 12
TES 2-068Z3404	R404A R507A	1,50	Fără MOP (No MOP)	B: -60°C...-25°C	1/4"		3/8 x 1/2	10 x 12
TES 2-068Z3411	R404A R507A	1,50	MOP -20C	B: -60°C...-25°C	1/4"		3/8 x 1/2	10 x 12
