Air curtain ceiling brackets Tecnosystemi 12300057

Solicită ofertă PDF

Air curtain support for ceiling mounting, with adjustable arms of min. 450 mm and max. 770 mm

Tecnosystemi ceiling brackets with adjustable length of each metal arm included.
Adjustment of the distance of the air curtain from the ceiling to ensure optimal air flow.
Adjustment from the ceiling: between 450 mm and 770 mm (extendable arm).
Horizontal segment size Tecnosystemi 12300057: 120 mm.
In addition to ceiling mounting (suspension), they can also be used for certain wall mounting configurations.
The slot on the arm allows for millimetric alignment of the equipment, essential for the air jet to correctly cover the door opening.
Resistant metal, electrostatically painted with polyester powder.
White color (RAL 9010/9016).
Set weight: 1.66 kg.
Billed per set.

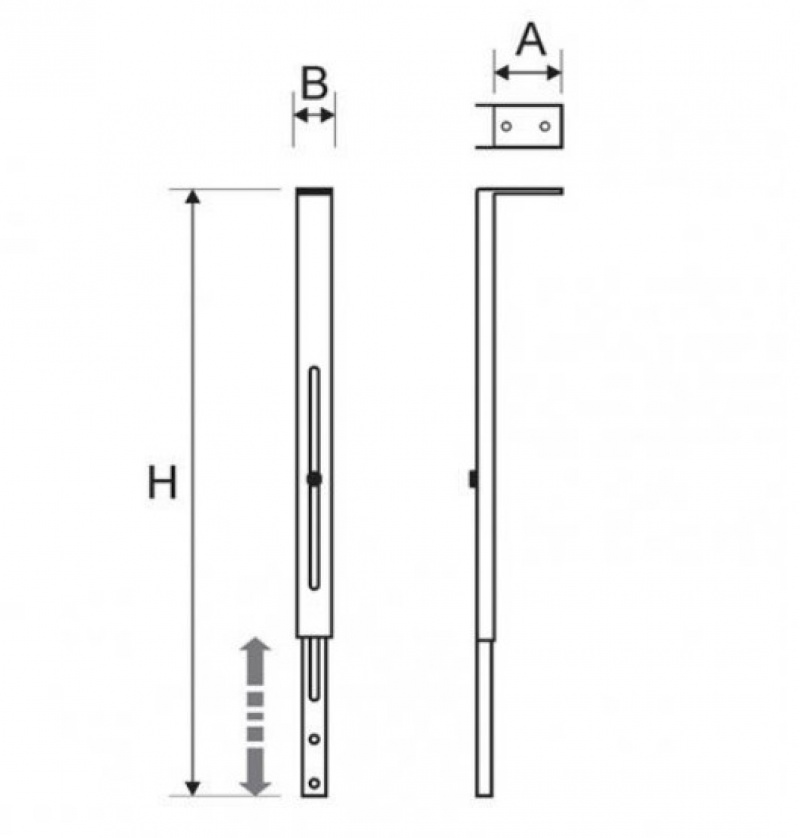

Legth horizontal x vertical x transverse brackets 120 x (min. 450/max. 770) x - mm
Legth main bracket 120 mm
Maximum loading kg
Bracket material thickness 45 mm
Colour alba (white)
Weight 0.83 x 2 kg

Ceiling brackets
Modele	Consola perdele aer Tecnosystemi
Legth horizontal x vertical x transverse brackets (mm)	120 x (min. 450/max. 770) x -
Legth main bracket (mm)	120
Maximum loading (kg)
Bracket material thickness (mm)	45
Colour	alba (white)
Weight (kg)	0.83 x 2
