Heated air curtain with H2O and frontal air intake 1.5m L x 3m H

Perdea aer cald cu agent termic si absorbtie frontala 1.5mx3mH

Controler telecomanda perdea de aer Tecnosystemi

Perdea termica cu alimentare cu apă AirFor3 H2O

Mod de instalare perde de aer admisie frontala aer

Ai observat o eroare?

COD PRODUS

Tecnosystemi centrifugal H2O 12450100

Solicită ofertă PDF

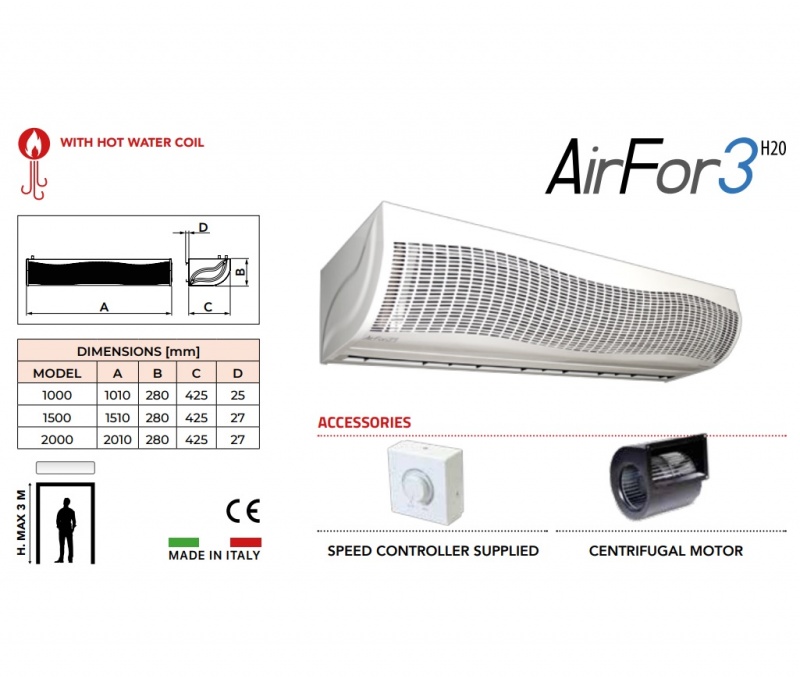

AirFor3 H2O heated air curtain with centrifugal fan motor, front air intake, entrance dimensions: 1500 mm L x max. 3000 mm H

Thermal curtain with water supply AirFor3 H2O Centrifugal & Hot Water Coil 1500 from Tecnosystemi - Apply Air.
Model 12450100 1500 is supplied with heating agent and the air supply is frontal.
It is mounted in the central area, above the automatic sliding doors.
Curtain with thermal agent: liquid inlet temperature 70°C, liquid outlet temperature 60ºC, 1/2” connection.

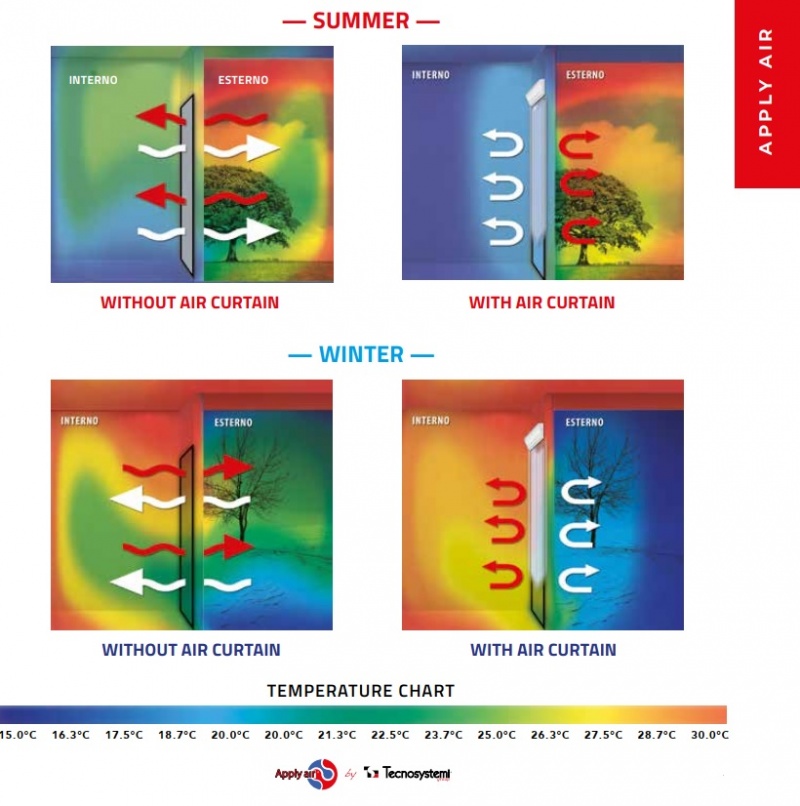

80% reduction of internal temperature losses.
Suitability for entrances of a maximum height of 3 m (entrance doors to warehouses, shops, waiting rooms, restaurants, etc.).
Each Tecnosystemi air curtain is equipped with a controller that starts/stops the air flow (ON-OFF), varying the 3 available working speeds and activating/deactivating the electrical resistance (hot air/cold air).
It lost the heat intended for indoor installation.
White panel air curtain with hot water; horizontal installation, always in the central area of the exit (door), embedded in the false ceiling.
Heated air curtain country of origin: Italy.

Specificații

Max dimensions of entrances (WxH) 1500 x 3000 mm
Net dimensions (WxDxH) 1512 x 455 x 279 mm
Air curtain category centrifugală (centrifugal), cu rezistenta electrica (with el.resistance), cu agent termic (with hot water coil), cu admisie aer frontala (front air intake)
Electric heater
- Inclusa (included) : -
- Neinclusa (not included) : X
Air flow volume 2120 m³/h
Control Remote
Absorbed power/Absorbed power with resistance 256/- W/W
Sound level 64 db(A)
Net weight 45.10 kg

Tabel comparativ

Heated air curtains
Modele		Tecnosystemi tangential 12300050RI(51RI)	Tecnosystemi tangential 12300055RI	Tecnosystemi tangential 12300056RI	Tecnosystemi centrifugal 12300033R3	Tecnosystemi centrifugal 12300035R3	Tecnosystemi centrifugal 12450030R3	Tecnosystemi centrifugal H2O 12450092	Tecnosystemi centrifugal H2O 12450102	Tecnosystemi centrifugal H2O 12450112	Tecnosystemi centrifugal H2O 12450090	Tecnosystemi centrifugal H2O 12450100	Tecnosystemi centrifugal H2O 12450110
Max dimensions of entrances (WxH) (mm)		1000 x 3000	1500 x 3000	2000 x 3000	1000 x 3000	1500 x 3000	2000 x 3000	1000 x 3000	1500 x 3000	2000 x 3000	1000 x 3000	1500 x 3000	1500 x 3000 2000 x 3000
Net dimensions (WxDxH) (mm)		1070 x 245 x 180	1422 x 245 x 180	2032 x 245 x 180	1000 x 362 x 270	1500 x 362 x 270	2000 x 362 x 270	1000 x 362 x 331	1500 x 362 x 331	2000 x 362 x 331	1012 x 455 x 279	1512 x 455 x 279	2012 x 455 x 279
Air curtain category		tangentială (tangential) cu rezistenta electrica (with el.resistance) cu alimentare electrica (electric supply) cu admisie aer superioara (upper air inteke)	tangentială (tangential) cu rezistenta electrica (with el.resistance) cu alimentare electrica (electric supply) cu admisie aer superioara (upper air inteke)	tangentială (tangential) cu rezistenta electrica (with el.resistance) cu alimentare electrica (electric supply) cu admisie aer superioara (upper air inteke)	centrifugală (centrifugal) cu rezistenta electrica (with el.resistance) cu alimentare electrica (electric supply)	centrifugală (centrifugal) cu rezistenta electrica (with el.resistance) cu alimentare electrica (electric supply)	centrifugală (centrifugal) cu rezistenta electrica (with el.resistance) cu alimentare electrica (electric supply)	centrifugală (centrifugal) cu rezistenta electrica (with el.resistance) cu agent termic (with hot water coil)	centrifugală (centrifugal) cu rezistenta electrica (with el.resistance) cu agent termic (with hot water coil)	centrifugală (centrifugal) cu rezistenta electrica (with el.resistance) cu agent termic (with hot water coil)	centrifugală (centrifugal) cu rezistenta electrica (with el.resistance) cu agent termic (with hot water coil) cu admisie aer frontala (front air intake)	centrifugală (centrifugal) cu rezistenta electrica (with el.resistance) cu agent termic (with hot water coil) cu admisie aer frontala (front air intake)	centrifugală (centrifugal) cu rezistenta electrica (with el.resistance) cu agent termic (with hot water coil) cu admisie aer frontala (front air intake)
Electric heater	Inclusa (included)	1 buc (1 pc)	2 buc (2 pcs)	2 buc (2 pcs)	3 buc (3 pcs)	6 buc (6 pcs)	6 buc (6 pcs)	-	-	-	-	-	-
Electric heater	Neinclusa (not included)	-	-	-	-	-	-	X	X	X	X	X	X
Air flow volume (m³/h)		693/738/783	1161/1188/1215	1332/1404/1458	1163/1242/1436	1724/1916/2129	2589/2877/3197	1590	2120	3190	1590	2120	3190
Absorbed power/Absorbed power with resistance (W/W)		75/1900	190/3200	190/3800	180/3800	240/6400	360/7600	180/-	240/-	360/-	190/-	256/-	384/-
Sound level (db(A))		65/67/68	68/68.5/69	67/68/70	54/57/60	55/58/61	56/59/62	62	64	66	62	64	66
Power supply (V/Hz/Ph)		220-240/50/1	220-240/50/1	220-240/50/1	220-240/50/1	220-240/50/1	220-240/50/1
