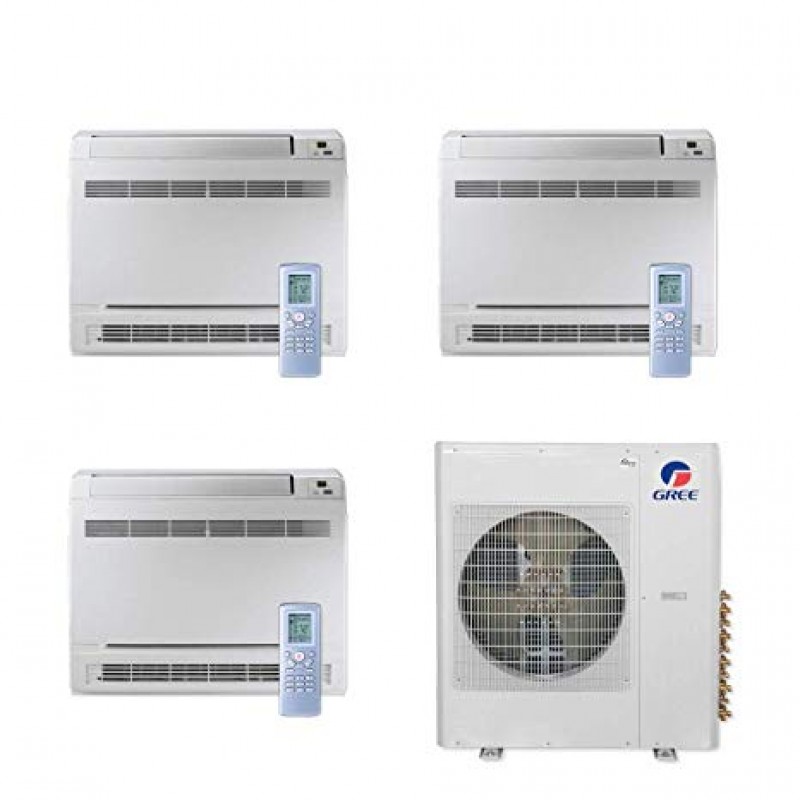

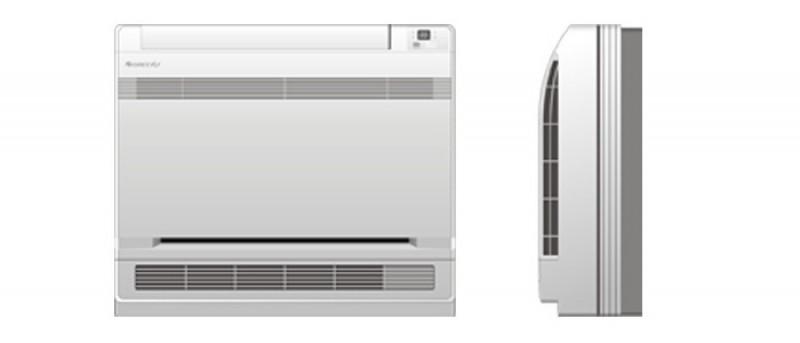

| Console (R32) | ||||
|---|---|---|---|---|
| Modele | GEH09AA-K6DNA1E/I | GEH12AA-K6DNA1E/I | GEH18AA-K6DNA1E/I | |
| Power supply (V/Hz/Ph) | 220-240/50/1 | 220-240/50/1 | 220-240/50/1 | |
| Refrigerant | R32 | R32 | R32 | |
| BTU cooling (BTU) | 9200 | 12000 | 17700 | |
| BTU heating (BTU) | 9500 | 12600 | 18100 | |
| Cooling capacity (kW) | 2,7 | 3,5 | 5,2 | |
| Heating capacity (kW) | 2,8 | 3,7 | 5,3 | |
| Air flow volume (M) (m³/h) | 410 | 480 | 580 | |
| Piping connection liquid (mm) | 6 | 6 | 6 | |
| Piping connection gas (mm) | 9,52 | 9,52 | 12 | |
| Control | Remote WI-FI Wired (optional) Centralized (optional) | Remote WI-FI Wired (optional) Centralized (optional) | Remote WI-FI Wired (optional) Centralized (optional) | |
| Sound pressure level (M) (dB (A)) | 32 | 36 | 40 | |
| Net dimensions (WxDxH) (mm) | 700 x 215 x 600 | 700 x 215 x 600 | 700 x 215 x 600 | |
| Net weight (kg) | 15,5 | 15,5 | 15,5 | |
| Sound power level (M) (dB (A)) | 44 | 46 | 50 | |
| Free-Match compatibility | GWHD(36)NK6LO | GWHD(36)NK6LO | GWHD(36)NK6LO | |
| Super Free-Match compatibility | ||||
