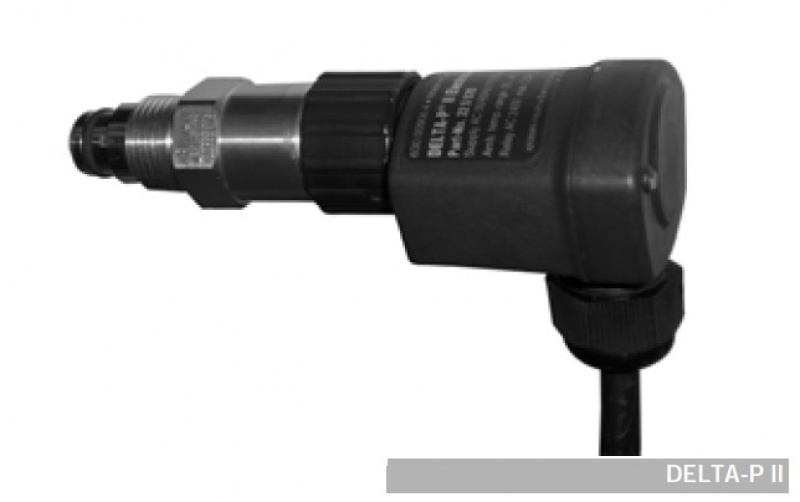

Delta-P II differential oil pressure sensor

Oil pressure sensor Delta P II 230V intended for semi-hermetic compressors

  • The Delta-P II monitors the pressure differentials of the oil pumps associated with the refrigeration compressors.

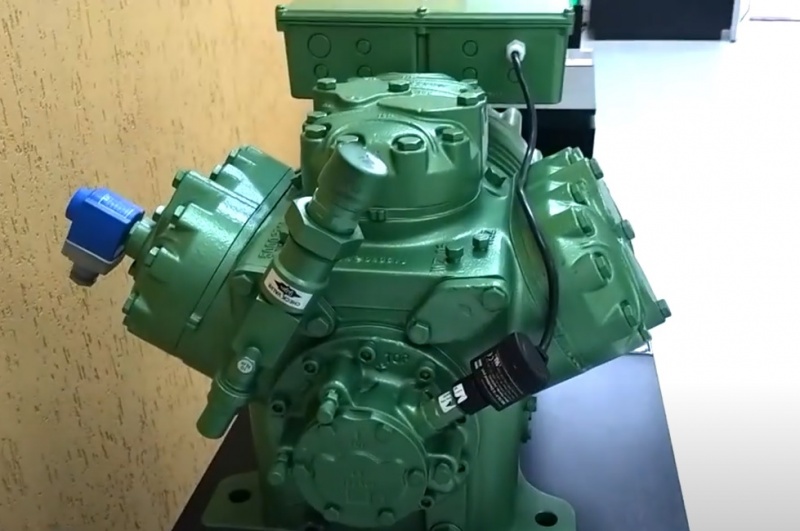

  • The sensor screws into the pump housing.
  • It also monitors internal errors.
  • Delta-P II temperature range: -30 ... +90ºC.
  • Connection type: M20 X 1.5 mm.
  • If faults occur in any phase of operation, a forced shutdown of the relay occurs after 5 seconds of detection.
  • The flashing red LED (flashing 10 Hz) indicates: internal error / too low voltage supply / unscrewing of the sensor fixing part.
  • Steady light indicates no differential pressure.
  • No led indicates no errors: the differential pressure is OK.
  • Supply voltage: AC 50/60Hz 115-230V - 15...+10%.
  • Oil sensor weight: 130 gr.
  • Made in EU: Germany.

Specificații

  • Capacity - l
  • Differential pressure
    • nom. : 0.5 bar
    • max. : 0.8 bar
  • Pressure 30 bar
