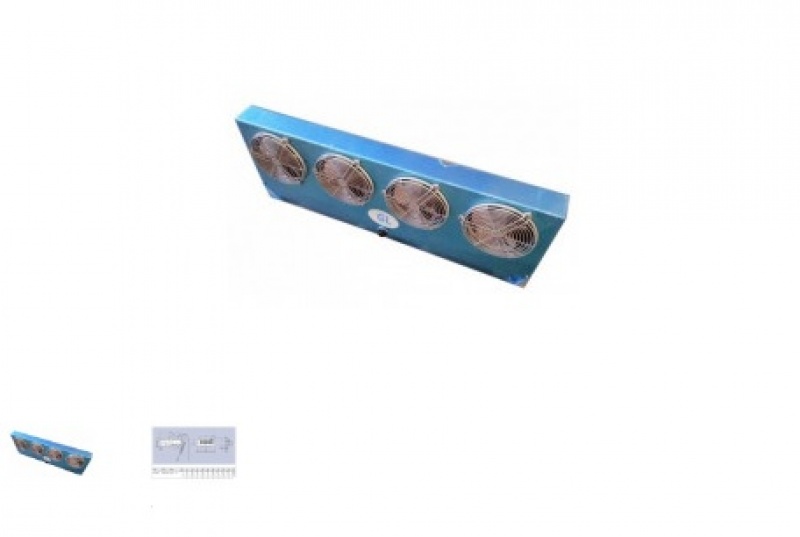

Eco Luvata EVS 521 ED ECO evaporator

Vaporizator Eco Luvata EVS 521 ED ECOSchemă generală vaporizatoare Eco Luvata EVSElemente Eco Luvata EVS
nou
qr Ai observat o eroare?

COD PRODUS

Solicită ofertă PDF

Slim ceiling air unit cooler for refrigeration, with 4 pcs of Ø 200 mm fans, 3.29 kW

  • Ecol Luvata evaporator, EVS range, narrow ceiling model, with evaporator defrost resistance included.
  • Refrigerant evaporator with significant air flow (1300 m³/h).
  • EVS391ED vaporizer with corrosion resistance.
  • Intended for medium and high temperatures (≥-12°C), with dual blades of 3.5/7 mm.
  • Metal casing and pipe system also adaptable to new types of refrigerants.
  • Electric resistance included (electrical defrost - ED).
  • Single-phase power supply (230V).

Specificații

  • Nominal capacity 3.29 kW
  • Fan no. 4
  • Electrical defrost* inclusă (included)
  • Air flow of evaporator 1300 m³/h
  • Air throw 4 m
  • Weight 23 kg

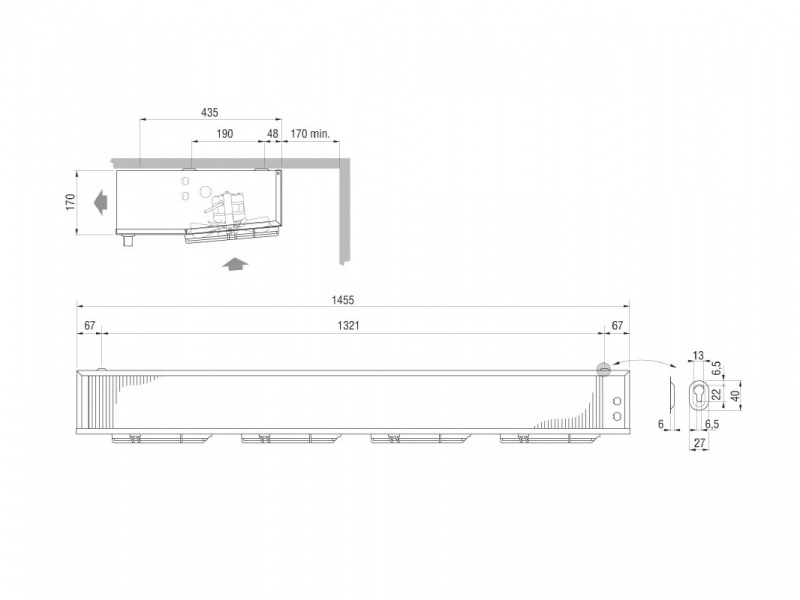

  • Evaporator dimensions
    • A : 1461 mm
    • B : 1321 mm
    • C : 170 mm
  • Connections
    • ref. (discharge) : 1/2
    • asp. (suction) : 16 mm
  • Drain connection 1/2 "

Tabel comparativ

EVS slim ceiling evaporators (HBP)
Modele Nominal capacity (kW)Fan no.Electrical defrost*Air flow of evaporator (m³/h)Air throw (m)Evaporator dimensions (mm)
ABC
EVS 41 ECO0.431neinclusă (not included)2903411433120
EVS 41 ED ECO0.431inclusă (included)2903411433120
EVS 61 ECO0.531neinclusă (not included)2602.5411433120
EVS 61 ED ECO0.531inclusă (included)2602.5411433120
EVS 101 ECO0.842neinclusă (not included)5805611433120
EVS 101 ED ECO0.842inclusă (included)5805611433120
EVS 131 ECO1.012neinclusă (not included)5204.5611433120
EVS 131 ED ECO1.012inclusă (included)5204.5611433120
EVS 201 ECO1.462neinclusă (not included)5654611433170
EVS 201 ED ECO1.462inclusă (included)5654611433170
EVS 271 ECO1.732neinclusă (not included)6904861433170
EVS 271 ED ECO1.732inclusă (included)6904861433170
EVS 181 ECO1.73neinclusă (not included)8704.51111433120
EVS 181 ED ECO1.73inclusă (included)8704.51111433120
EVS 291 ECO2.063neinclusă (not included)78041111433120
EVS 291 ED ECO2.063inclusă (included)78041111433120
EVS 391 ED ECO2.523inclusă (included)98041111971170
EVS 521 ED ECO3.294inclusă (included)1300414611321170
