Eco Luvata EVS 61 ECO evaporator

Solicită ofertă PDF

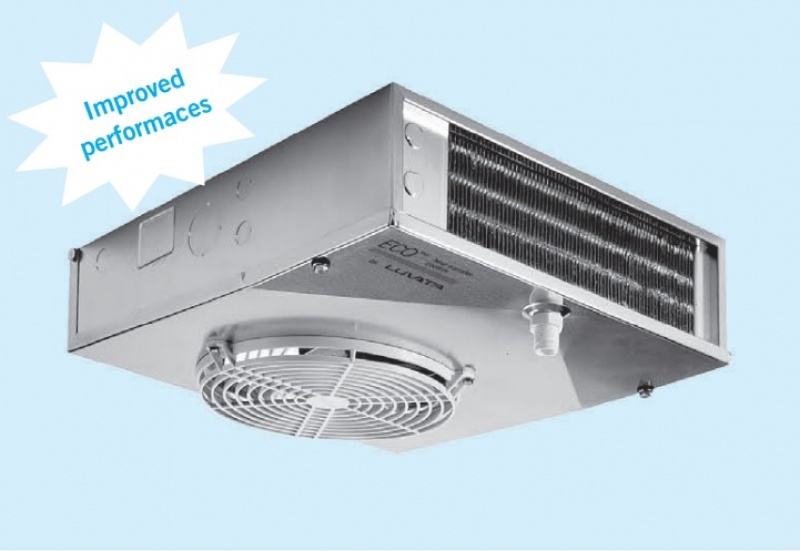

Ceiling type evaporator, with 200 mm type fan, 0.53 kW

Slim ceiling type evaporator for small cold rooms and display cases.
Special applicability for refrigeration.

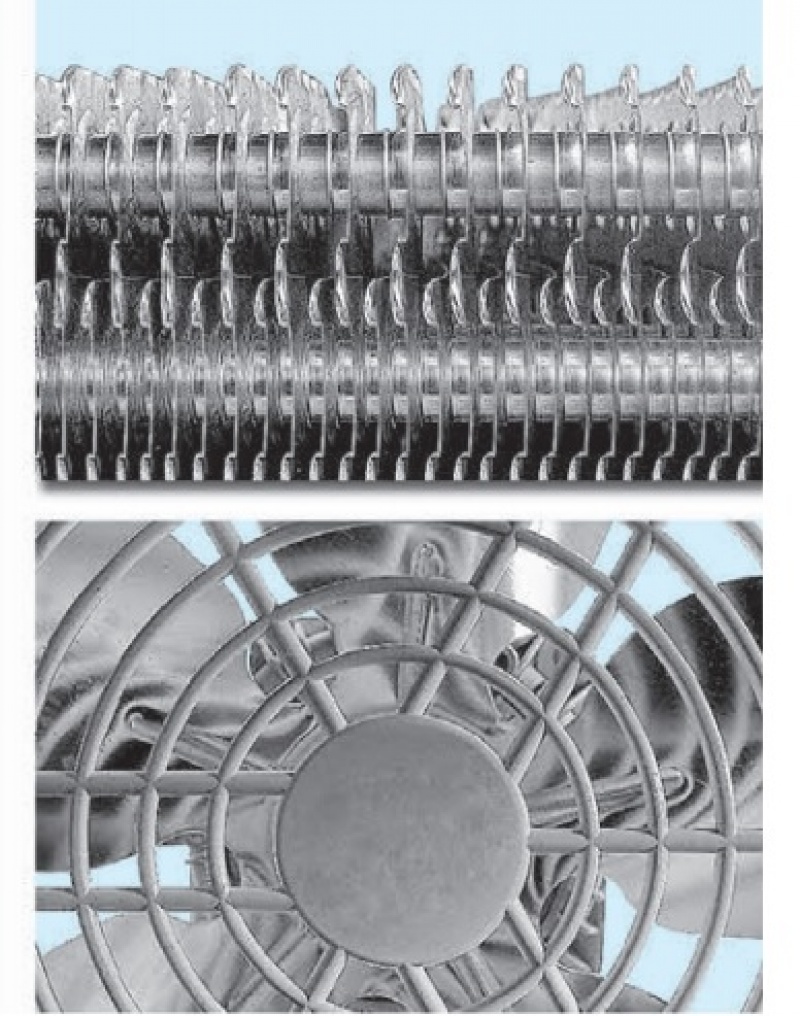

Designed for medium and high temperatures (≥-12 ° C), with dual fins of 3.5 / 7 mm.
Methalic case and piping system adaptable to new types of refrigerants.
1-phase (230V) power supply.

EVS slim ceiling evaporators (HBP)

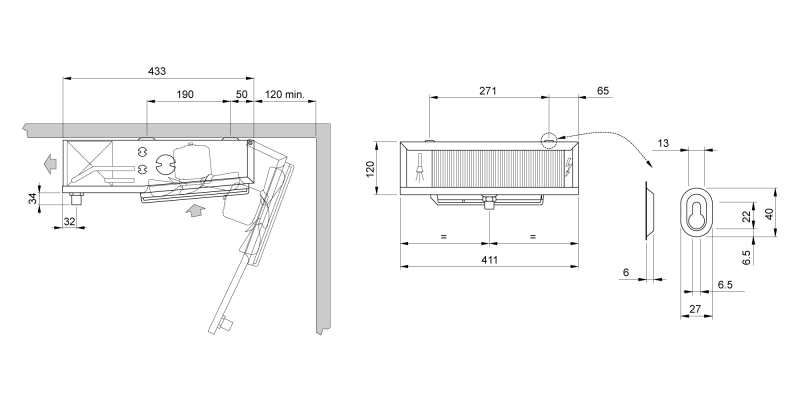

Modele	Nominal capacity (kW)	Fan no.	Electrical defrost*	Air flow of evaporator (m³/h)	Air throw (m)	Evaporator dimensions (mm)
Modele	Nominal capacity (kW)	Fan no.	Electrical defrost*	Air flow of evaporator (m³/h)	Air throw (m)	A	B	C
EVS 41 ECO	0.43	1	neinclusă (not included)	290	3	411	433	120
EVS 41 ED ECO	0.43	1	inclusă (included)	290	3	411	433	120
EVS 61 ECO	0.53	1	neinclusă (not included)	260	2.5	411	433	120
EVS 61 ED ECO	0.53	1	inclusă (included)	260	2.5	411	433	120
EVS 101 ECO	0.84	2	neinclusă (not included)	580	5	611	433	120
EVS 101 ED ECO	0.84	2	inclusă (included)	580	5	611	433	120
EVS 131 ECO	1.01	2	neinclusă (not included)	520	4.5	611	433	120
EVS 131 ED ECO	1.01	2	inclusă (included)	520	4.5	611	433	120
EVS 201 ECO	1.46	2	neinclusă (not included)	565	4	611	433	170
EVS 201 ED ECO	1.46	2	inclusă (included)	565	4	611	433	170
EVS 271 ECO	1.73	2	neinclusă (not included)	690	4	861	433	170
EVS 271 ED ECO	1.73	2	inclusă (included)	690	4	861	433	170
EVS 181 ECO	1.7	3	neinclusă (not included)	870	4.5	1111	433	120
EVS 181 ED ECO	1.7	3	inclusă (included)	870	4.5	1111	433	120
EVS 291 ECO	2.06	3	neinclusă (not included)	780	4	1111	433	120
EVS 291 ED ECO	2.06	3	inclusă (included)	780	4	1111	433	120
EVS 391 ED ECO	2.52	3	inclusă (included)	980	4	1111	971	170
EVS 521 ED ECO	3.29	4	inclusă (included)	1300	4	1461	1321	170
