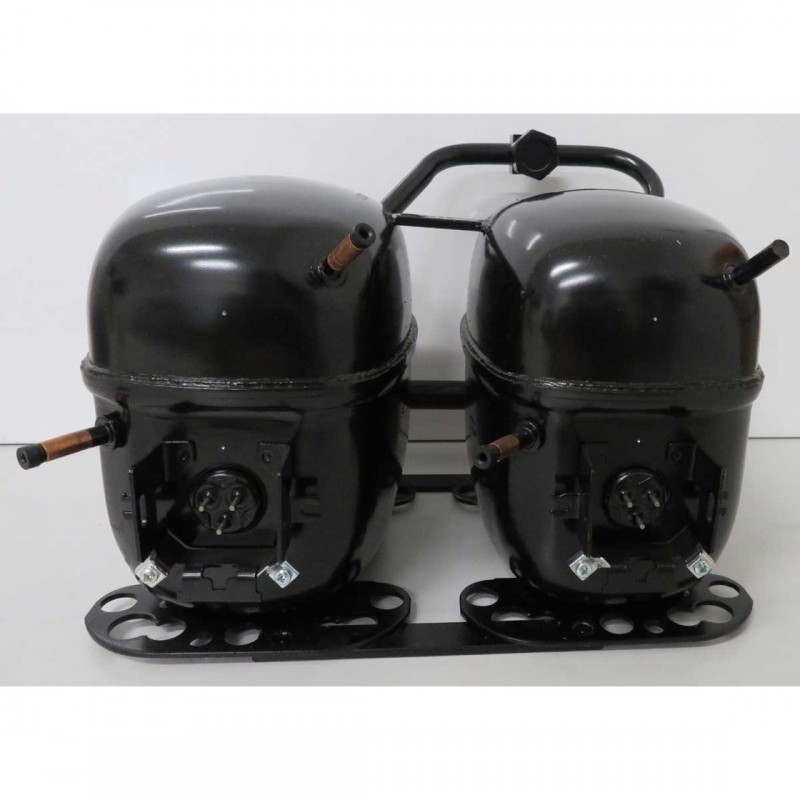

Hermetic compressor Danfoss SC 12/12DLX (R404A)

Solicită ofertă PDF

Single-phase motor Danfoss SC12/12DLX, refrigeration (HBP), 2 x 12.87 cm³, 2055 W, R404A/R507/R407C

Danfoss-Secop twin hermetic compressor for domestic and light commercial use - refrigeration.
Operating range: -20ºC ... +15ºC.
Refrigeration capacity of 2055 W at -10ºC.
Durable sealing and reliability in case of unstable power supply.
Professional Danfoss SC12/12DLX (SC12/12DL) compressor with optimized motor technology.
Low energy consumption.
Showcase compressor, refrigerator, dispenser or on-off refrigerating aggregate with compact design, R404A/R507/R407C.
Height: 249 mm.
Silent Danfoss compressor with easy installation.
Compressor 220-230V with 2 x 12.87 cm³ displacement.

Danfoss HBP (R404A)
Modele	Power supply (V/Hz/Ph)	Application	Displacement (cm³)	Cooling capacity [W] / Evapor. temp. [°C] (W)								Max. height (mm)
Modele	Power supply (V/Hz/Ph)	Application	Displacement (cm³)	-20°C	-15°C	-10°C	-5°C	0°C	5°C	10°C	15°C	Max. height (mm)
FR6DLX	220-240/50/1	HBP	6.23	317	385	471	576	698	840	999	1177	196
SC10DLX	220-240/50/1	HBP	10.29	471	611	775	968	1192	1450	1447	2085	209
SC12DLX	220-240/50/1	HBP	12.87	609	806	1028	1279	1565	1890	2258	2674	219
SC15DLX	220-240/50/1	HBP	15.28	759	964	1207	1493	1825	2210	2652	3156	219
SC10/10DLX	220-240/50/1	HBP	2 x 10.29	943	1222	1550	1935	2883	2900	3494	4169	249
SC12/12DLX	220-240/50/1	HBP	2 x 12.87	1217	1612	2055	2559	3130	3780	4516	5348	249
SC15/15DLX	220-240/50/1	HBP	2 x 15.28	1518	1928	2414	2985	3651	4420	5304	6311	259
