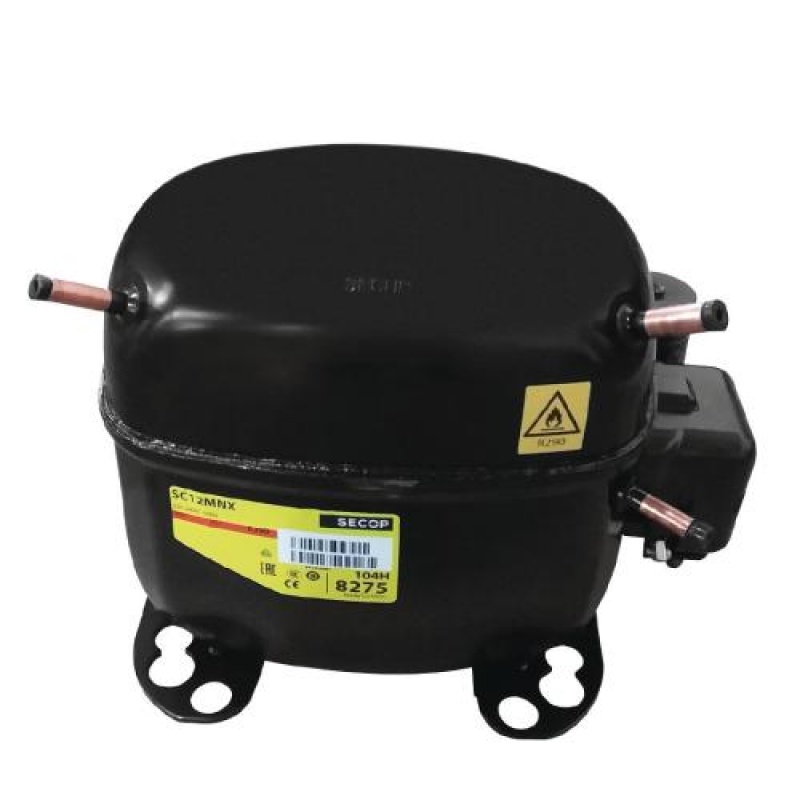

Hermetic compressor Danfoss SC 12MNX (R290)

Compresor frigorific Danfoss SC 12MNX (R290)Motor monofazat Danfoss SC12MNX
nou
qr Ai observat o eroare?

COD PRODUS

Solicită ofertă PDF

Danfoss SC12MNX single-phase motor, medium temperatures (MBP), 12.87 cm³, 851 W, R290

  • Danfoss-Secop hermetic compressor for domestic and light commercial use - medium temperatures (refrigeration).
  • Super-extended operating range: -35ºC ... +10ºC.
  • Refrigeration capacity of 851 W at -10ºC.
  • Durable sealing and reliability in case of unstable power supply.
  • Professional compressor Danfoss SC12MNX (SC12MN) with optimized motor technology.
  • Low energy consumption.
  • Refrigerator compressor, showcase, dispenser or on-off refrigeration aggregate with compact design, R290.
  • Height: 219 mm.
  • Silent Danfoss compressor with easy installation.
  • Compressor 220-230V with 12.87 cm³ cylinder capacity.

Specificații

  • Power supply 220-240/50/1 V/Hz/Ph
  • Application MBP
  • Refrigerant R290
  • Displacement 12.87 cm³
  • Net weight 13.5 kg
  • Max. height 219 mm
  • Cooling capacity (W)/Evaporating temp. (°C)
    • -35°C : 147 W
    • -30°C : 254 W
    • -25°C : 375 W
    • -23,3°C : 420 W
    • -20°C : 513 W
    • -15°C : 670 W
    • -10°C : 851 W
    • -5°C : 1056 W
    • 0°C : 1291 W
    • 5°C : 1557 W
    • 7,2°C : 1685 W
    • +10°C : 1858 W
Notes:
EN13215 RTG 20°C

Tabel comparativ

Danfoss MBP (R290)
Modele Power supply (V/Hz/Ph)ApplicationDisplacement (cm³)Net weight (kg)Max. height (mm)Cooling capacity (W)/Evaporating temp. (°C) (W)
-35°C-30°C-25°C-23,3°C-20°C-15°C-10°C-5°C0°C5°C7,2°C+10°C
SC12MNX220-240/50/1MBP12.8713.521914725437542051367085110561291155716851858

Accesorii

R290 (370 g) refrigerant

R290 (370 g) refrigerant
