Hermetic compressor Tecumseh AE 4425 Y-FZ (R134a)

Compresor profesional cu piston AE 4425 Y-FZ

Compresor frigorific Tecumseh AE 4425 Y-FZ (R134a)

new

Did you notice an error?

PRODUCT CODE

AE 4425Y-FZ

Offer request PDF

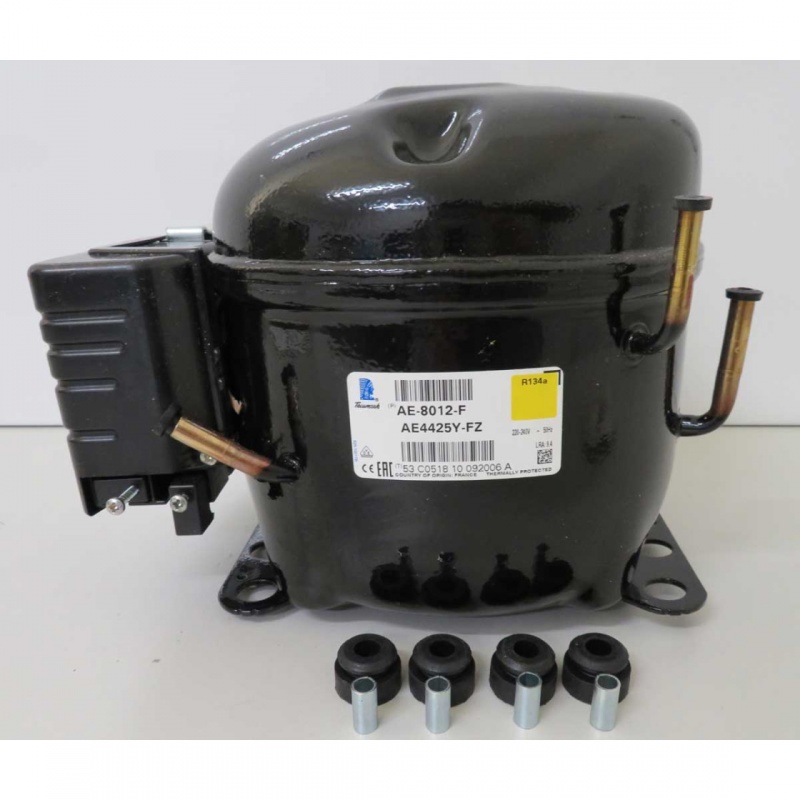

Tecumseh L'Unite AE4425Y-FZ1A single-phase motor, 6.69 cc, 0.31 kW, refrigeration (HBP), R134a/R513A

Refrigerated display compressor or refrigeration unit AE4425Y-FZ with 6.69 cm³ displacement.
Application: positive temperatures (refrigeration).
Professional piston compressor AE 4425 Y-FZ (replacement of the old model AEZ 4425Y).
Tecumseh refrigeration compressor with compact dimensions, easy installation, quietness, low energy consumption.
317 W motor now also supplied to installers in Romania, intended for commercial refrigeration.

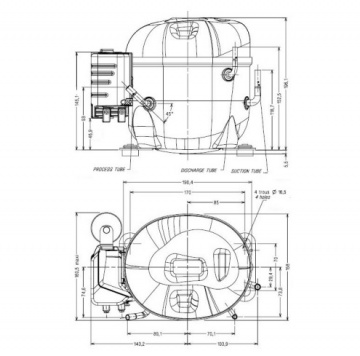

230V piston compressor height: 196.1 mm.

Specifications

Power supply 220-240/50/1 V/Hz/Ph
Application HBP
Refrigerant R134a, R513A
Displacement 6.69 cm³
Oil volume 280 cm³
Connection (suction) 3/16 "
Connection (discharge) 1/4 "
Maximum current A
Cooling capacity (W)/Evaporating temp. (°C)
- -15°C : 236 W
- -10°C : 317 W
- -5°C : 411 W
- 0°C : 520 W
- +7,2°C : 717 W
- +10°C : 790 W
- +15°C : 955 W

Notes:

EN13215 RTG 20°C

Comparative table

L'Unite HBP (R134a)
Modele	Power supply (V/Hz/Ph)	Application	Displacement (cm³)	Cooling capacity (W)/Evaporating temp. (°C) (W)
Modele	Power supply (V/Hz/Ph)	Application	Displacement (cm³)	-15°C	-10°C	-5°C	0°C	+7,2°C	+10°C	+15°C
THB4413Y	220-240/50/1	HBP	3.6	136	169	211	262	347	385	456
THB4415Y	220-240/50/1	HBP	4.23	161	198	245	302	400	443	524
THB4419Y	220-240/50/1	HBP	5.0	194	241	299	368	484	534	629
THB4422Y	220-240/50/1	HBP	5.9	253	308	375	454	586	643	750
AE 4425Y-FZ	220-240/50/1	HBP	6.69	236	317	411	520	717	790	955
AEZ4425Y	220-240/50/1	HBP	7.6	241	323	417	524	698	770	907
AE 4430Y-FZ1A	220-240/50/1	HBP	8.0	318	412	526	659	816	998	1207
AEZ3430Y	220-240/50/1	HBP	8.8	319	407	516	643	854	945	1117
AEZ4430Y	220-240/50/1	HBP	8.8	319	407	516	643	854	945	1117
AE 4440Y-FZ1A	220-240/50/1	HBP	10.33	429	545	684	847	1038	1260	1517
CAE4440Y	220-240/50/1	HBP	12.0	403	524	670	842	1127	1249	1481
AE4450Y	220-240/50/1	HBP	13.24	569	725	907	1119	1507	1650	1976
AE4456Y	220-240/50/1	HBP	14.51	624	792	987	1214	1627	1779	2125
CAE4456Y	220-240/50/1	HBP	16.0	596	750	940	1162	1534	1694	1996
CAJ4461Y	220-240/50/1	HBP	18.3	603	793	1021	1294	1780	2003	2453
AJ4461N-FZ	220-240/50/1	HBP	18.3	655	862	1112	1412	1981	2192	2683
TAJ4461Y	380-400/50/3	HBP	18.3	603	793	1021	1294	1780	2003	2453
AJ4476N-FZ	220-240/50/1	HBP	21.8	738	988	1280	1621	1819	2474	2997
CAJ4476Y	220-240/50/1	HBP	22.8	643	889	1177	1514	2100	2363	2888
CAJ4492Y	220-240/50/1	HBP	25.9	800	1113	1467	1871	2554	2856	3454
TAJ4492Y	380-400/50/3	HBP	25.9	800	1113	1467	1871	2554	2856	3454
CAJ4511Y	220-240/50/1	HBP	32.7	1109	1474	1895	2382	3218	3592	4332
TAJ4511Y	380-400/50/3	HBP	32.7	1109	1474	1895	2382	3218	3592	4332
AJ4511N-TZ	380-400/50/3	HBP	32.7	1234	1611	2049	2557	3482	3820	4594
CAJ4513Y	220-240/50/1	HBP	34.45	1329	1727	2192	2733	3719	4080	4906
AJ 4513N-FZ	220-240/50/1	HBP	34.45	1325	1751	2258	2862	3336	4415	5395
FH 4518Y-XC	220-240/50/1	HBP	48.5	1687	2277	2979	3810	5357	5928	7248
FH 4518Y-XG	380-400/50/3	HBP	48.5	1715	2314	3024	3864	5422	5996	7321
TFH4525Y	380-400/50/3	HBP	74.25	2167	2913	3822	4884	6654	7411	8846
