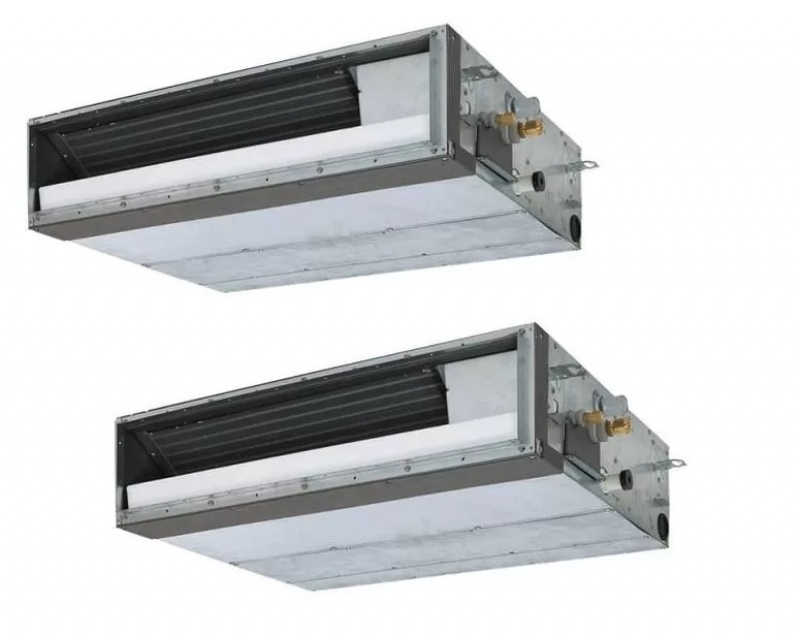

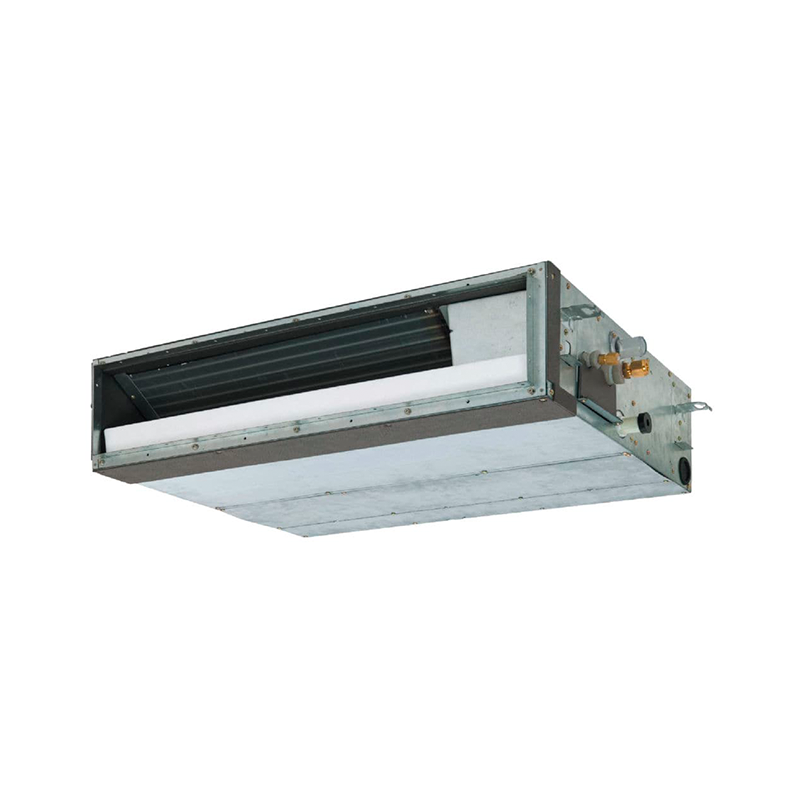

Indoor air conditioning unit Toshiba Ducted 22000 BTU (R32)

Solicită ofertă PDF

Toshiba Ducted indoor unit - ducted air conditioning, 6.0/7.0 kW, ultra-narrow design, high installation flexibility, A ++, wall controller option. Multisplit destination

Toshiba duct indoor air conditioning unit with innovative mounting technology due to the compact shape of only 21 cm high.

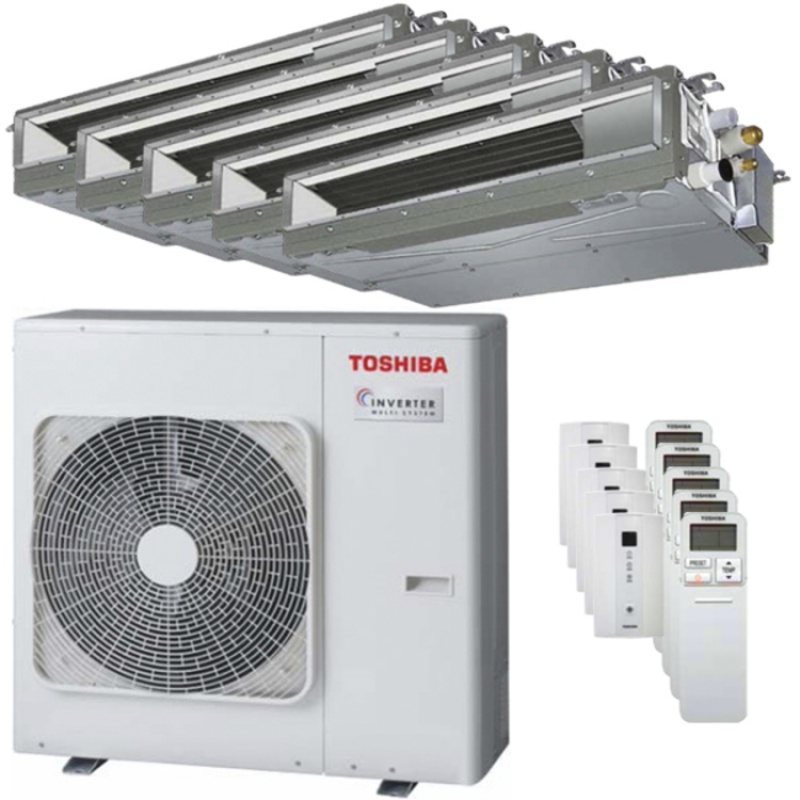

The Toshiba Ducted Indoor AC Piping Unit can be connected to a multisplit outdoor unit that serves either other identical AC units or other multi-range indoor air conditioning units (Toshiba wall units, floor units, cassette units).

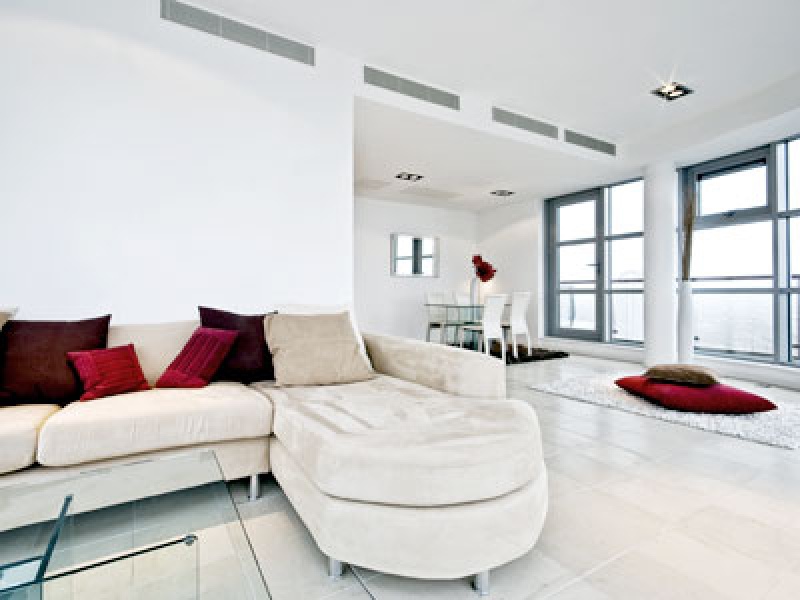

The installation is ideal for modern houses, guesthouses, restaurants, office buildings. Air conditioning can be installed in false ceilings.
Ultra-low noise, self-cleaning function, 5-stage functional fan, hybrid power inverter technology.
Energy efficiency class A ++ in cooling and heating mode.
Condensate pump integrated in each Toshiba duct air conditioning unit.
Infrared controller with the following main settings: 24 hour ON / OFF timer, Automatic mode, Eco mode, Hi Power, Quiet, Preset, Comfort Sleep.
Optional for central air conditioning: RB-RWS21-E wall controller for programmed operation (4 operating modes / day, 28 programs / week, temperature sensor).
Made in Thailand.

Refrigerant R410A, R32
Power supply 220-240/50/1 V/Hz/Ph
BTU cooling 20500 BTU
BTU heating 24000 BTU
Cooling capacity 6.0 kW
Heating capacity 7.0 kW
Energy class C A++
Energy class H A++
EER/COP - W/W
SEER/SCOP - W/W
Air flow volume 1000 m³/h
Sound pressure level
- Răcire (cooling) : 32/38 db(A)
- Încălzire (heating) : 32/38 db(A)
Sound power level 47/53 db(A)
Net dimensions IDU (WxDxH) 1100 x 450 x 210 mm
Net weight IDU 22 kg
Control Remote, Wired (optional)
ODU compatibility RAS-4M27U2AVG-E, RAS-5M34U2AVG-E

Indoor ducted AC units
Modele		Ducted 10000 BTU	Ducted 13000 BTU	Ducted 16000 BTU	Ducted 22000 BTU	Ducted 24000 BTU
Refrigerant		R410A R32	R410A R32	R410A R32	R410A R32	R410A R32
Power supply (V/Hz/Ph)		220-240/50/1	220-240/50/1	220-240/50/1	220-240/50/1	220-240/50/1
BTU cooling (BTU)		9200	12500	15500	20500	24500
BTU heating (BTU)		13600	17100	18800	24000	28000
Cooling capacity (kW)		2.7	3.7	4.5	6.0	7.1
Heating capacity (kW)		4.0	5.0	5.5	7.0	8.1
Energy class C		A++	A++	A++	A++	A++
Energy class H		A++	A++	A++	A++	A++
Air flow volume (m³/h)		570	610	780	1000	1060
Sound pressure level (db(A))	Răcire (cooling)	27/35	27/37	24/35	32/38	33/39
Sound pressure level (db(A))	Încălzire (heating)	27/35	27/37	24/35	32/38	33/39
Net dimensions IDU (WxDxH) (mm)		700 x 450 x 210	700 x 450 x 210	900 x 450 x 210	1100 x 450 x 210	1100 x 450 x 210
Net weight IDU (kg)		16	16	19	22	22
Control		Remote Wired (optional)	Remote Wired (optional)	Remote Wired (optional)	Remote Wired (optional)	Remote Wired (optional)
ODU compatibility		RAS-2M14U2AVG-E RAS-2M18U2AVG-E RAS-3M18U2AVG-E RAS-3M26U2AVG-E RAS-4M27U2AVG-E RAS-5M34U2AVG-E	RAS-2M18U2AVG-E RAS-3M18U2AVG-E RAS-3M26U2AVG-E RAS-4M27U2AVG-E RAS-5M34U2AVG-E	RAS-3M26U2AVG-E RAS-4M27U2AVG-E RAS-5M34U2AVG-E	RAS-4M27U2AVG-E RAS-5M34U2AVG-E	RAS-4M27U2AVG-E RAS-5M34U2AVG-E
