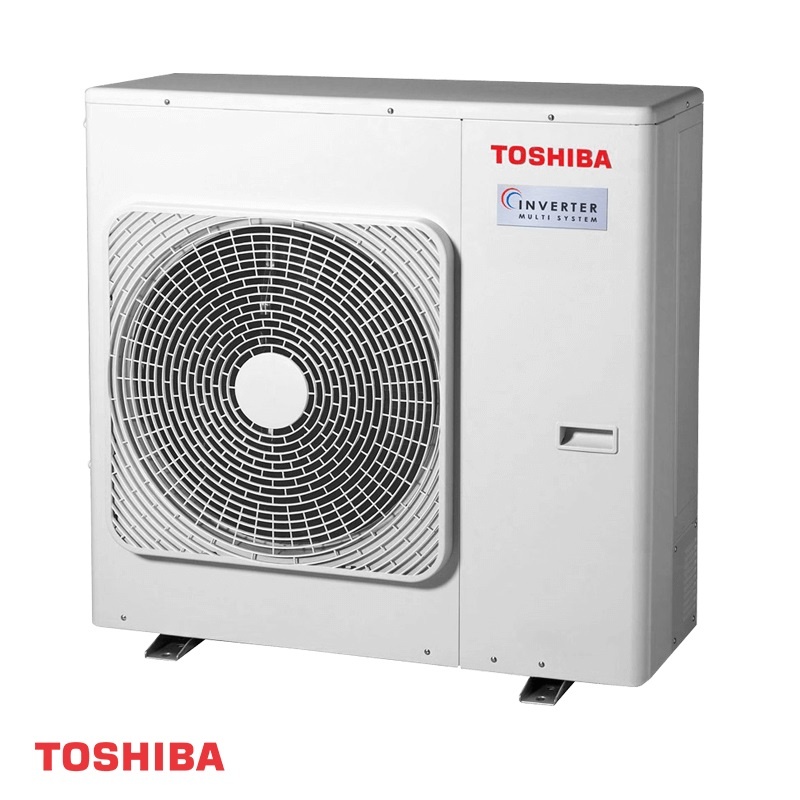

Toshiba outdoor unit air conditioning 27000 BTU (R32)

Solicită ofertă PDF

8.0 / 9.0 kW, A++ multi-inverter air conditioner for simultaneous and / or alternative use of 4 splitters

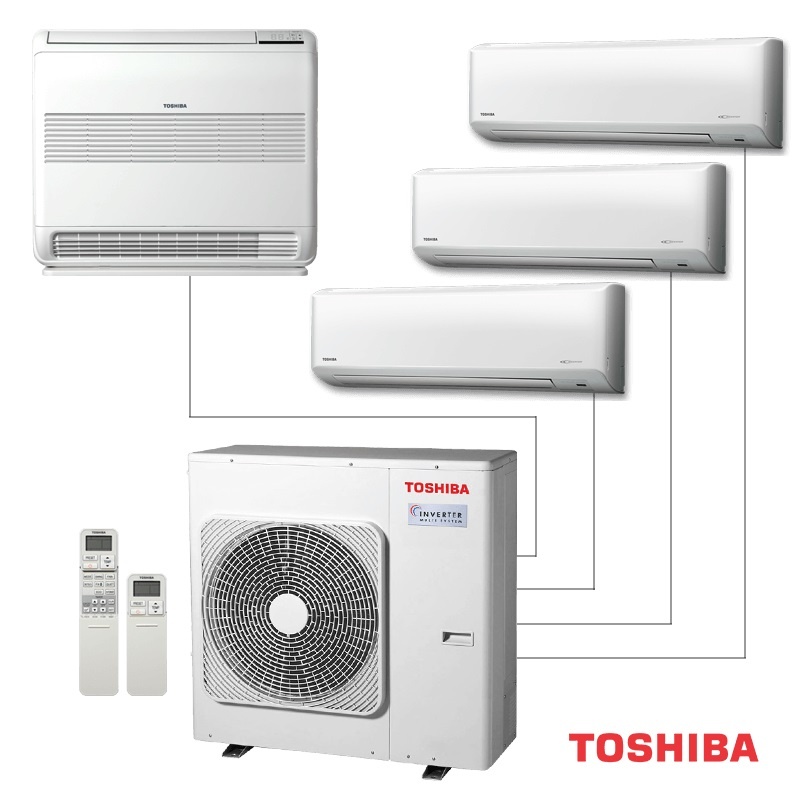

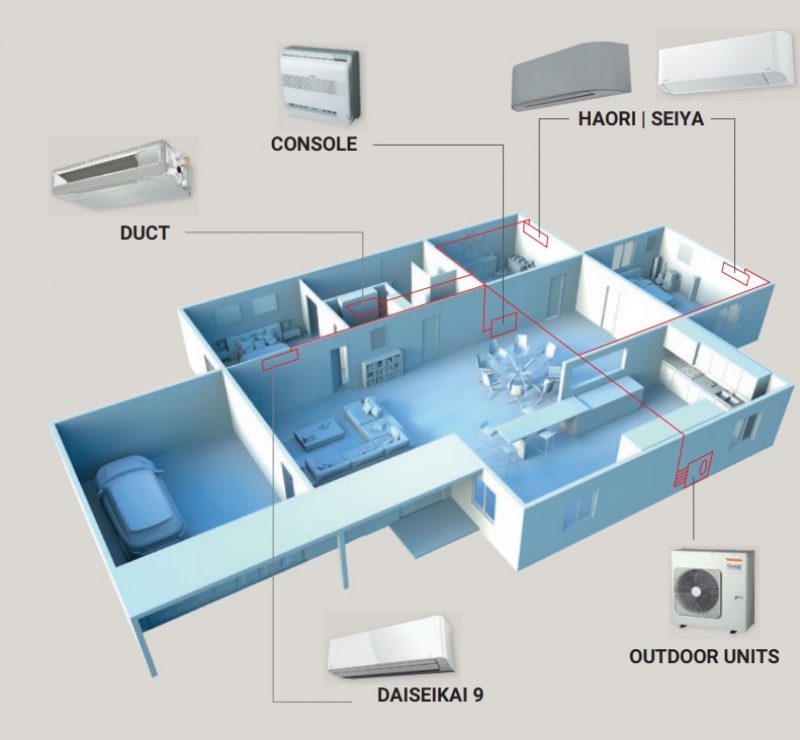

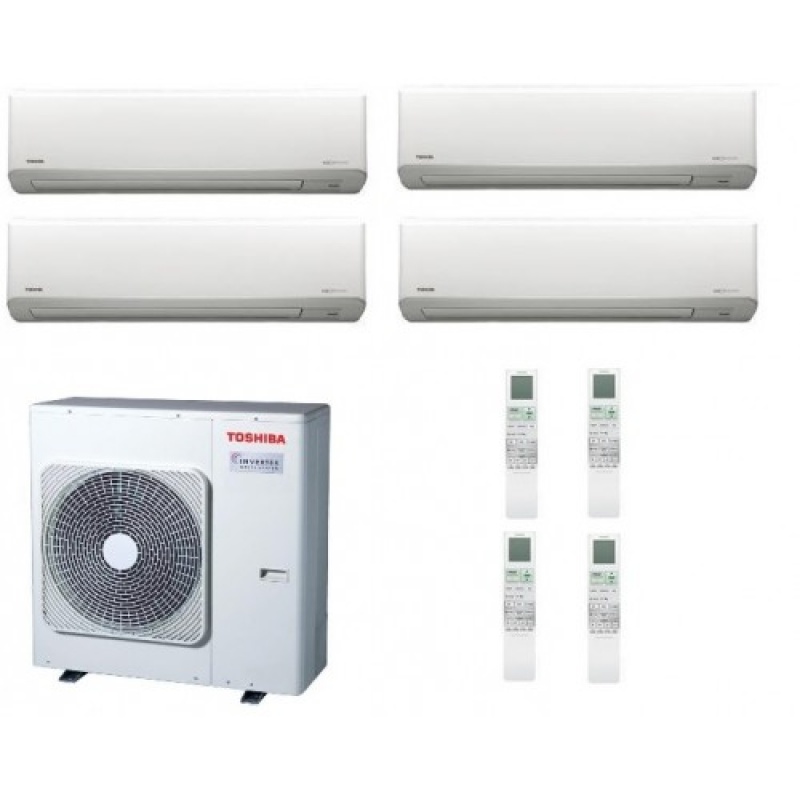

Toshiba multisplit outdoor unit for air conditioners with 4 splitters (either 4 indoor wall units or 4 different indoor units, chosen from the category of Toshiba indoor units - wall-mounted types, console types, duct or cassette type units).
Small functional air conditioner functional with ecological freon R32.
The perfect combination of elegance and technology!
Extremely quiet 27000 BTU outdoor air conditioning unit (Silent function), reliable, with intelligent defrost and extended temperature range at which it can operate (heat or frost).
Special applicability for houses, commercial buildings, boarding houses.

Refrigerant R32
Power supply 220-240/50/1 V/Hz/Ph
BTU cooling 27300 BTU
BTU heating 30700 BTU
Cooling capacity 8.0 kW
Heating capacity 9.0 kW
Energy class C A++
Energy class H A++
EER/COP 3.50/4.67 W/W
SEER/SCOP 6.11/4.26 W/W
No connectable IDUs 4
Air flow volume 2507 m³/h
Sound pressure level
- Răcire (cooling) : 48 db(A)
- Încălzire (heating) : 49 db(A)
Sound power level 63/64 db(A)
Net dimensions ODU (WxDxH) 900 x 320 x 890 mm
Piping connection liquid 6.35 x 4 mm
Piping connection gas 9.52 x 2 + 12.7 x 2 mm
Max. distance lenght ODU-IDU/total lenght 25/70 m
Max. distance height 15 m
Net weight ODU 72 kg
Refrigerant charge 2.40 kg
Operation ambient temp. range C -10 → 46 °C
Operation ambient temp. range H -20 → 24 °C
Compressor type Rotativ (rotary)

Outdoor units air conditioning
Modele		RAS-2M14U2AVG-E	RAS-2M18U2AVG-E	RAS-3M14U2AVG-E	RAS-3M26U2AVG-E	RAS-4M27U2AVG-E	RAS-5M34U2AVG-E
Refrigerant		R32	R32	R32	R32	R32	R32
Power supply (V/Hz/Ph)		220-240/50/1	220-240/50/1	220-240/50/1	220-240/50/1	220-240/50/1	220-240/50/1
BTU cooling (BTU)		14000	18000	18000	26000	27300	34100
BTU heating (BTU)		15000	19100	23200	30700	30700	41000
Cooling capacity (kW)		4.0	5.2	5.2	7.5	8.0	10.0
Heating capacity (kW)		4.4	5.6	6.8	9.0	9.0	12.0
Energy class C		A++	A++	A++	A++	A++	A++
Energy class H		A++	A++	A++	A++	A++	A++
No connectable IDUs		2	2	3	3	4	5
Air flow volume (m³/h)		1863	2107	2177	2507	2507	3245
Sound pressure level (db(A))	Răcire (cooling)	45	47	49	48	48	52
Sound pressure level (db(A))	Încălzire (heating)	46	50	50	49	49	55
Net dimensions ODU (WxDxH) (mm)		800 x 300 x 630	800 x 300 x 630	800 x 300 x 630	900 x 320 x 890	900 x 320 x 890	900 x 320 x 890
Piping connection liquid (mm)		6.35 x 2	6.35 x 2	6.35 x 3	6.35 x 3	6.35 x 4	6.35 x 5
Piping connection gas (mm)		9.52 x 2	9.52 x 2	9.52 x 2 + 12.7 x 1	9.52 x 1 + 12.7 x 2	9.52 x 2 + 12.7 x 2	9.52 x 3 + 12.7 x 2
Max. distance height (m)		10	10	10	15	15	15
Refrigerant charge (kg)		1.02	1.02	1.05	2.40	2.40	2.99
Operation ambient temp. range C (°C)		-10 → 46	-10 → 46	-10 → 46	-10 → 46	-10 → 46	-10 → 46
Operation ambient temp. range H (°C)		-20 → 24	-20 → 24	-20 → 24	-20 → 24	-20 → 24	-20 → 24
