Refco 10612-2 cylinder valve (R290 & R600a)

Robinet butelie freon Refco 10612-2 (R290 si R600a)

Refco 9881202: robinet butelii freon de unica folosinta

Ai observat o eroare?

COD DTN

505.46.1055

COD PRODUS

Robinet R290/R600a Refco 10612-2

ROBINET REFCO 10612-2 9881202

Solicită ofertă PDF

Refco 9881202: valve for disposable cylinders, especially R290 and R600, connections 1/4" SAE x 7/16"-28UNEF

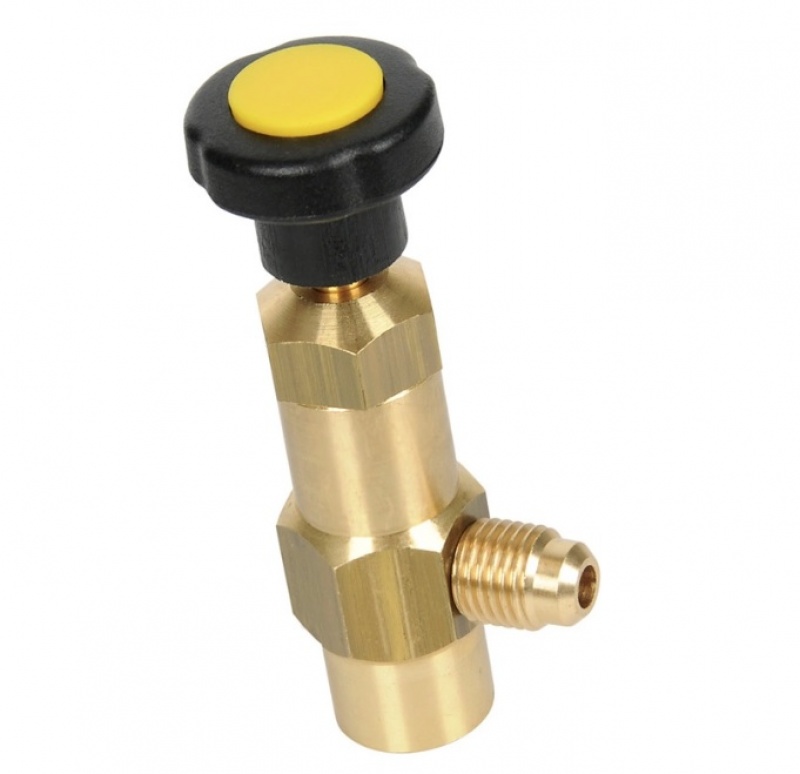

Disposable cylinder valve: Refco 10612-2 (9881202).
This R290 and R600a cylinder valve connects small disposable containers to service equipment.

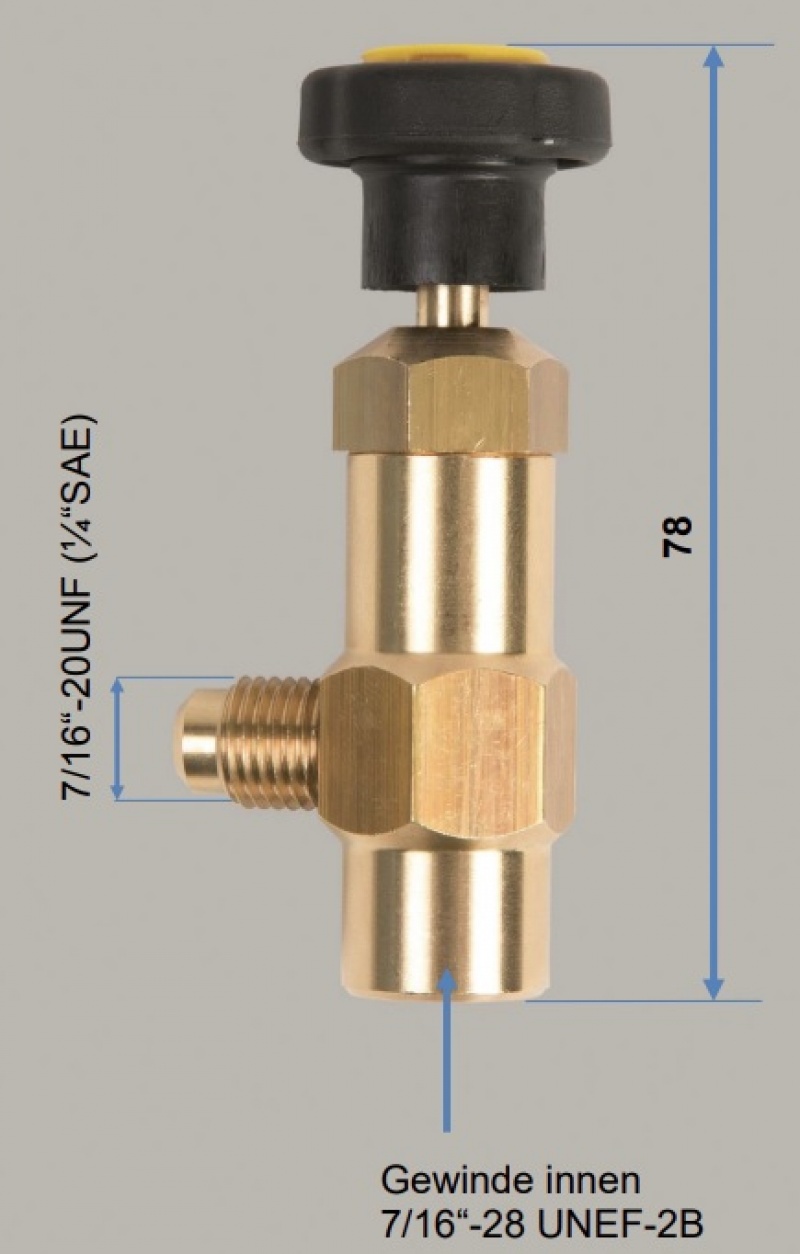

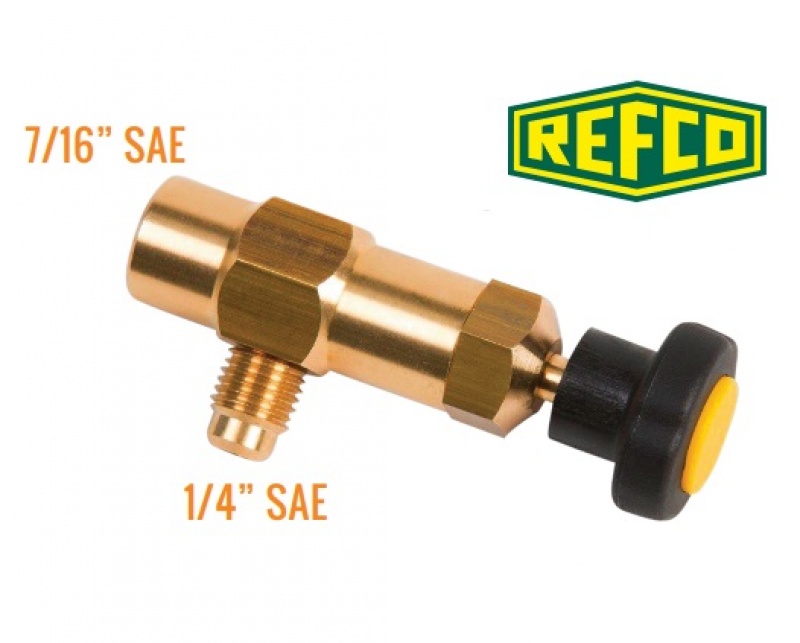

Refrigerant cylinder valve connections: 1/4" SAE external thread x 7/16"-28UNEF internal thread.
Also fits all refrigeration cans with 7/16"-28UNEF thread.
Ball valve compatible with R290 and R600a freon containers supplied by DTN Group.
Natural refrigerant service valve provided with a nipple and gasket at the 7/16 connection.

Specificații

Observations presiune maxima 60 bari (max 60 bar)
Refrigerant R134a, R290, R600
Description Robinet butelie freon (cylinder valve) R290 & R600a 1/4" SAE x 7/16"-28UNEF
Diameters (") 1/4 → 7/16 "
Colour galbenă (yellow)

Tabel comparativ

Valves
Modele	Refrigerant	Description	Diameters (") (")	Colour
Tecnosystemi 11132036	R134a R404A R407C R22	Intrare cu filet exterior, ieșire cu filet interior (inlet with outer thread, exit with inner thread) - 1/4" SAE M x 1/4" F SAE; mufă dreaptă (straight)	1/4 → 1/4	roșie (red) albastră (blue) galbenă (yellow)
Tecnosystemi 11132039	R410A R32	Intrare cu filet exterior, ieșire cu filet exterior (inlet with outer thread, exit with outer thread) - 5/16" SAE M x 5/16" F SAE; mufă dreaptă (straight)	5/16 → 5/16	roșie (red) albastră (blue) galbenă (yellow)
Tecnosystemi 11133026	R407C R22	1/4 COMPRESSOR VALVE	5/16 → 1/4	albastră (blue)
Tecnosystemi 11133027	R410A R32	5/16 COMPRESSOR VALVE	5/16 → 5/16	roz (pink)
Robinair RA BV 1/4 R	R134a R404A R407C R22	filet exterior (outer thread) - 1/4" FFL x 1/4" MFL; mufă dreaptă (straight)	1/4 → 1/4	roșie (red)
Robinair RA BV 1/4 B	R134a R404A R407C R22	filet exterior (outer thread) - 1/4" FFL x 1/4" MFL; mufă dreaptă (straight)	1/4 → 1/4	albastră (blue)
Robinair RA BV 1/4 Y	R134a R404A R407C R22	filet exterior (outer thread) - 1/4" FFL x 1/4" MFL; mufă dreaptă (straight)	1/4 → 1/4	galbenă (yellow)
Refco A-38410		Connector A: 5/16" SAE or 1/2"-20 UNF \| Valve core depressor \| Inside thread; Connector B: 1/4" SAE \| Outside thread \| Flare (Filetat)	5/16 → 1/4	roz (pink)
Refco A-33410	R410A R32	Conector A: 5/16" SAE sau 1/2"-20 UNF \| Depresor miez supapă (Valve core depressor ) \| Filet interior (Inside thread). Conector B: 1/4" SAE \| Filet exterior (Outside thread) \| Filet (Flare)	5/16 → 1/4	verde (green)
Robinet R290/R600a	R290 R600	Robinet butelie freon (cylinder valve) R290 & R600a SAE 1/4" M (tată) si NPT 7/16" F (mamă)	1/4 → 7/16	galbenă (yellow)
Robinet R290/R600a Refco 10612-2	R134a R290 R600	Robinet butelie freon (cylinder valve) R290 & R600a 1/4" SAE x 7/16"-28UNEF	1/4 → 7/16	galbenă (yellow)
Robinet R600a	R600	Robinet butelie freon (cylinder valve) R600a SAE 1/4" M (tată) si NPT 1/2" F (mamă)	1/4 → 1/2	verde (green)
