Refco access control valve A-33410 (1/4" x 5/16")

Supapa de control acces Refco A-33410 (4681645)

nou

Ai observat o eroare?

COD DTN

505.46.1074

COD PRODUS

Refco A-33410

ROBINTE DE INCHIDERE REFCO A-33410

Solicită ofertă PDF

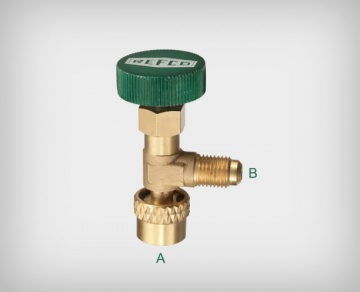

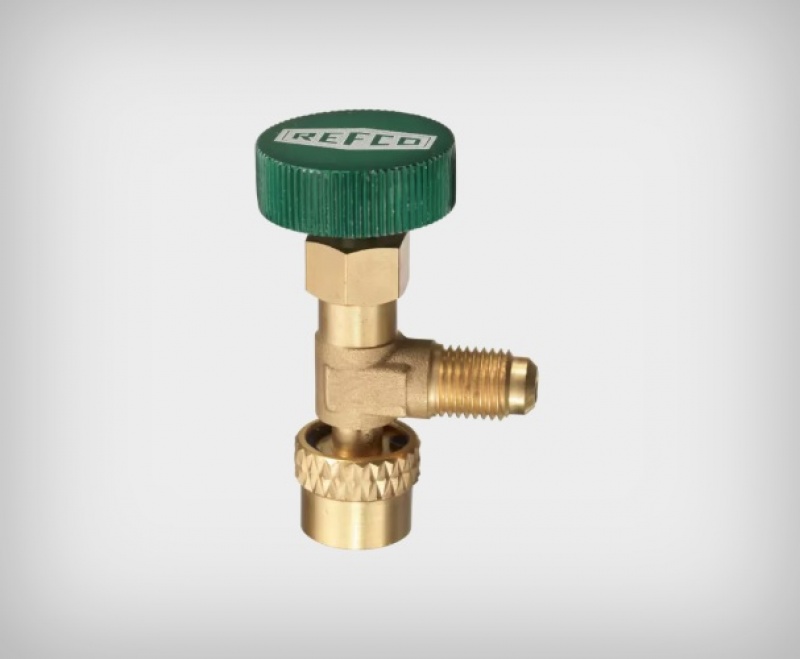

Refco A-33410 (4681645) access control valve for precise filling of the refrigeration system

Refco 4681645 service valve with Schrader valve pre-emption valve.
The valve closes the hose when the Schrader valve is closed.
This control valve allows access to cooling systems without refrigerant loss
Refco A-33410 connections: 1/4" SAE x 5/16" SAE (1/2"-20UNF).
Absolute leak resistance.
Working pressure: 60 bar.
Compatible with a wide range of common refrigerants, including: CFC, HCFC, HFC, HFO; example: R32, R410A.
Base material: brass and aluminum.
Weight: 95 grams.
Made in Switzerland.

Specificații

Observations compatibil cu (compatible with) CFC, HCFC, HFC, HFO
Refrigerant R410A, R32
Description Conector A: 5/16" SAE sau 1/2"-20 UNF | Depresor miez supapă (Valve core depressor ) | Filet interior (Inside thread). Conector B: 1/4" SAE | Filet exterior (Outside thread) | Filet (Flare)
Diameters (") 5/16 → 1/4 "
Colour verde (green)

Tabel comparativ

Valves
Modele	Refrigerant	Description	Diameters (") (")	Colour
Tecnosystemi 11132036	R134a R404A R407C R22	Intrare cu filet exterior, ieșire cu filet interior (inlet with outer thread, exit with inner thread) - 1/4" SAE M x 1/4" F SAE; mufă dreaptă (straight)	1/4 → 1/4	roșie (red) albastră (blue) galbenă (yellow)
Tecnosystemi 11132039	R410A R32	Intrare cu filet exterior, ieșire cu filet exterior (inlet with outer thread, exit with outer thread) - 5/16" SAE M x 5/16" F SAE; mufă dreaptă (straight)	5/16 → 5/16	roșie (red) albastră (blue) galbenă (yellow)
Tecnosystemi 11133026	R407C R22	1/4 COMPRESSOR VALVE	5/16 → 1/4	albastră (blue)
Tecnosystemi 11133027	R410A R32	5/16 COMPRESSOR VALVE	5/16 → 5/16	roz (pink)
Robinair RA BV 1/4 R	R134a R404A R407C R22	filet exterior (outer thread) - 1/4" FFL x 1/4" MFL; mufă dreaptă (straight)	1/4 → 1/4	roșie (red)
Robinair RA BV 1/4 B	R134a R404A R407C R22	filet exterior (outer thread) - 1/4" FFL x 1/4" MFL; mufă dreaptă (straight)	1/4 → 1/4	albastră (blue)
Robinair RA BV 1/4 Y	R134a R404A R407C R22	filet exterior (outer thread) - 1/4" FFL x 1/4" MFL; mufă dreaptă (straight)	1/4 → 1/4	galbenă (yellow)
Refco A-38410		Connector A: 5/16" SAE or 1/2"-20 UNF \| Valve core depressor \| Inside thread; Connector B: 1/4" SAE \| Outside thread \| Flare (Filetat)	5/16 → 1/4	roz (pink)
Refco A-33410	R410A R32	Conector A: 5/16" SAE sau 1/2"-20 UNF \| Depresor miez supapă (Valve core depressor ) \| Filet interior (Inside thread). Conector B: 1/4" SAE \| Filet exterior (Outside thread) \| Filet (Flare)	5/16 → 1/4	verde (green)
Robinet R290/R600a	R290 R600	Robinet butelie freon (cylinder valve) R290 & R600a SAE 1/4" M (tată) si NPT 7/16" F (mamă)	1/4 → 7/16	galbenă (yellow)
Robinet R290/R600a Refco 10612-2	R134a R290 R600	Robinet butelie freon (cylinder valve) R290 & R600a 1/4" SAE x 7/16"-28UNEF	1/4 → 7/16	galbenă (yellow)
Robinet R600a	R600	Robinet butelie freon (cylinder valve) R600a SAE 1/4" M (tată) si NPT 1/2" F (mamă)	1/4 → 1/2	verde (green)
