Refco HCL6-36-Y pressure gauge hose 9882169 (90 cm) 👉 DTN

Refco pressure gauge hose Refco HCL6-36-Y 9882169 (90 cm)

Furtun manometru Refco HCL6-36-Y 9882169 (90 cm)

Ai observat o eroare?

COD DTN

502.46.5275

COD PRODUS

Refco HCL6-36-Y 9882169 (90 cm)

FURTUN INCARCARE REFCO HCL6-36-Y 3/8 9882169

Solicită ofertă PDF

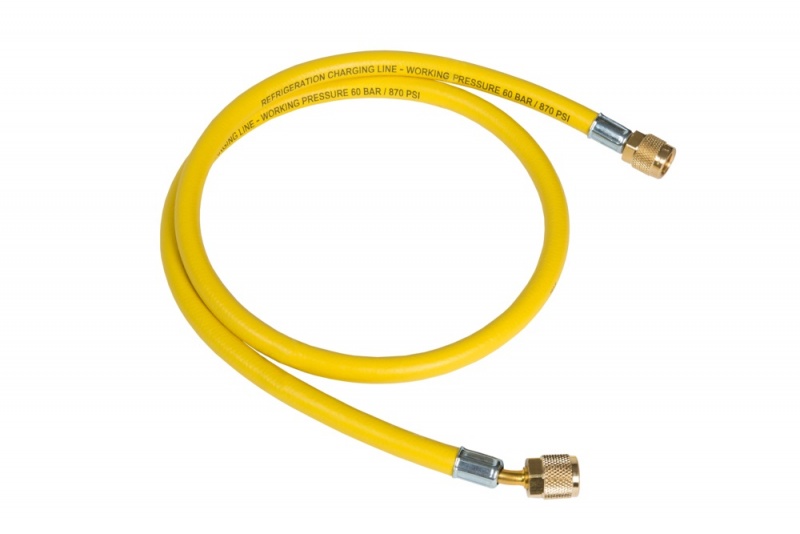

Refco 9882169 pressure gauge hose, 3/8" connection, yellow color, 90 cm long

Flexible hose for refrigerants, HCL range, for vacuuming and high capacity pressure gauges.
High quality material for maximum service life, against hardening and embrittlement.
Refco HCL6-36-Y 9882169 (90 cm), yellow color.
Most common application: charging hose for automotive air conditioning systems with R134a.
Threaded connection (SAE) 3/8” at both ends.
Refco hose with replaceable PTFE seals, with explosion protection.
Maximum working pressure: 60 bar / 870 psi.
The gasket of the Refco flexible hose, as well as the PTFE seal, have been equipped with a newly invented quick-release system to prevent them from falling out of the hose.
Base materials: brass and rubber.
Net weight: 0.45 kg.

Specificații

Observations
Refrigerant R134a
Description individual; conexiune (connections): 3/8" SAE | garnitura (sealing): PTFE; presiune lucru (working pressure): 60 bar
Lenght 90 mm
Colour galben (yellow)

Tabel comparativ

Refco hoses
Modele	Refrigerant	Description	Lenght (mm)	Colour
Refco CL-6Y 9881274 (15 cm)		individual; conexiune (connections): 1/4" SAE \| bend (unghi) 45°; garnitura (sealing): PTFE; presiune lucru (working pressure): 60 bar	150	galben (yellow)
Refco HCL6-36-Y 9882169 (90 cm)	R134a	individual; conexiune (connections): 3/8" SAE \| garnitura (sealing): PTFE; presiune lucru (working pressure): 60 bar	90	galben (yellow)
Refco CL-36Y 9881271 (90 cm)		individual; conexiune (connections): 1/4" SAE \| bend (unghi) 45°; garnitura (sealing): PTFE; presiune lucru (working pressure): 60 bar	90	galben (yellow)
Refco CL-48R 9881261 (120 cm)		individual; conexiune (connections): 1/4" SAE \| bend (unghi) 45°; garnitura (sealing): PTFE; presiune lucru (working pressure): 60 bar	120	roșu (red)
Refco CL-48Y 9881270 (120 cm)		individual; conexiune (connections): 1/4" SAE \| bend (unghi) 45°; garnitura (sealing): PTFE; presiune lucru (working pressure): 60 bar	120	galben (yellow)
Refco CL-48B 9881252 (120 cm)		individual; conexiune (connections): 1/4" SAE \| bend (unghi) 45°; garnitura (sealing): PTFE; presiune lucru (working pressure): 60 bar	120	albastru (blue)
Refco CCL-36 9881278 (90 cm)		set 3 buc (set of 3); conexiune (connections): 1/4" SAE \| bend (unghi) 45°; garnitura (sealing): PTFE; presiune lucru (working pressure): 60 bar	900	roșu (red) albastru (blue) galben (yellow)
Refco CCL-60 9881276 (150 cm)		set 3 buc (set of 3); conexiune (connections): 1/4" SAE \| bend (unghi) 45°; garnitura (sealing): PTFE; presiune lucru (working pressure): 60 bar	1500	roșu (red) albastru (blue) galben (yellow)
Refco CA-CCL-60 5/16" 4688472 (150 cm)	R410A R32	set 3 buc (set of 3); conexiune (connections): 5/16“SAE \| bend (unghi) 45°; garnitura (sealing): PTFE; presiune lucru (working pressure): 60 bar	1500	roșu (red) albastru (blue) galben (yellow)
Refco CCL-72 9881275 (180 cm)		set 3 buc (set of 3); conexiune (connections): 1/4" SAE \| bend (unghi) 45°; garnitura (sealing): PTFE; presiune lucru (working pressure): 60 bar	1800	roșu (red) albastru (blue) galben (yellow)
