Swinging door from soft plastic (MPD range)

Single or double swing door with flexible opening, 7 mm thick, soft plastic, MPD range

  • Door separating work areas, MPD range, with flip-flap type opening.
  • Traffic door made of 7 mm thick soft plastic.
  • The perimeter area of ​​the swing door for separating work areas is made of anodized aluminum profile.
  • The refrigerator pivoting door equipped with a spring return mechanism.

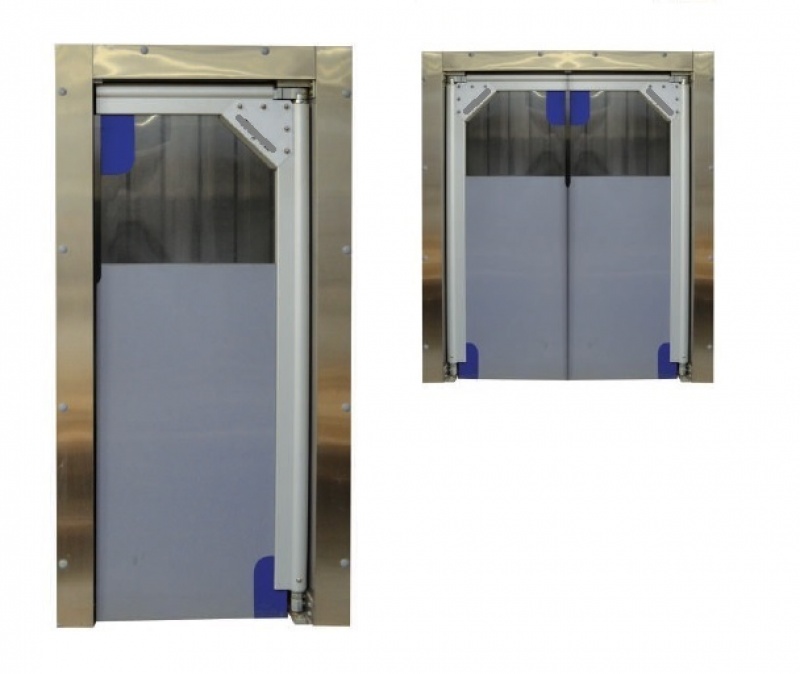

  • The traffic flip-flap door from the MPD range can be ordered single or in double format (door opening left-right, inside-outside).
  • Transparent plastic an upper third, matte plastic the rest.

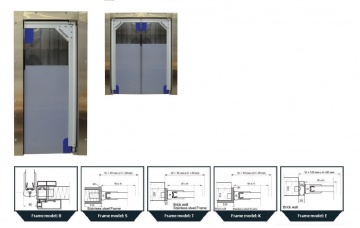

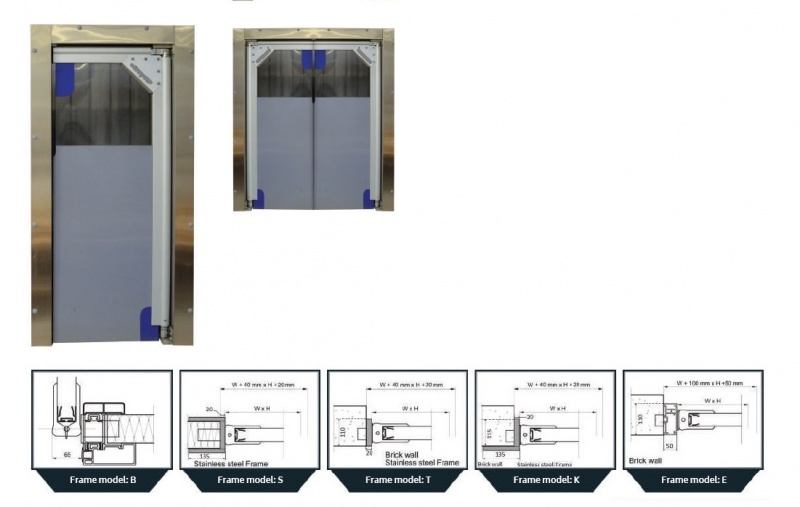

  • To choose the door frame (panel or wall fixing area) you can choose between the B, S, K, T or E frame.
  • The largest left or right opening door width can be 1500 mm (3000 mm for the double pivoting version), the maximum height for the MPD range being 2500 mm.
  • Application: canteen reversible door, cold room traffic door, food preparation positive temperatures, laboratory work space separation door, pharmacy storage door, technical door for various products, etc.

Specificații

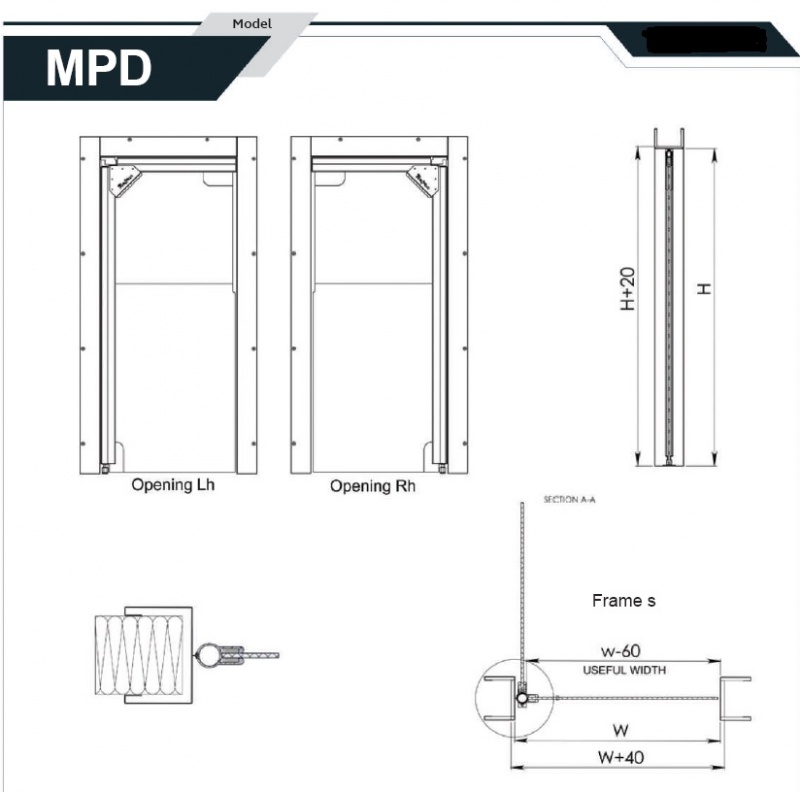

  • Dimensions (W x D x H) max. 1500 (3000) x 7 x max. 2500 mm
  • Door opening spre dreapta (towards right), spre stânga (towards left)
  • Temperature range > 0°C
  • Thermal resistance (M² x 0°C)/W
  • Density of raw material kg/m3
  • Included heating cable - W/m; V
  • Door type batanta flip-flap (swinging)

Tabel comparativ

Swinging doors
Modele Dimensions (W x D x H) (mm)Door openingTemperature rangeThermal resistance ((M² x 0°C)/W)Density of raw material (kg/m3)Included heating cable (W/m; V)
DF doormax. 1500 (3000) x 40 x max. 2500spre dreapta (towards right)
spre stânga (towards left)
> 0°C43
KPD doormax. 1200 (2400) x 15 x max. 2500spre dreapta (towards right)
spre stânga (towards left)
> 0°C-
MPD doormax. 1500 (3000) x 7 x max. 2500spre dreapta (towards right)
spre stânga (towards left)
> 0°C-
