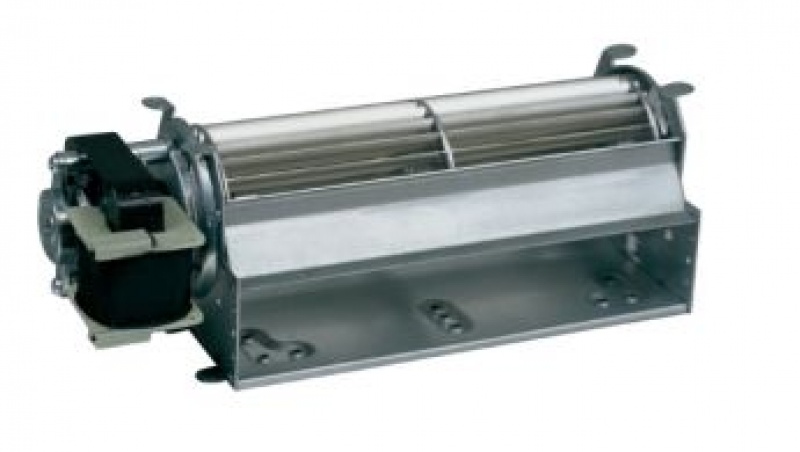

WIND tangential fan, YGF60.360

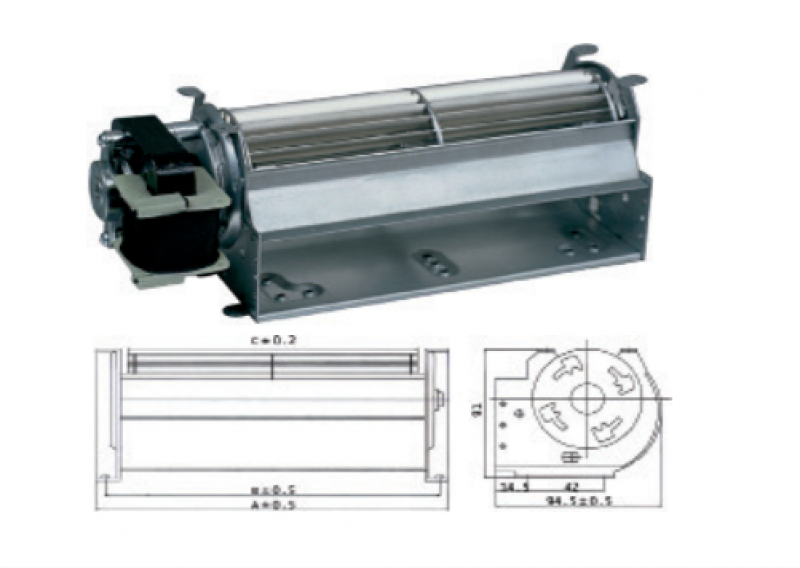

WIND ventilator tangențialWIND ventilator tangențial (schiță)
qr Ai observat o eroare?

COD DTN

  • 524.57.1030

COD PRODUS

Solicită ofertă PDF

Tangential fan for commercial applications, 360 mm

  • Fan used especially for cold air directioning into refrigeration equipments.

Specificații

  • Power 55 W
  • Displacement 270 m³/h
  • Revolutions per minute 2500 rpm
  • Current 0,58 A
  • Dimensions
    • A : 386 mm
    • B : 376 mm
    • C : 360 mm

Tabel comparativ

Tangential fans
Modele Power (W)Displacement (m³/h)Revolutions per minute (rpm)Dimensions (mm)
ABC
YGF60.12019922500146136120
YGF60.183281402500206196183
YGF60.240351752500266256240
YGF60.300462302500326316300
YGF60.360552702500386376360
YGF60.420643102500446436420
YGF60.480733542500506496480
