Alco thermostatic valve TIS-MW 802447

Valvă de expensiune Alco TIS/TISE
qr Ai observat o eroare?

COD DTN

  • 201.04.1130

COD PRODUS

Solicită ofertă PDF

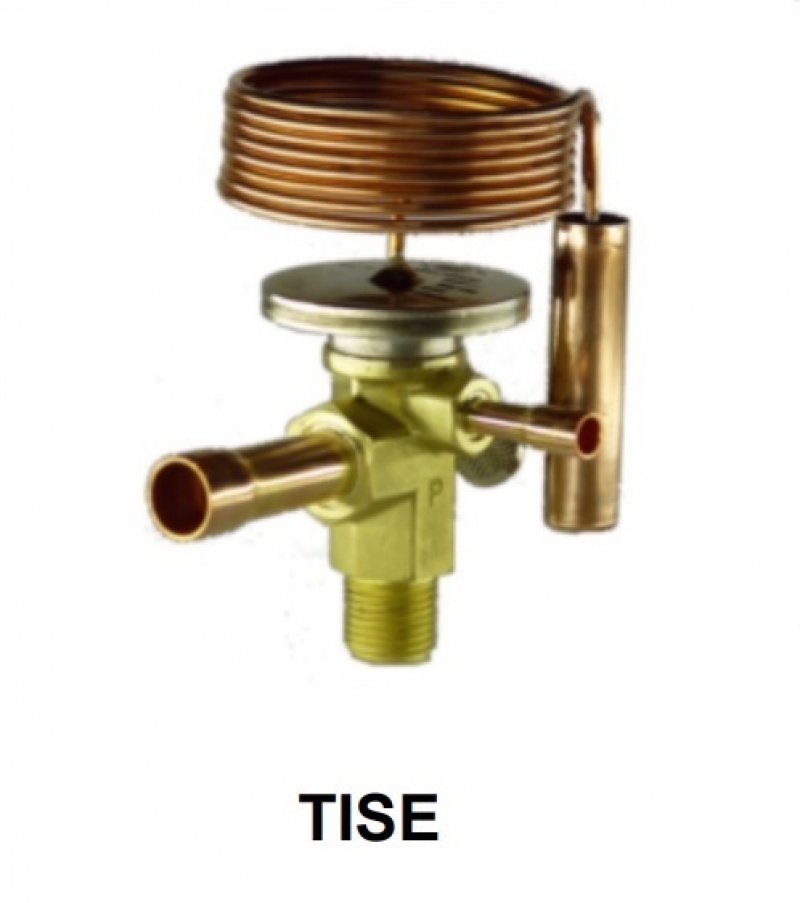

Thermostatic expansion valve, TI (TIS/TISE) range

  • Pressure equalization: internally equalized.
  • Thermostatic expansion valve regulates the injection of refrigerant liquid into evaporators.

Specificații

  • Refrigerant R134a
  • MOP Fără MOP (No MOP)
  • Domain -45°C...+20°C
  • Equalizer int.
  • Capillary tube length 1,5 m
  • Inlet x out. connections
    • inch : 5/8 x 1/2
    • mm : 16 x 12

Tabel comparativ

Alco TIS/TISE thermostatic valves
Modele ConnectionInlet x outletNominal capacity (kW)RefrigerantMOPDomainEqualizer
TIS-HW 802422R22Fără MOP (No MOP)-45°C...+20°Cint.
TISE-HW 802423R22Fără MOP (No MOP)-45°C...+20°Cext.
TISE-HW100 802431R22MOP +15°C-45°C...+12°Cext.
TIS-NW 802437R407CFără MOP (No MOP)-45°C...+20°Cint.
TISE-NW 802438R407CFără MOP (No MOP)-45°C...+20°Cext.
TIS-MW 802447R134aFără MOP (No MOP)-45°C...+20°Cint.
TISE-MW 802448R134aFără MOP (No MOP)-45°C...+20°Cext.
TISE-MW55 802457R134aMOP +14°C-45°C...+10°Cext.
TIS-SW 802461R404A
R507A		Fără MOP (No MOP)-45°C...+20°Cint.
TIS-SAD-10 802478R404A
R507A		MOP +10°C-45°C...0°Cint.
TISE-SW 802462R404A
R507A		Fără MOP (No MOP)-45°C...+20°Cext.
TISE-SAD-10 802479R404A
R507A		MOP +10°C-45°C...0°Cext.
TISE-SW75 802471R404A
R507A		MOP 0°C-45°C...-3°Cext.
1/4"
TISE-SAD-20 802474R404A
R507A		MOP -20C-45°C...-27°Cext.
