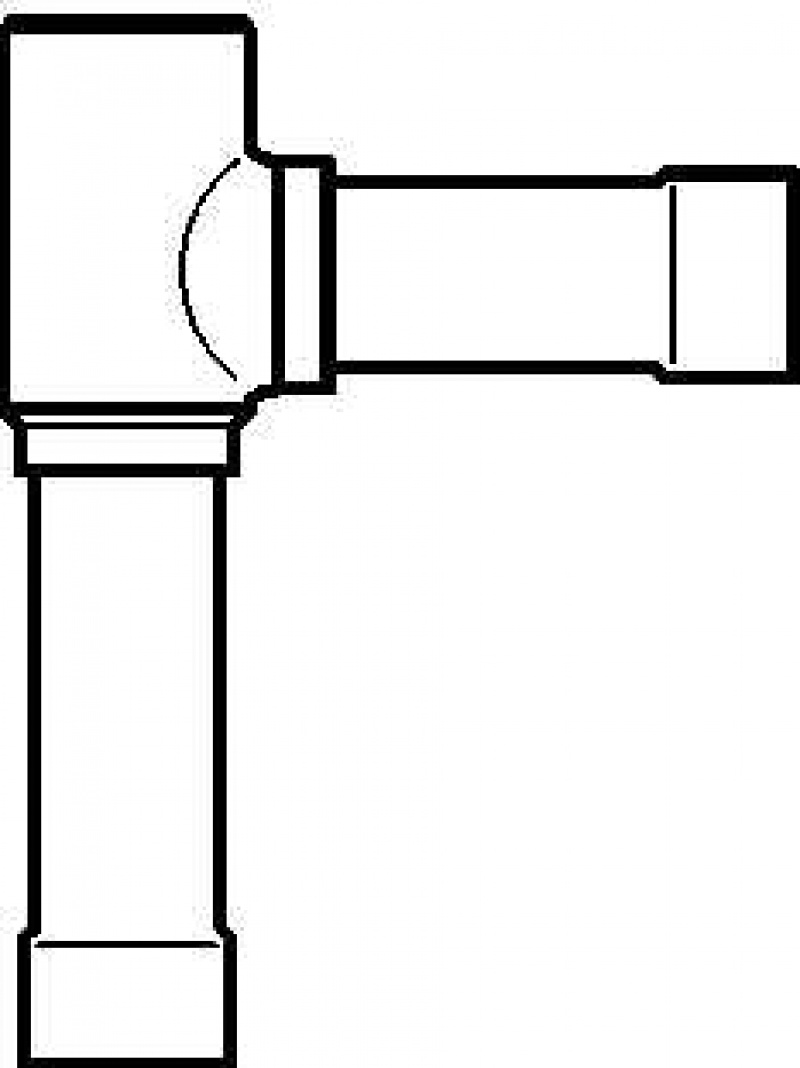

Angleway check valve NRV28/020-1021

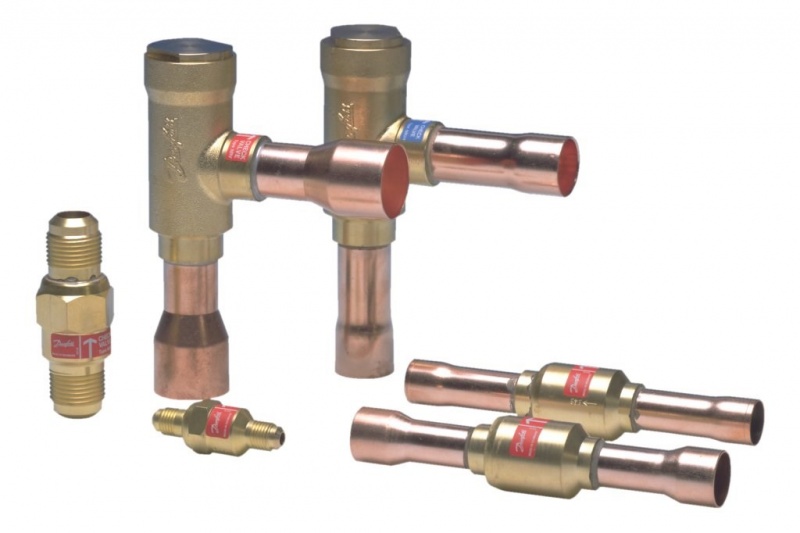

Danfoss check valve, NRV range, solder connection
- Can be used in liquid suction and hot gas lines in refrigeration and air conditioning plant with HCFC. HFC and
HC flammable refrigerants.
- The valves ensure the correct flow direction and prevent back-condensation from a warm part of the system to the cold evaporator.
- Equal connections (") 1-1/8 "
- Equal connection (mm) - mm
- Connection sudabilă (solder)
- Inlet x out. connections
- inch : 1-1/8 x 1-1/8
- mm : -
- Min. pressure drop 0,04 bar
Angleway check valve NRV28/020-1021
