Aspen Mini Blanc (12 l/h) condensate pump

nou

Solicită ofertă PDF

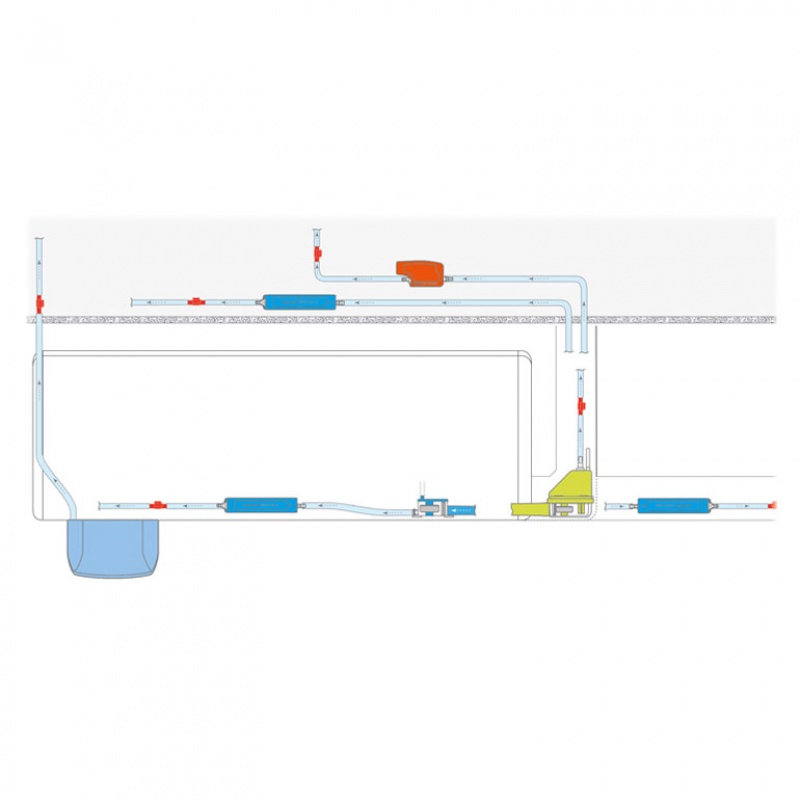

The ‘ultra quick fit’ Mini Blanc is designed to be fitted beneath high wall indoor units and offers easy access for future maintenance

Max. rec. heade of 10 meters.
Low noise level of 21 db(a) @ 1m.

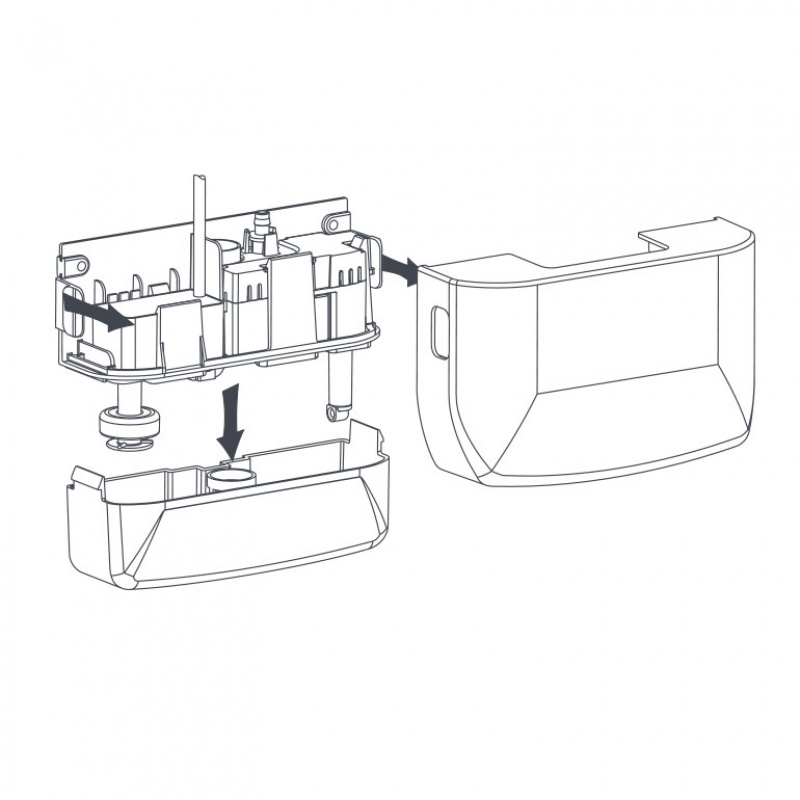

Extra quick to fit, compact & discreet, clear removable reservoir, ultra quiet operation.

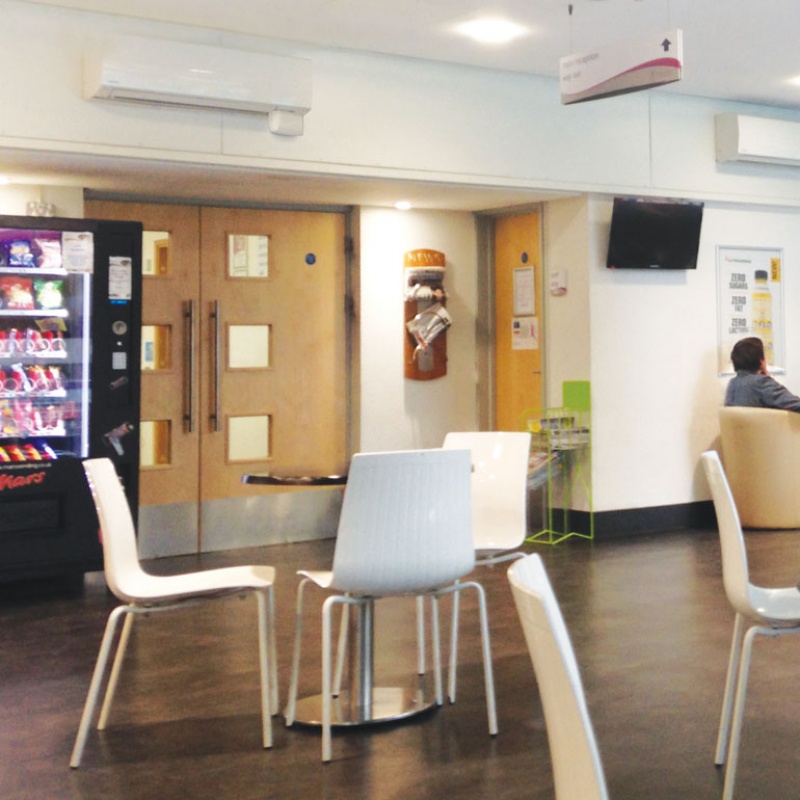

Perfect for domestic use – where easy maintenance is key the unit.

Max. flow 12 l/h
Max. rec. head
- m : 10 m
- obs. : flux 4 l/h m
Max. unit output
- kW : 16
- BTU : 54000
Sound pressure (at 1 m) 21 db(A)

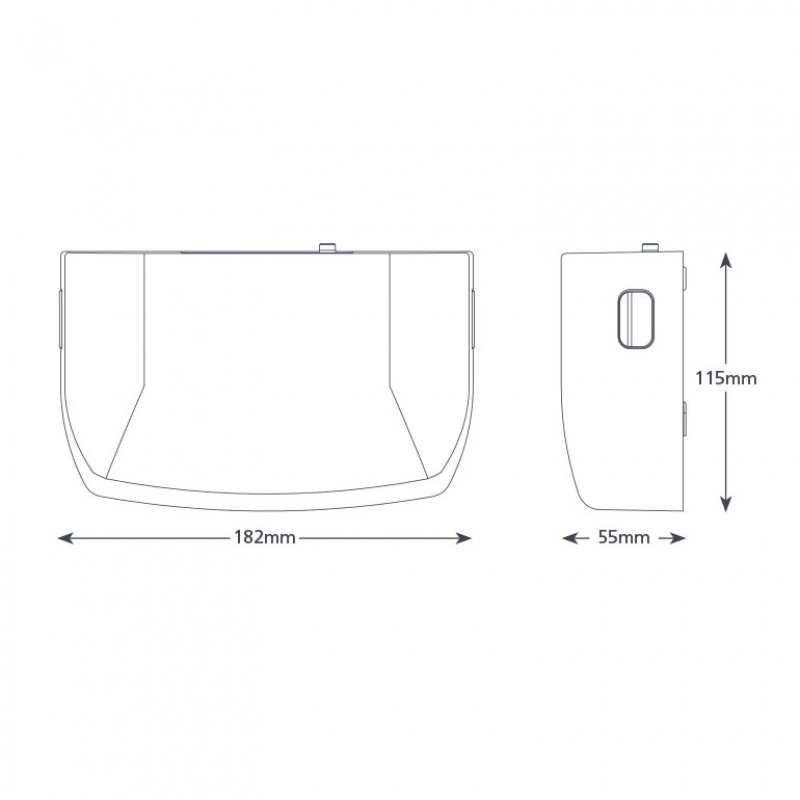

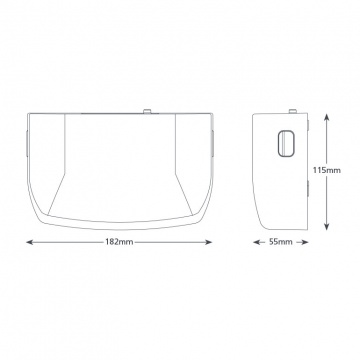

Condensate pump dimensions
- corp pompă (pump body) : 182 x 55 x 115 mm
- corp cadru (frame body) : 182 x 55 x 115 mm
Weight 0.7 kg
Colour albă (white)

Condensate pumps
Modele		Pompa de condens Cooleo Mini (13.2 l/h)	Pompa de condens Aspen Mini Aqua (12 l/h)	Pompa de condens Aspen Mini Blanc (12 l/h)	Pompa de condens Aspen Mini Orange (12 l/h)	Pompa de condens Aspen Silent+ Mini Orange (35 l/h)	Pompa de condens Aspen Max Hi-Flow (550 l/h)
Max. flow (l/h)		13.2	12	12	12	35	550
Max. rec. head (m)	m	10	10	10	10	10	5
Max. rec. head (m)	obs.		flux 6 l/h	flux 4 l/h	flux 6 l/h	flux 6 l/h	flux 55 l/h
Max. unit output	kW	10	16	16	16	40	774
Max. unit output	BTU	36000	54000	54000	54000	136000	2500000
Sound pressure (at 1 m) (db(A))			21	21	21	16	44
Condensate pump dimensions (mm)	corp pompă (pump body)	125 x 30 x 30	183 x 28 x 28	182 x 55 x 115	116 x 39 x 51	144.9 x 37.9 x 65.7	285 x 144 x 134
Condensate pump dimensions (mm)	corp cadru (frame body)	125 x 30 x 30	80 x 39 x 34	182 x 55 x 115	80 x 39 x 34	108 x 40 x 43	285 x 144 x 134
Weight (kg)		0.33	0.6	0.7	0.7	0.9	2.0
Colour		neagră (black)	albastră (blue)	albă (white)	portocalie (orange)	portocalie (orange)	albă (white)
