Bosch CS LD 1.0 leak detector

nou

Solicită ofertă PDF

Detector de scurgeri de refrigeranți halogenați și naturali (inclusiv R290 și R600), sensib. < 1 gr/an, geanta inclusa

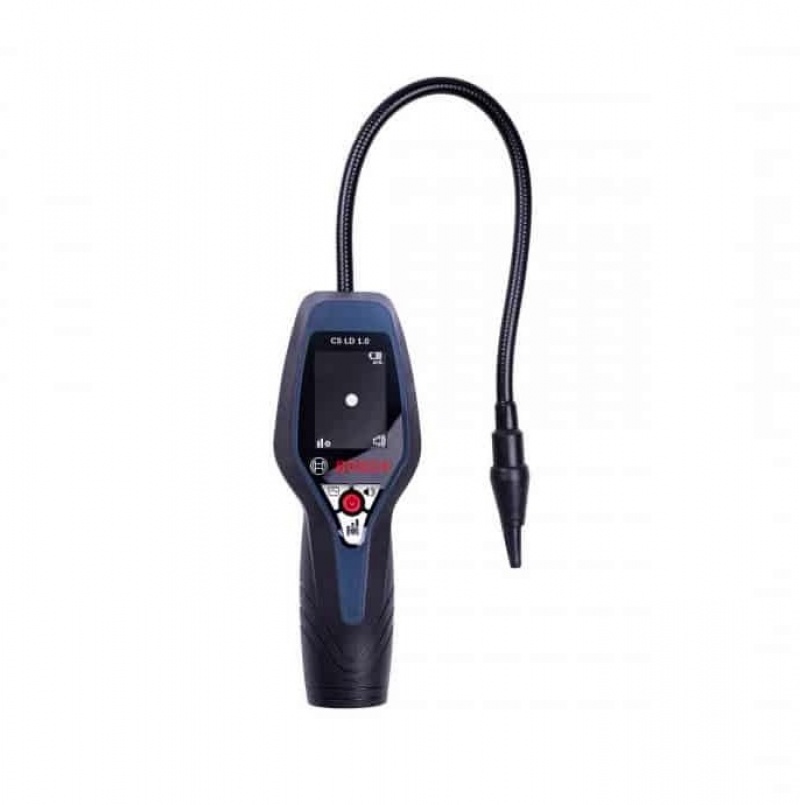

BOSCH CS LD 1.0 gas leak detector with sensitivity < 1 gr/year.
Detects: halogenated CFC, HCFC, HFC, HFO, HC refrigerants such as butane and propane, tracer gas (95%N2/5%H2 mixture) and ammonia.
Replaces the old ATP ZX-1A model.
Large 61 mm backlit graphic LCD.
Audible alarm with Mute and Visual Leak Size Indicator.
Special leak tracking function to identify hard-to-find leaks.
CS LD 1.0 sensor length: 413 mm.
Rubber keypad offering positive actuation and tactile feedback, ergonomic design with TPU overmold and ambidextrous operation.

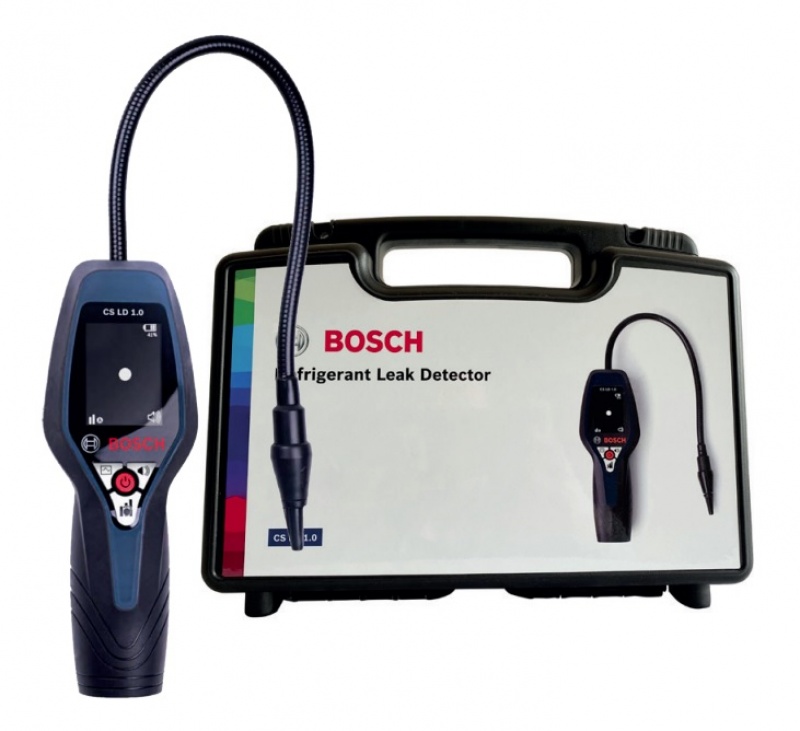

Gas detection kit including carrying case, spare filters and battery charger.
Battery active 8 hours/each charge.
Electronic sensor has a validity of > 5 years.
Weight: 452 gr.

Observations Senzor/probe: 41.3 cm. Alimentare/power supply: baterie reîncărcabilă/rechargeable battery li-Ion (8 ore funcționare/8 hours life)
Refrigerant R134a, R404A, R600a, R22, R410A, R32, R1234yf, R12, R502, R290, R600, R717, R454A
Temperature domain -20 → +50 °C
Ultimate sensibility 1 < gr/an(year)
Sensor life 100 → 150 ore (hours)

ATP-Bosch-TIF detectors
Modele	Refrigerant	Temperature domain (°C)	Ultimate sensibility (< gr/an(year))	Sensor life (ore (hours))
ATP ZX-1A	R134a R404A R22 R410A R32 R1234yf R12 R502	-20 → +50	1	100 → 150
Bosch CS LD 1.0	R134a R404A R600a R22 R410A R32 R1234yf R12 R502 R290 R600 R717 R454A	-20 → +50	1	100 → 150
TIF IR-1A	R134a R404A R22 R410A R32 R1234yf R12 R502	0 → 50	3	- → -
TIF XP-1A	R134a R404A R22 R410A R32 R1234yf R12 R502	-20 → +52	3	20 → 20
TIF RX-1A	R134a R404A R22 R410A R32 R1234yf R12 R502	-20 → +52	5	20 → 20
