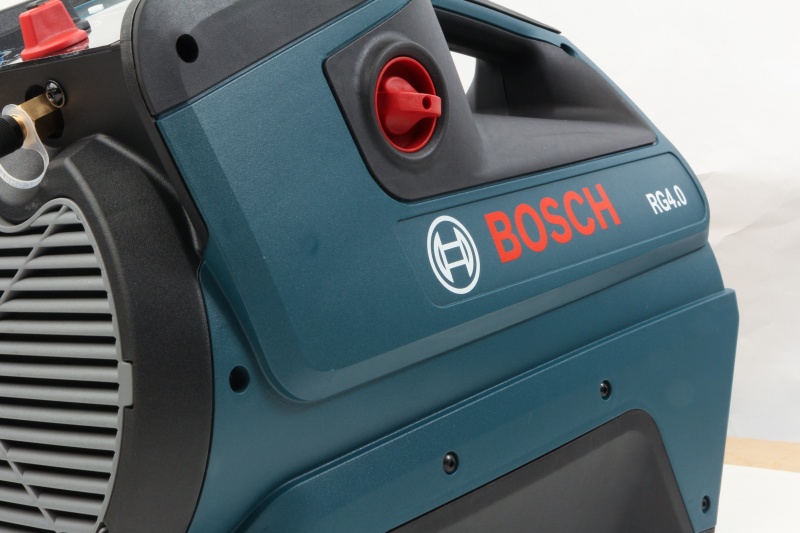

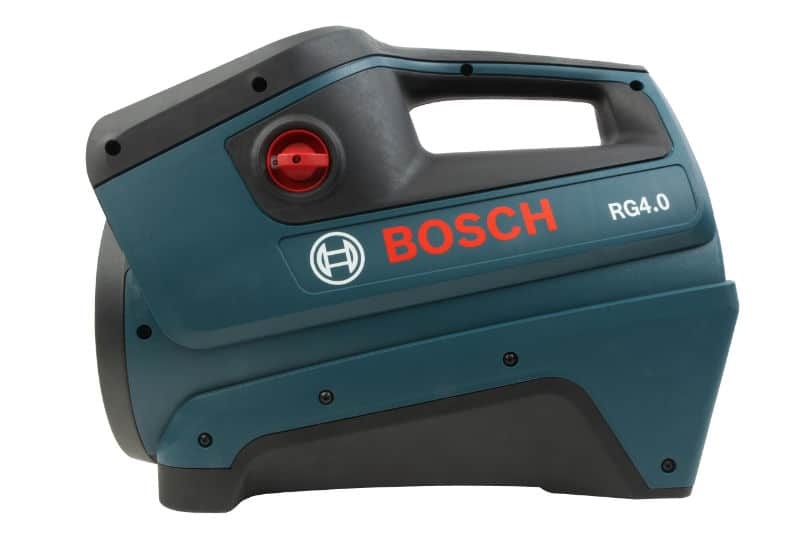

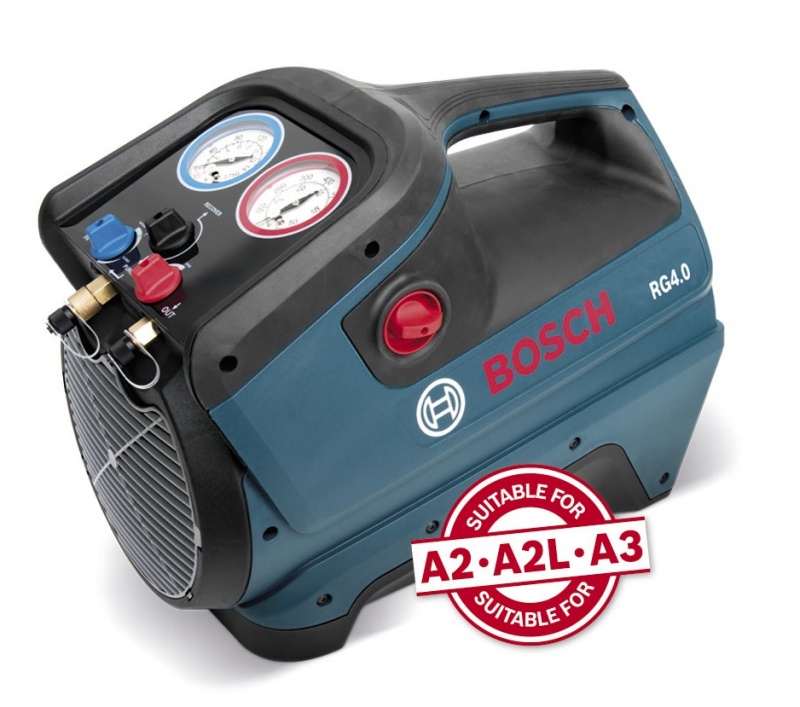

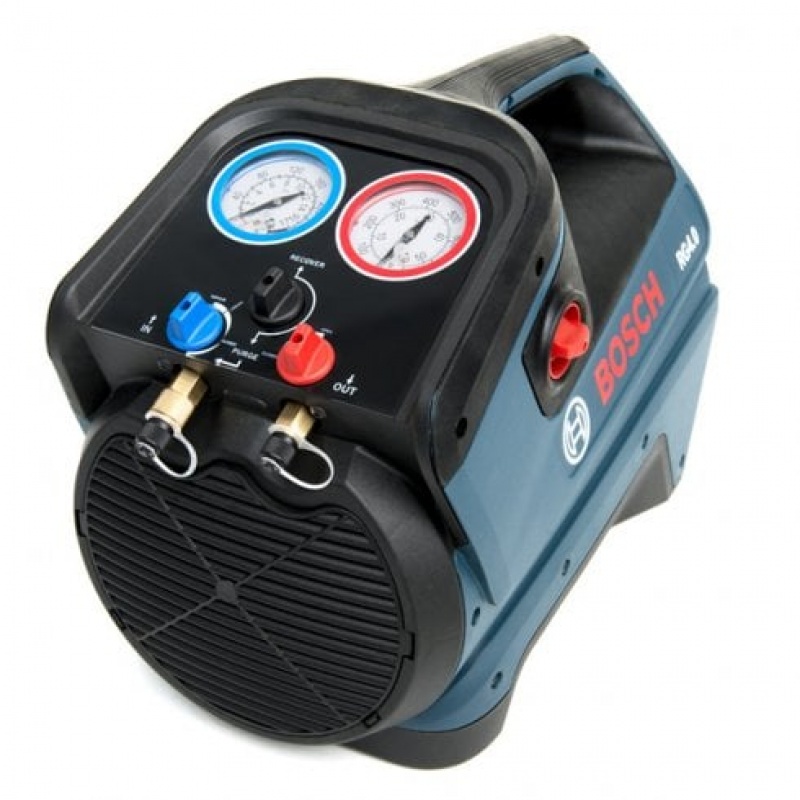

Bosch RG 4.0 A (R600A, R290) refrigerant recovery unit

Advanced refrigerant recovery unit for classes A2L + A3, including R600A+R290, 1/2 HP

  • Refrigerant recovery tool Bosch RG 4.0 A (230 VAC +/- 10 %, 50 /60 Hz).
  • Professional industrial design with robust structure and impact resistance.
  • Perfectly adapted for HVAC-R refrigerant recoveries from classes A2L + A3 (propane, isobutane).
  • Bosch single-cylinder freon recuperator: stable, reliable and oil-free.
  • Rubber overmolded (TPE) handle for a secure grip.
  • The protective cover keeps dirt away from the gauges and controls.
  • Stands and legs specially designed to provide stability, noise and vibration isolation.
  • Refrigerant recovery power with Bosch RG 4.0: 1/2 HP (360W).
  • Safety pressure switch with automatic reset (38.5 bar).
  • High displacement electric fan first draws fresh air through the condenser for improved recovery rates in extreme conditions.
  • Low pressure switch for smooth operation. It stops when the ideal vacuum level is reached, thus preventing unnecessary operation and reducing wear.
  • R600/R290 recuperator weight: 14.6 Kg.
  • Made in EU: Germany.

Specificații

  • Observations AHRI cat. / Kat. / cat. III, IV, V + A2L, A3
  • Weight 14.6 kg
  • Power supply 220-240/50/1 V/Hz/Ph
  • Refrigerant R404A, R407C, R600a, R407A, R22, R410A, R32, R134A, R1234yf, R12, R500, R502, R401A, R401B, R402A, R402B, R409A, R417A, R422A, R422D, R427A, R290, R401C, R407D, R408A, R507, R509
  • Dimensions (W x D x H) 250 x 450 x 350 mm
  • Gas recovery capacity 10.7 kg/h
  • Liquid recovery capacity 410.5 kg/h
  • Cylinders no. 1

Tabel comparativ

Bosch-Promax recovery units
Modele Weight (kg)Power supply (V/Hz/Ph)RefrigerantGas recovery capacity (kg/h)Liquid recovery capacity (kg/h)Cylinders no.
ECOMAX-E8220-240/50/1
110-120/50-60/1
R410A
R32
R1234ze
R1234yf
6.5446.61
MINIMAX-E11220-240/50/1
110-120/50-60/1
R410A
R32
R1234ze
R1234yf
9.0090.01
RG 5410A-E13.5220-240/50/1
110-120/50-60/1
R410A
R32
R1234ze
R1234yf
9.60111.01
RG 6-E14.5220-240/50/1
110-120/50-60/1
R410A
R32
R1234ze
R1234yf
15.0211.82
RG 4.014.6220-240/50/1R404A
R407C
R600a
R407A
R22
R410A
R32
R134A
R1234yf
R12
R500
R502
R401A
R401B
R402A
R402B
R409A
R417A
R422A
R422D
R427A
R290
R401C
R407D
R408A
R507
R509
10.7410.51
