Castel shell 4413/11A for solid cores

Carcasa Castel 4413/11A pentru cartuse filtrante

Ai observat o eroare?

COD DTN

203.14.1070

COD PRODUS

4413/11A

Solicită ofertă PDF

Refrigeration filter cartridge housing, 1-3/8" (35 mm) threaded connections, capacity 3 solid cores

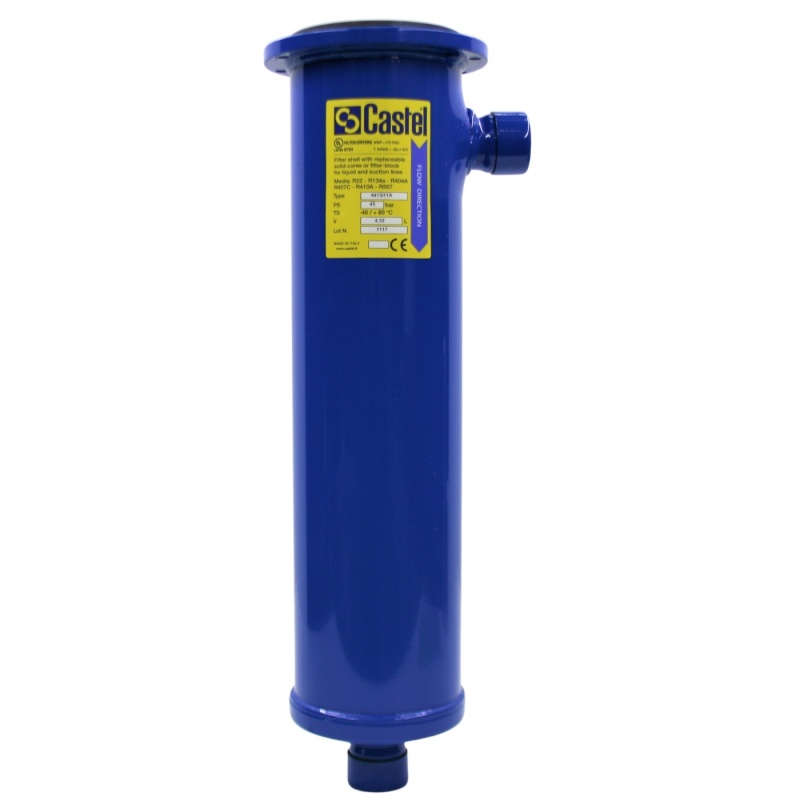

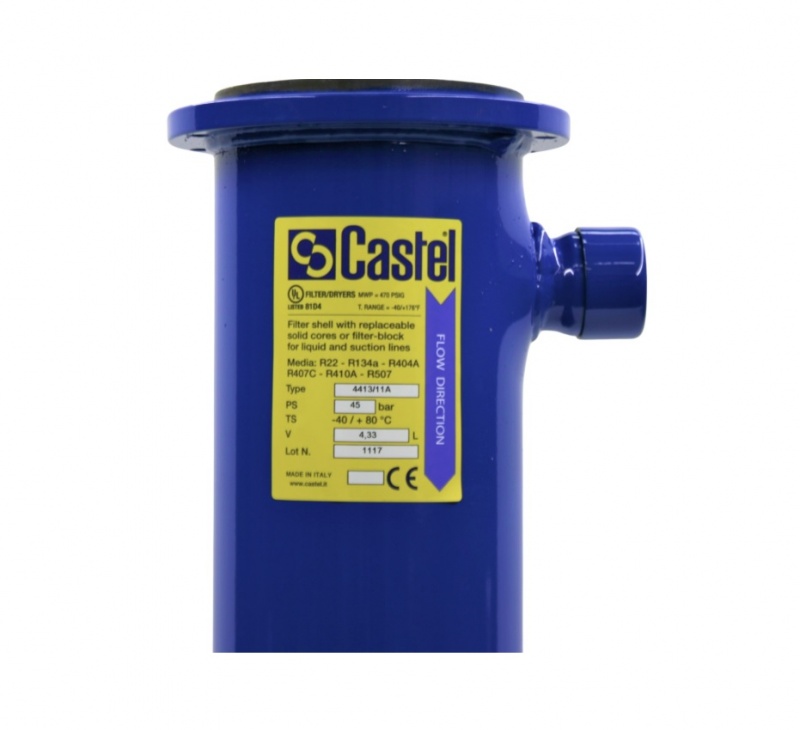

Castel 4413/11A shell for replaceable solid filter (capacity of 3 solid cores*).
Professional metal tube with the role of housing a replaceable filter drier.
Industrial HVAC-R applications.
High quality of copper threaded connections: 54 mm.
Castel 4413/11A with nominal volume: 2400 cm³.
Temperature range: -40ºC ... +80ºC.
Castel Classic range for A1 refrigerants (ASHRAE STANDARD 34-2019).
Compatible solid cores (filters)*:
4490/A H-48 Castel

4490/B H-48 Castel

4490/AA Castel

4490/AB Castel

4490/BA Castel

4490/BB Castel.

*sold separately.

Specificații

Observations racord sudabil (solder connection)
Inlet x out. connections
- inch : 1-3/8 x 1-3/8
- mm : 35 x 35
Shell no. 3
Compatible with solid core
Refrigerant R134a, R404A, R507A, R407C, R452A, R448A, R449A, R513A, R22, R410A, R450A, R1234ze, R515A

Tabel comparativ

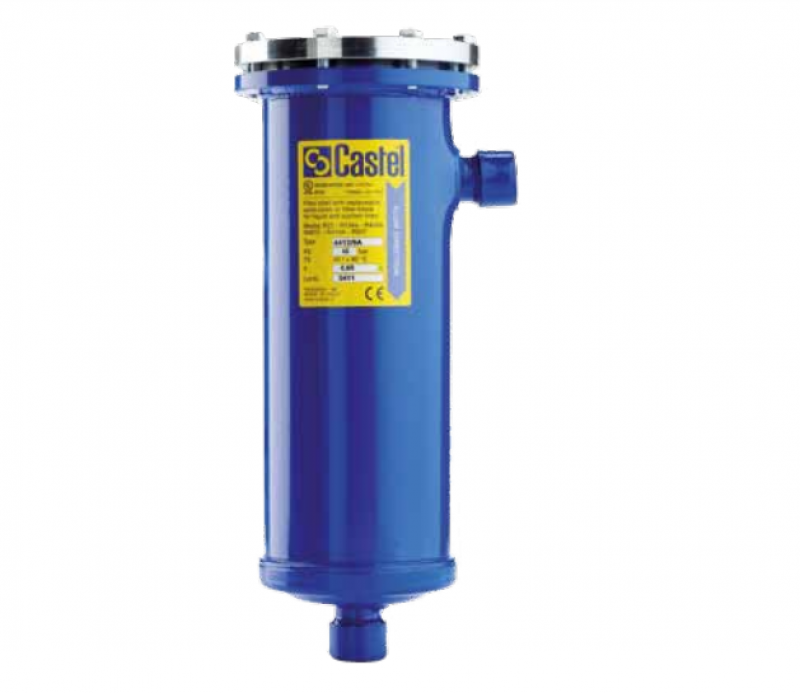

Castel shells for solid cores
Modele	Observations	Inlet x out. connections		Shell no.	Compatible with solid core
Modele	Observations	inch	mm	Shell no.	Compatible with solid core
4411/5A	racord sudabil (solder connection)	5/8 x 5/8	16 x 16	1	4490/A H-48 Castel 4490/B H-48 Castel 4490/AA Castel 4490/AB Castel 4490/BA Castel 4490/BB Castel
4411/7A	racord sudabil (solder connection)	7/8 x 7/8	22 x 22	1	4490/A H-48 Castel 4490/B H-48 Castel 4490/AA Castel 4490/AB Castel 4490/BA Castel 4490/BB Castel
4411/9A	racord sudabil (solder connection)	1 1/8 x 1 1/8	-	1	4490/A H-48 Castel 4490/B H-48 Castel 4490/AA Castel 4490/AB Castel 4490/BA Castel 4490/BB Castel
4411/11A	racord sudabil (solder connection)	1 3/8 x 1 3/8	35 x 35	1	4490/A H-48 Castel 4490/B H-48 Castel 4490/AA Castel 4490/AB Castel 4490/BA Castel 4490/BB Castel
4411/M42A	racord sudabil (solder connection)	-	42 x 42	1	4490/A H-48 Castel 4490/B H-48 Castel 4490/AA Castel 4490/AB Castel 4490/BA Castel 4490/BB Castel
4411/17A	racord sudabil (solder connection)	2-1/8 x 2-1/8	54 x 54	1	4490/A H-48 Castel 4490/B H-48 Castel 4490/AA Castel 4490/AB Castel 4490/BA Castel 4490/BB Castel
4411/21A	racord sudabil (solder connection)	2-5/8 x 2-5/8	-	1	4490/A H-48 Castel 4490/B H-48 Castel 4490/AA Castel 4490/AB Castel 4490/BA Castel 4490/BB Castel
4412/7A	racord sudabil (solder connection)	7/8 x 7/8	22 x 22	2	4490/A H-48 Castel 4490/B H-48 Castel 4490/AA Castel 4490/AB Castel 4490/BA Castel 4490/BB Castel
4412/9A	racord sudabil (solder connection)	1-1/8 x 1-1/8	-	2	4490/A H-48 Castel 4490/B H-48 Castel 4490/AA Castel 4490/AB Castel 4490/BA Castel 4490/BB Castel
4412/11A	racord sudabil (solder connection)	1-3/8 x 1-3/8	35 x 35	2	4490/A H-48 Castel 4490/B H-48 Castel 4490/AA Castel 4490/AB Castel 4490/BA Castel 4490/BB Castel
4412/M42A	racord sudabil (solder connection)	-	42 x 42	2	4490/A H-48 Castel 4490/B H-48 Castel 4490/AA Castel 4490/AB Castel 4490/BA Castel 4490/BB Castel
4412/17A	racord sudabil (solder connection)	2-1/8 x 2-1/8	54 x 54	2	4490/A H-48 Castel 4490/B H-48 Castel 4490/AA Castel 4490/AB Castel 4490/BA Castel 4490/BB Castel
4413/11A	racord sudabil (solder connection)	1-3/8 x 1-3/8	35 x 35	3	4490/A H-48 Castel 4490/B H-48 Castel 4490/AA Castel 4490/AB Castel 4490/BA Castel 4490/BB Castel
4413/M42A	racord sudabil (solder connection)	-	42 x 42	3	4490/A H-48 Castel 4490/B H-48 Castel 4490/AA Castel 4490/AB Castel 4490/BA Castel 4490/BB Castel
4414/M42A	racord sudabil (solder connection)	-	42 x 42	4	4490/A H-48 Castel 4490/B H-48 Castel 4490/AA Castel 4490/AB Castel 4490/BA Castel 4490/BB Castel
4414/17A	racord sudabil (solder connection)	2-1/8 x 2-1/8	54 x 54	4	4490/A H-48 Castel 4490/B H-48 Castel 4490/AA Castel 4490/AB Castel 4490/BA Castel 4490/BB Castel
