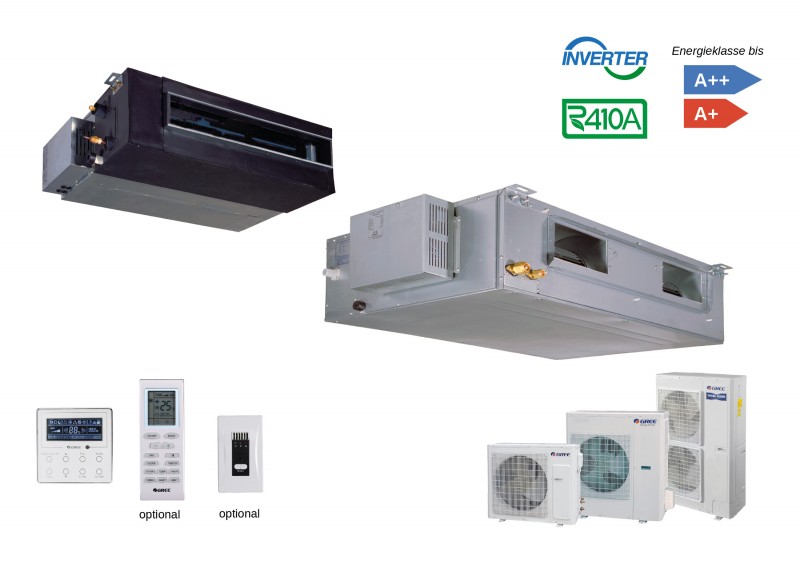

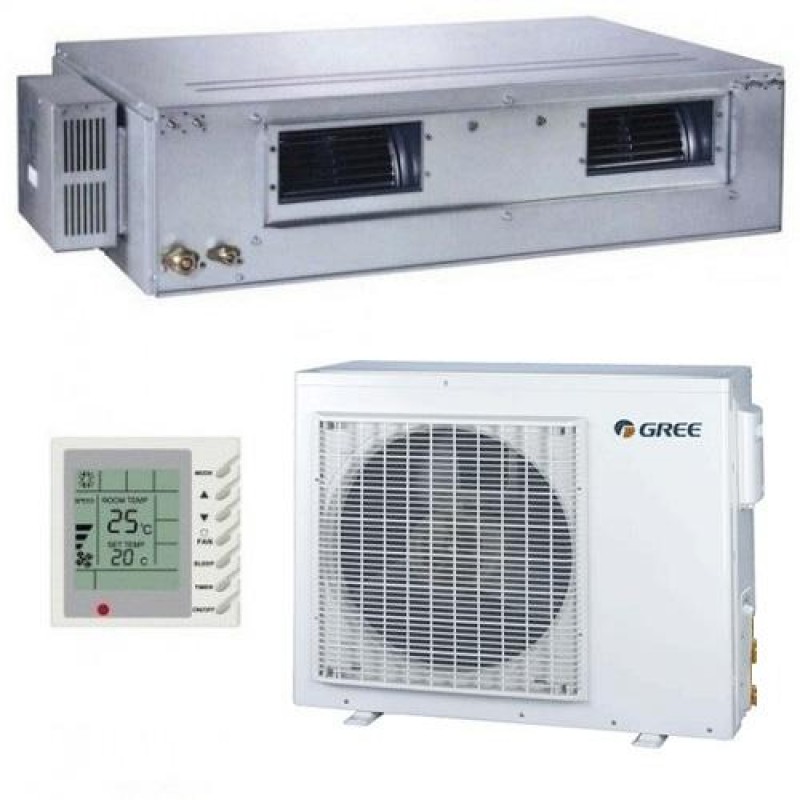

Commercial type Gree Duct 48000 BTU (R410A) - 380V

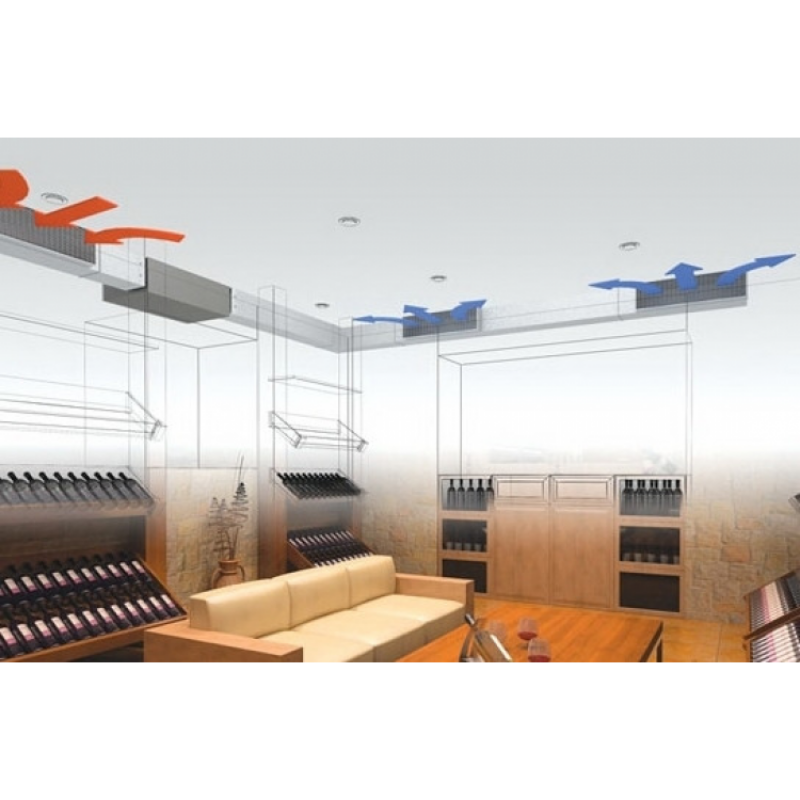

Ductable 3-phase type inverter unit - the ideal solution for hotels, banks and similar applications, where hidden units and extremely low noise are a must

  • Drain pump fitted as optional with increased lift of 1100 mm.
  • Fresh air inlet and air valve control function that improves the indoor air quality.
  • Flexible air in/outlet and condensing water outlet direction according to different installation requirements.
  • Optimized air duct design that improves the performance and lower noise.
  • Standard wired controller and optional remote controller.



Specificații

  • Power supply 380-400/50/3 V/Hz/Ph
  • Refrigerant R410A
  • BTU cooling 48000 BTU
  • BTU heating 53000 BTU
  • Cooling capacity 14,0 kW
  • Heating capacity 15,5 kW
  • Power consumption C 5,10 kW
  • Power consumption H 4,50 kW
  • SEER/SCOP 5,6/3,8 W/W
  • Energy class C A+
  • Energy class H A
  • Rated current C/H 8,8/7,8 A/A
  • Air flow volume (M) 2400 m³/h

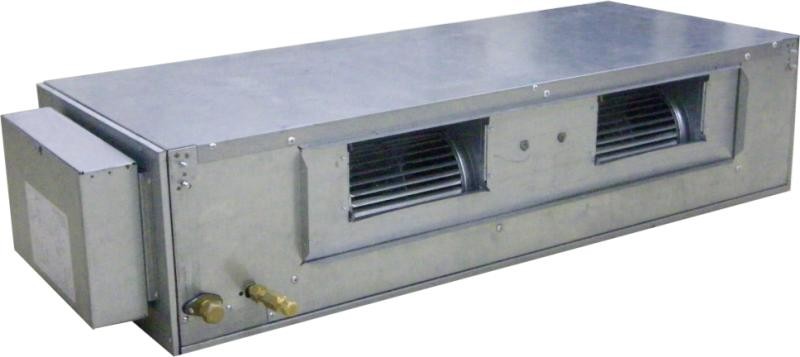

  • Indoor unit (IDU)
  • Sound pressure level IDU (M) 49 db(A)
  • Net dimensions IDU (WxDxH) 1340 x 750 x 350 mm
  • Net weight IDU 56 kg
  • Outdoor unit (ODU)
  • Net dimensions ODU (WxDxH) 958 X 412 X 1349 mm
  • Net weight ODU 114 kg
  • Piping connection liquid 9,52 mm
  • Piping connection gas 15,9 mm
  • Max. distance lenght 30 m
  • Max. distance height 50 m
  • Refrigerant charge 4,0 kg
  • Operation ambient temp. range C -15 → +48 °C
  • Operation ambient temp. range H -15 → +24 °C
  • Control Remote, Wired
  • Sound pressure level ODU (max.) 59 dB(A)

Tabel comparativ

Duct (R410A)
Modele GFH12K3FI & GUHD12NK3FOGFH18K3FI & GUHD18NK3FOGFH24K3FI & GUHD24NK3FOGFH36K3FI & GUHD36NK3FOGFH36K3FI & GUHD36NM3FOGFH42K3FI & GUHD42NK3FOGFH42K3FI & GUHD42NM3FOGFH48K3FI & GUHD48NK3FOGFH48K3FI & GUHD48NM3FOGFH60K3FI & GUHD60NM3FO
Power supply (V/Hz/Ph)220-240/50/1220-240/50/1220-240/50/1220-240/50/1380-400/50/3220-240/50/1380-400/50/3220-240/50/1380-400/50/3380-400/50/3
RefrigerantR410AR410AR410AR410AR410AR410AR410AR410AR410AR410A
BTU cooling (BTU)12000171002400034200342003930039300480004800054600
BTU heating (BTU)13000191002730041000410004610046100530005300056300
Cooling capacity (kW)3,55,07,010,010,011,511,514,014,016,0
Heating capacity (kW)3,85,68,012,012,013,513,515,515,516,5
SEER/SCOP (W/W)5,6/4,05,6/3,86,1/4,05,6/4,05,1/4,05,6/3,85,6/4,06,1/3,85,6/3,85,6/3,8
Energy class CA++A+A++A+AA+A+A++A+A+
Energy class HA+AA+A+A+A+A+AAA
Air flow volume (M) (m³/h)750100014002100210021002100240024003000
Indoor unit (IDU)
Sound pressure level IDU (M) (db(A))34364448464848494954
Net dimensions IDU (WxDxH) (mm)1037 x 721 x 2661037 x 721 x 2661279 x 558 x 2681226 x 775 x 290840 x 840 x 3201226 x 775 x 2901226 x775 x 2901340 x 750 x 3501340 x 750 x 3501340 x 750 x 350
Outdoor unit (ODU)
Net dimensions ODU (WxDxH) (mm)848 X 320 X 540955 X 396 X 700980 X 427 X 7901107 X 440 X 11001107 X 440 X 1100958 X 412 X 1349958 X 412 X 1349958 X 412 X 1349958 X 412 X 13491085 X 427 X 1365
Piping connection liquid (mm)6,356,359,529,529,529,529,529,529,529,52
Piping connection gas (mm)9,5212,715,915,915,915,915,915,915,919,05
Max. distance lenght (m)15151515151530303030
Max. distance height (m)20203030303050505050
Operation ambient temp. range C (°C)-15 → +48-15 → +48-15 → +48-15 → +48-15 → +48-15 → +48-15 → +48-15 → +48-15 → +48-15 → +48
Operation ambient temp. range H (°C)-15 → +24-15 → +24-15 → +24-15 → +24-15 → +24-15 → +24-15 → +24-15 → +24-15 → +24-15 → +24
Sound pressure level ODU (max.) (dB(A))52565763636161595963
