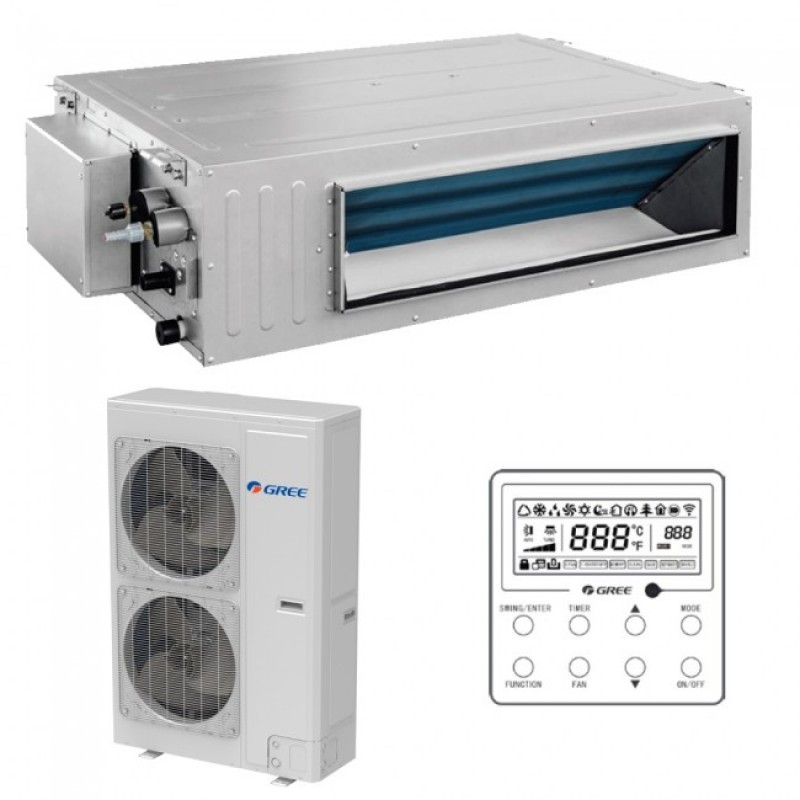

Commercial type Gree Duct 56000 BTU (R32) - 380V

Ai observat o eroare?

COD DTN

401.90.3135 & 401.90.3220

COD PRODUS

GUD160PHS/A-T & GUD160W/NhA-X

new: GUD160PHS1/A-S & GUD160W1/NhA-X (GUD160PHS1/A-S set R32)

Solicită ofertă PDF

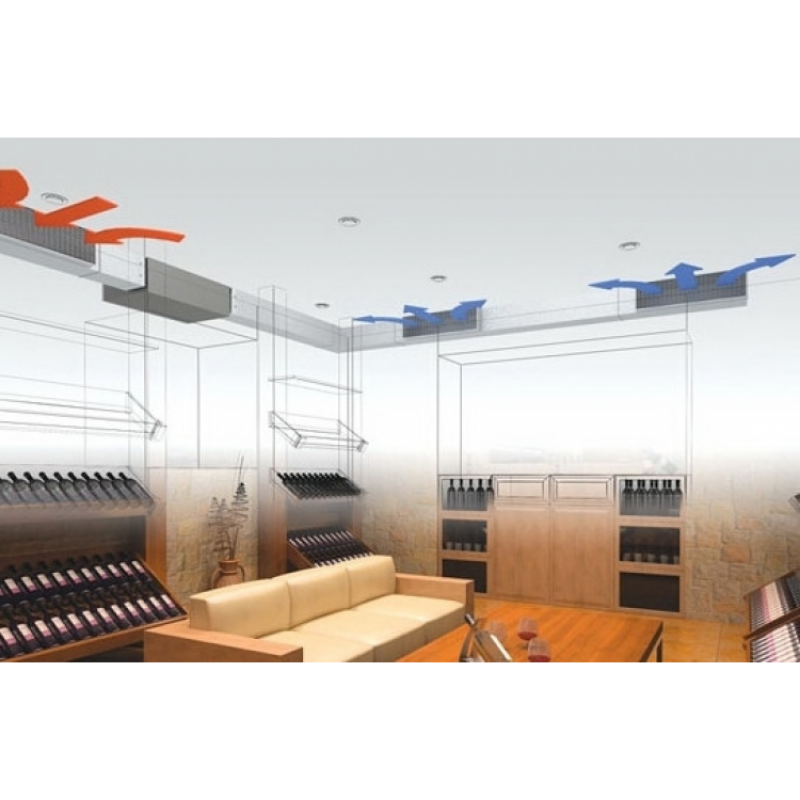

Ductable 3-phase type inverter unit - the ideal solution for hotels, banks and similar applications, where hidden units and extremely low noise are a must

Drain pump fitted as optional with increased lift of 1100 mm.
Eco-friendly refrigerant.
Fresh air inlet and air valve control function that improves the indoor air quality.
Flexible air in/outlet and condensing water outlet direction according to different installation requirements.
Optimized air duct design that improves the performance and lower noise.
Standard remote controller and optional wired controller.

Specificații

Power supply 380-400/50/3 V/Hz/Ph
Refrigerant R32
BTU cooling 54600 BTU
BTU heating 58000 BTU
Cooling capacity 16,0 kW
Heating capacity 17,0 kW
Power consumption C 5,70 kW
Power consumption H 4,60 kW
SEER/SCOP 6,1/4,0 W/W
Energy class C A++
Energy class H A+
Rated current C/H -/- A/A
Air flow volume (M) 2400 m³/h

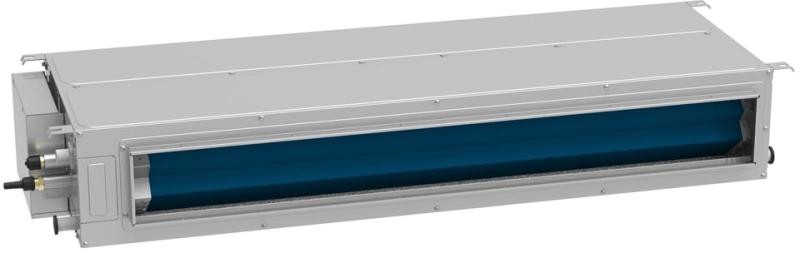

Indoor unit (IDU)
Sound pressure level IDU (M) 46 db(A)
Net dimensions IDU (WxDxH) 1400 x 700 x 300 mm
Net weight IDU 56 kg
Outdoor unit (ODU)
Net dimensions ODU (WxDxH) 900 X 340 X 1345 mm
Net weight ODU 112 kg
Piping connection liquid 9,52 mm
Piping connection gas 15,9 mm
Max. distance lenght 75 m
Max. distance height 30 m
Refrigerant charge 3,60 kg
Operation ambient temp. range C -15 → +48 °C
Operation ambient temp. range H -15 → +24 °C
Control Remote, Wired
Sound pressure level ODU (max.) - dB(A)

Tabel comparativ

Duct (R32)
Modele	GUD35PS/A-T & GUD35W/NhA-T	GUD50PS/A-T & GUD50W/NhA-T	GUD71PS/A-T & GUD71W/NhA-T	GUD100PHS/A-T & GUD100W/NhA-T	GUD100PHS/A-T & GUD100W/NhA-X	GUD125PHS/A-T & GUD125W/NhA-T	GUD125PHS/A-T & GUD125W/NhA-X	GUD140PHS/A-T & GUD140W/NhA-T	GUD140PHS/A-T & GUD140W/NhA-X	GUD160PHS/A-T & GUD160W/NhA-X
Power supply (V/Hz/Ph)	220-240/50/1	220-240/50/1	220-240/50/1	220-240/50/1	380-400/50/3	220-240/50/1	380-400/50/3	220-240/50/1	380-400/50/3	380-400/50/3
Refrigerant	R32	R32	R32	R32	R32	R32	R32	R32	R32	R32
BTU cooling (BTU)	12000	17100	24000	34200	34200	41300	41300	45700	45700	54600
BTU heating (BTU)	13700	18800	27300	41000	41000	46100	46100	53000	53000	58000
Cooling capacity (kW)	3,5	5,0	7,0	10,0	10,0	12,1	12,1	13,4	13,4	16,0
Heating capacity (kW)	4,0	5,5	8,0	12,0	12,0	13,5	13,5	15,5	15,5	17,0
SEER/SCOP (W/W)	6,1/4,0	6,1/4,0	6,8/4,0	6,1/4,0	6,1/4,0	5,8/3,8	5,8/3,8	6,1/3,8	5,4/3,7	6,1/4,0
Energy class C	A++	A++	A++	A++	A++	A+	A+	A++	A+	A++
Energy class H	A+	A+	A+	A+	A+	A	A	A	A	A+
Air flow volume (M) (m³/h)	650	950	1200	1800	1800	2000	2000	2200	2200	2400
Indoor unit (IDU)
Sound pressure level IDU (M) (db(A))	41	43	40	46	46	42	42	43	43	46
Net dimensions IDU (WxDxH) (mm)	700 x 450 x 200	1000 x 450 x 200	1300 x 450 x 220	1000 x 700 x 300	1000 x 754 x 300	1400 x 700 x 300	1400 x 700 x 300	1400 x 700 x 300	1400 x 700 x 300	1400 x 700 x 300
Outdoor unit (ODU)
Net dimensions ODU (WxDxH) (mm)	818 X 302 X 596	818 X 302 X 596	892 X 340 X 698	940 X 460 X 820	940 X 460 X 820	940 X 460 X 820	940 X 460 X 820	940 X 460 X 820	940 X 460 X 820	900 X 340 X 1345
Piping connection liquid (mm)	6,35	6,35	9,52	9,52	9,52	9,52	9,52	9,52	9,52	9,52
Piping connection gas (mm)	9,52	12,7	15,9	15,9	15,9	15,9	15,9	15,9	15,9	15,9
Max. distance lenght (m)	30	35	50	65	65	75	75	75	75	75
Max. distance height (m)	15	20	25	30	30	30	30	30	30	30
Operation ambient temp. range C (°C)	-15 → +48	-15 → +48	-15 → +48	-15 → +48	-15 → +48	-15 → +48	-15 → +48	-15 → +48	-15 → +48	-15 → +48
Operation ambient temp. range H (°C)	-15 → +24	-15 → +24	-15 → +24	-15 → +24	-15 → +24	-15 → +24	-15 → +24	-15 → +24	-15 → +24	-15 → +24
Sound pressure level ODU (max.) (dB(A))	-	-	-	-	-	-	-	-	-	-
