| Power supply (V/Hz/Ph) | 220-240/50/1 | 220-240/50/1 | 220-240/50/1 | 380-400/50/3 | 220-240/50/1 | 380-400/50/3 | 380-400/50/3 |
| Refrigerant | R410A | R410A | R410A | R410A | R410A | R410A | R410A |
| BTU cooling (BTU) | 17100 | 24000 | 34200 | 34200 | 39200 | 48000 | 54600 |
| BTU heating (BTU) | 19100 | 27300 | 41000 | 41000 | 46100 | 54600 | 58000 |
| Cooling capacity (kW) | 5,0 | 7,0 | 10,0 | 10,0 | 11,5 | 14,0 | 16,0 |
| Heating capacity (kW) | 5,6 | 8,0 | 12,0 | 12,0 | 13,5 | 16,0 | 17,0 |
| SEER/SCOP (W/W) | 6,1/4,0 | 5,6/4,0 | 6,1/4,0 | 6,1/4,0 | 6,1/4,0 | 5,6/4,0 | 5,1/4,0 |
| Energy class C | A++ | A+ | A++ | A++ | A++ | A+ | A |
| Energy class H | A+ | A+ | A+ | A+ | A+ | A+ | A+ |
| Air flow volume (M) (m³/h) | 1000 | 1200 | 1900 | 1900 | 1900 | 2300 | 2500 |

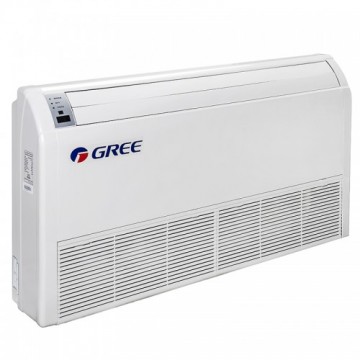

| Indoor unit (IDU) | | | | | | | |
| Sound pressure level IDU (M) (db(A)) | 38 | 46 | 51 | 51 | 52 | 50 | 52 |
| Net dimensions IDU (WxDxH) (mm) | 1220 x 700 x 225 | 1220 x 700 x 225 | 1420 x 700 x 245 | 1420 x 700 x 245 | 1420 x 700 x 245 | 1700 x 700 x 245 | 1700 x 700 x 245 |

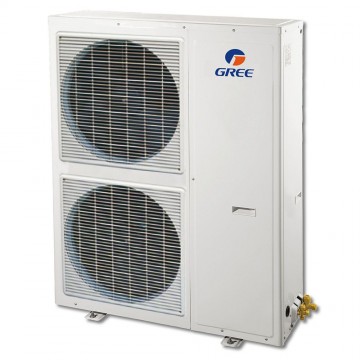

| Outdoor unit (ODU) | | | | | | | |
| Net dimensions ODU (WxDxH) (mm) | 955 X 396 X 700 | 980 X 427 X 790 | 1107 X 440 X 1100 | 1107 X 440 X 1100 | 958 X 412 X 1349 | 958 X 412 X 1349 | 1085 X 427 X 1365 |
| Piping connection liquid (mm) | 6,35 | 9,52 | 9,52 | 9,52 | 9,52 | 9,52 | 9,52 |
| Piping connection gas (mm) | 12,7 | 15,9 | 15,9 | 15,9 | 15,9 | 15,9 | 19,05 |
| Max. distance lenght (m) | 15 | 15 | 15 | 15 | 30 | 30 | 30 |
| Max. distance height (m) | 20 | 30 | 30 | 30 | 50 | 50 | 50 |
| Operation ambient temp. range C (°C) | -15 → +48 | -15 → +48 | -15 → +48 | -15 → +48 | -15 → +48 | -15 → +48 | -15 → +48 |
| Operation ambient temp. range H (°C) | -15 → +24 | -15 → +24 | -15 → +24 | -15 → +24 | -15 → +24 | -15 → +24 | -15 → +24 |
| Sound pressure level ODU (max.) (dB(A)) | 56 | 57 | 63 | 63 | 61 | 59 | 63 |
