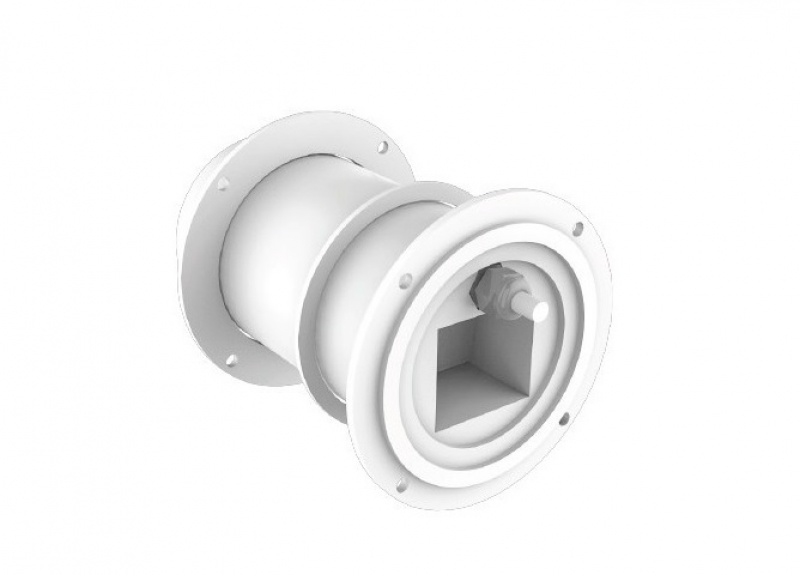

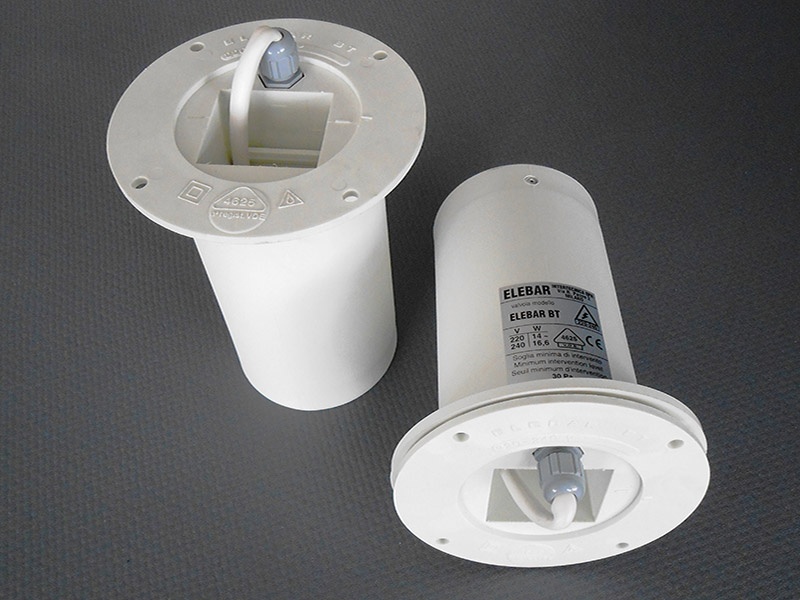

Compensation valve Elebar BT (max. 100 m³)

Solicită ofertă PDF

Compensation valve for cold rooms with negative temperatures (-30°C...0°C)

The compensation valve keeps the internal and external pressures balanced.
Application: low temperatures, maximum 30 m³, 220V/16W.
Observations: the pressure variations periodically happen according to the different defrosting phases and during opening and closing of the doors. The lack of installation of a compensating valve may cause the following problems: (i) sudden opening of the door with a resulting deterioration of the products stored, or (ii) cracking in coincidence of the junctions and consequent frosting.
In case of use at low temperature (BT) it is suggested not to install the internal grid.

Power supply 220-240/50/1 V/Hz/Ph
Power 16 W
Temperature domain -30 → 0 °C
Diameter 80,5 mm
Compensating air flow
- -30°C : 623 lt/min
- 0°C : 486 lt/min
- +1°C : - lt/min
- +10°C : - lt/min

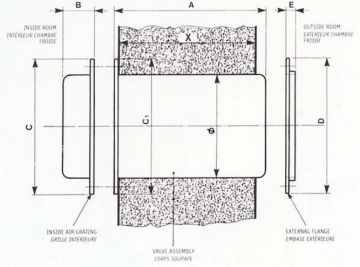

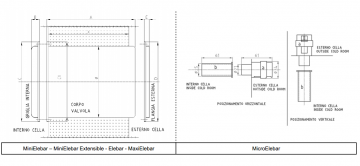

Dimensions compensating valve
- A : 147 mm
- B : 36 mm
- C : 115 mm
- C1 : 115 mm
- D : 114 mm
- E : 6 mm
- Xmax : 130 mm
