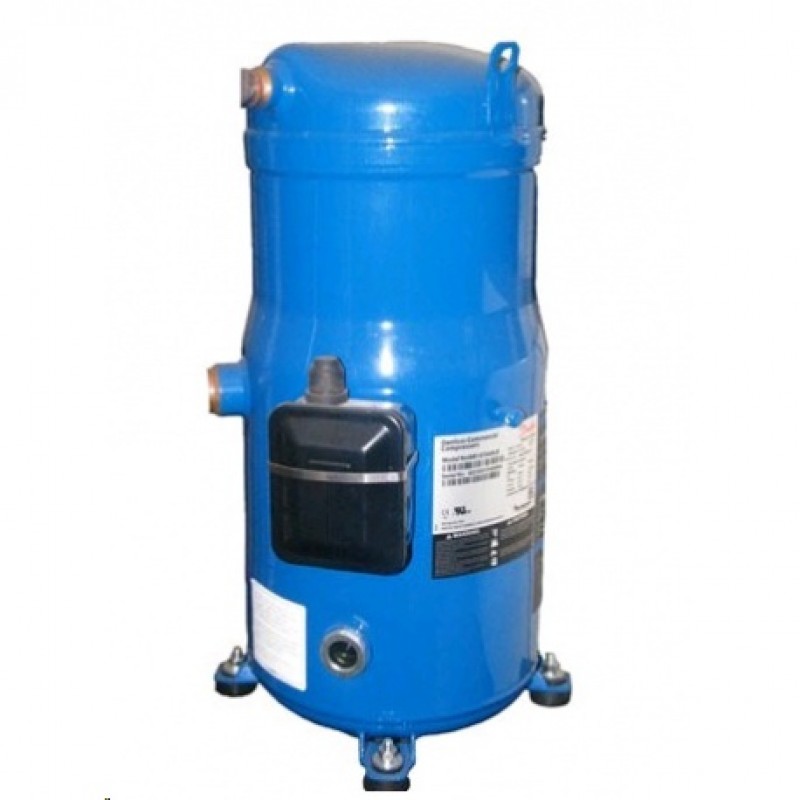

Compressor Danfoss Performer SZ 115-4RI

Danfoss Performer SZ115
qr Ai observat o eroare?

COD DTN

  • 102.18.2020

COD PRODUS

Solicită ofertă PDF

Danfoss Performer SZ115-4RI , HBP application, R407C + R134a/R404A/R507A refrigerants

  • Scross compressor, designed for heating and air conditioning   -  positive temperatures.
  • Available in singular/individual structure.
  • Easy to install and service.
  • Brand technique: after sale.
  • Large internal volume.
  • High energy efficiency with low sound and minimal vibration.
  • Operation under extreme conditions.
  • Long life expectancy and reliability.

Specificații

  • Power supply 380-400/50/3, 460/60/3 V/Hz/Ph
  • Application HBP
  • Refrigerant R134a, R404A, R507A, R407C
  • Net weight 78 kg
  • Displacement 26,97 cm³
  • Oil charge 3,8 dm³
  • Swept volume 155,0 cm³/rev
  • Cooling capacity [W] / Evapor. temp. [°C]*
    • -5°C : 15800 W
    • 0°C : 19800 W
    • 5°C : 24400 W
    • 10°C : 29600 W
    • 15°C : 35600 W
  • Nominal cooling capacity 91700 BTU/h
  • Power input 8,49 kW
  • Specific COP 3,16 W/W
  • EER 10,8 BTU/h /W
  • Connection Rotolock (rotalock)
Notes:
**capacities available for R404A/R507, 45°C condensing temperature

Tabel comparativ

Danfoss Performer
Modele Power supply (V/Hz/Ph)ApplicationNet weight (kg)Displacement (cm³)Swept volume (cm³/rev)Cooling capacity [W] / Evapor. temp. [°C]* (W)Nominal cooling capacity (BTU/h)Connection
-5°C0°C5°C10°C15°C
SZ084-4VI380-400/50/3
460/60/3		HBP6719,9114,5113001420017500214002580065900Brazed (sudabilă)
SZ090-4VI380-400/50/3
460/60/3		HBP68,0321,0120,5120001500018500225002720069600Brazed (sudabilă)
SZ100-4VI380-400/50/3
460/60/3		HBP68,3422,1127,2127001590019600238002870073700Brazed (sudabilă)
SZ110-4VI380-400/50/3
460/60/3		HBP86,825,1144,2145001810022300272003270084000Brazed (sudabilă)
SZ115-4RI380-400/50/3
460/60/3		HBP7826,97155,0158001980024400296003560091700 Rotolock (rotalock)
SZ120-4VI380-400/50/3
460/60/3		HBP76,8429,0166,6170002120026100316003800097600Brazed (sudabilă)
SZ125-4RI380-400/50/3
460/60/3		HBP7928,99166,6168002100025900315003790097500 Rotolock (rotalock)
SZ148-4VAI380-400/50/3
460/60/3		HBP8834,6199,02120026200321003890046700119800Brazed (sudabilă)
SZ160-4RAI380-400/50/3
460/60/3		HBP9237,69216,62320028800352004270051400128200 Rotolock (rotalock)
SZ161-4VAM380-400/50/3
460/60/3		HBP9237,69216,62290028400347004210050600129500Brazed (sudabilă)
SZ175-4RI380-400/50/3
460/60/3		HBP10040,54233,02400029800365004420053000136900 Rotolock (rotalock)
SZ185-4RI380-400/50/3
460/60/3		HBP10143,48249,92570032000392004750056900147100 Rotolock (rotalock)

Accesorii

Motor protection module INT 69-15T Maneurop (230V)

Motor protection module INT 69-15T Maneurop (230V)
