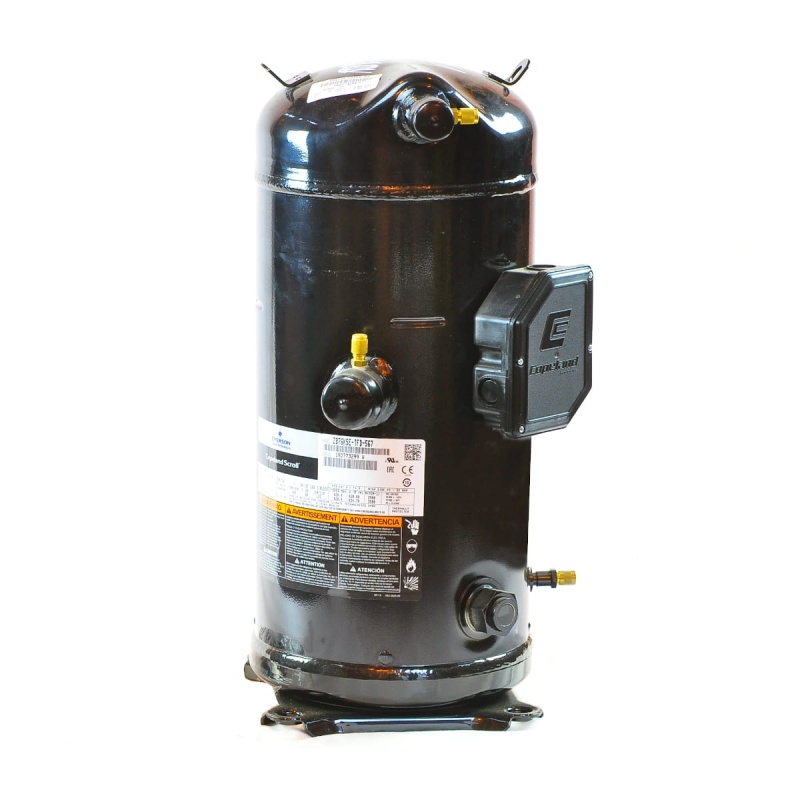

Copeland Scroll ZB 114-K5E-TFD-567 compressor

Copeland Scroll ZB 114K5E-TFD-567

nou

Ai observat o eroare?

COD DTN

8620188

COD PRODUS

ZB114K5E-TFD-567

COMPRESOR ZB114-K5E-TFD567 COPELAND ex: 8608566

Solicită ofertă PDF

Compressor Copeland Scroll ZB114-K5E-TFD567, 380V, 25.1 kW, MBP, R134a/R404A/R407C/R448A/R449A

ZB114 scroll compressor for high precision HVAC-R applications.
Replacement for scroll compressors ZB114KCE-TFD-551, ZB11MCE-TW* and ZS11M4E-TW*.
25.1 kW scroll with compact shape and comfortable installation.
15% higher seasonal energy efficiency than semi-hermetic compressors.
Special applicability for medium temperatures (MBP).
Low operating costs.
Low noise level and reduced vibration.
Compatible refrigerants: R134a/R404A/R407A/R407C/R407F/R448A/R449A/R450A/R513A.
Exposed refrigeration capacities for R404A.
Outstanding applicability for chillers and compact cooling systems.

Specificații

Power supply 380-420/50/3 V/Hz/Ph
Application MBP
Refrigerant R134a, R404A, R407C, R407A, R407F, R448A, R449A, R513A, R450A
Nominal HP 15.0 HP
Nominal capacity 25.1 kW
Displacement 43.4 m³/h
Net weight 66.2 kg
Maximum current 68.8 A
Cooling capacity [W] / Evapor. temp. [°C]*
- -35°C : - W
- -30°C : - W
- -25°C : 12500 W
- -20°C : 18700 W
- -15°C : 23400 W
- -10°C : 28700 W
- -5°C : 34700 W
- 0°C : - W
- 5°C : - W
- 10°C : - W
- 15°C : - W
Specific COP 2.16 W/W
Product variation 567 - Charged with POE Oil, Internal Klixon, Rotalock connections with Sight Glass, Discharge Line Thermostat and IP54 Terminal Box (compresor încărcat cu ulei POE, Klixon intern, conexiuni Rotalock cu vizor, termostat linie de descărcare și cutie de borne IP54)
Stub suction 1 3/4 "
Stub discharge 1 1/4 "
Oil quantity 3.4 l
Dimensions (L x W x H) 280 x 280 x 552 mm
Sound pressure @1m 72 db(A)

Notes:

**capacities available for R404A/R507, 45°C condensing temperature

Tabel comparativ

Copeland scroll ZB/ZBD
Modele	Power supply (V/Hz/Ph)	Application	Nominal HP (HP)	Nominal capacity (kW)	Displacement (m³/h)	Cooling capacity [W] / Evapor. temp. [°C]* (W)											Stub suction (")	Stub discharge (")
Modele	Power supply (V/Hz/Ph)	Application	Nominal HP (HP)	Nominal capacity (kW)	Displacement (m³/h)	-35°C	-30°C	-25°C	-20°C	-15°C	-10°C	-5°C	0°C	5°C	10°C	15°C	Stub suction (")	Stub discharge (")
ZB15KCE-PFJ-551	220-240/50/1	MBP	2.0	3.3	5.9	-	1400	1700	2300	2900	3600	4400	-	-	-	-	3/4 (1 1/4)	1/2 (1)
ZB15KCE-TFD-551	380-420/50/3	MBP	2.0	3.3	5.9	-	1400	1700	2300	2900	3600	4400	-	-	-	-	3/4 (1 1/4)	1/2 (1)
ZB19KCE-PFJ-551	220-240/50/1	MBP	2.5	4.2	6.8	-	2000	2100	2750	3400	4100	5000	-	-	-	-	1 1/4	1
ZB19KCE-TFD-551	380-420/50/3	MBP	2.5	4.2	6.8	-	2000	2100	2750	3350	4100	5000	-	-	-	-	1 1/4	1
ZB21KCE-PFJ-551	220-240/50/1	MBP	3.0	5.1	8.6	-	2400	2750	3500	4325	5350	3500	-	-	-	-	1 1/4	1
ZB21KCE-TFD-551	380-420/50/3	MBP	3.0	5.1	8.6	-	2400	2750	3500	4350	5350	6500	-	-	-	-	1 1/4	1
ZB26KCE-PFJ-551	220-240/50/1	MBP	3.5	5.8	10.0	-	2800	3200	4050	5100	6200	7500	-	-	-	-	1 1/4	1
ZB26KCE-TFD-551	380-420/50/3	MBP	3.5	5.8	10.0	-	2800	3200	4100	5100	6200	7500	-	-	-	-	1 1/4	1
ZB29KCE-TFD-551	380-420/50/3	MBP	4.0	6.8	11.4	2100	3200	3700	4500	5850	7150	8600	-	-	-	-	1 1/4	1
ZB30KCE-PFJ-551	220-240/50/1	MBP	4.0	6.9	11.7	2100	3200	4100	5000	6200	7500	9000	-	-	-	-	1 1/4	1
ZB30KCE-TFD-551	380-420/50/3	MBP	4.0	6.9	11.7	2100	3200	4100	5000	6200	7500	9000	-	-	-	-	1 1/4	1
ZB38KCE-PFJ-551	220-240/50/1	MBP	5.0	8.5	14.4	2700	4100	4500	6000	7450	9100	11000	-	-	-	-	1 1/4	1
ZB38KCE-TFD-551	380-420/50/3	MBP	5.0	8.5	14.4	2700	4100	4500	6000	74500	9100	11000	-	-	-	-	1 1/4	1
ZB42KCE-PFJ-551	220-240/50/1	MBP	5.5	9.7	16.2	-	4600	5000	6750	8400	10350	12500	-	-	-	-	1 1/4	1
ZB45KCE-TFD-551	380-420/50/3	MBP	6.0	10.1	17.1	3200	4800	5250	7000	8750	10750	13000	-	-	-	-	1 1/4	1
ZB48KCE-TFD-551	380-420/50/3	MBP	7.0	11.6	18.8	3600	5500	6100	8100	10100	12500	15000	-	-	-	-	1 1/4	1
ZB50KCE-TFD-551	380-420/50/3	MBP	7.0	11.9	19.8	-	2800	5900	8200	10600	13100	15800	-	-	-	-	1 1/8	7/8
ZB57KCE-TFD-591	380-420/50/3	MBP	7.85	13.2	21.4	-	-	7900	9700	11900	14300	17100	-	-	-	-	1 1/4	1 1/4
ZB58KCE-TFD-551	380-420/50/3	MBP	8.0	13.3	22.1	-	4200	7200	9400	11900	14500	17500	-	-	-	-	1 3/4	1 1/4
ZB66KCE-TFD-551	380-420/50/3	MBP	9.0	15.1	24.9	-	6000	8900	11100	13600	16400	19700	-	-	-	-	1 3/4	1 1/4
ZB76KCE-TFD-551	380-420/50/3	MBP	10.0	17.9	29.1	-	7000	10400	13000	16000	19400	23300	-	-	-	-	1 3/4	1 1/4
ZB76K5E-TFD-567	380-420/50/3	MBP	12.0	17.3	28.8	-	-	10500	13100	16200	19700	23600	-	-	-	-	1 3/4	1 1/4
ZB95KCE-TFD-551	380-420/50/3	MBP	13.0	21.7	36.4	-	7600	10700	15600	19500	23800	28700	-	-	-	-	1 3/4	1 1/4
ZB95-K5E-TFD-567	380-420/50/3	MBP	13.0	21.1	36.4	-	-	10700	16000	20100	24500	29300	-	-	-	-	1 3/4	1 1/4
ZB114KCE-TFD-551	380-420/50/3	MBP	15.0	25.8	43.4	-	8500	12300	18300	23000	28300	24400	-	-	-	-	1 3/4	1 1/4
ZB114K5E-TFD-567	380-420/50/3	MBP	15.0	25.1	43.4	-	-	12500	18700	23400	28700	34700	-	-	-	-	1 3/4	1 1/4
ZBD21KCE-TFD-551	380-420/50/3	MBP	3.0	5.5	8.3	-	-	3000	3700	4500	5500	6600	-	-	-	-	1 1/4	1
ZBD29KCE-TFD-551	380-420/50/3	MBP	4.0	7.4	11.4	-	-	4100	5100	6200	7400	8900	-	-	-	-	1 1/4	1
ZBD30KCE-TFD-551	380-420/50/3	MBP	3.7	7.1	11.7	-	-	3710	4650	5780	7110	8670	10460	12520	13420	14840	1 1/4	1
ZBD38KCE-TFD-551	380-420/50/3	MBP	5.0	9.3	14.4	-	-	5200	6300	7700	9300	11100	-	-	-	-	1 1/4	1
ZBD45KCE-TFD-551	380-420/50/3	MBP	6.0	11.2	17.1	-	-	6100	7500	9200	11200	13400	-	-	-	-	1 1/4	1
ZBD57KCE-TFD-591	380-420/50/3	MBP	8.0	14.3	21.4	-	-	7900	9700	11900	14300	17100	-	-	-	-	1 1/4	1
ZBD76KCE-TFD-551	380-420/50/3	MBP	10.0	20.0	28.8	-	-	10600	13300	16400	20000	23900	-	-	-	-	1.75	1.25
ZBD114K5E-TFD-567	380-420/50/3	MBP	15.0	28.7	43.3	-	-	14200	18600	23400	28700	34700	-	-	-	-	1.75	1.25
