Copeland Scroll ZP 54K*E-TFM-522

Copeland Scroll ZP 54K*E-TFM-522 (R410A)

Ai observat o eroare?

COD DTN

102.04.2275

COD PRODUS

ZP54K*E-TFM-522

Solicită ofertă PDF

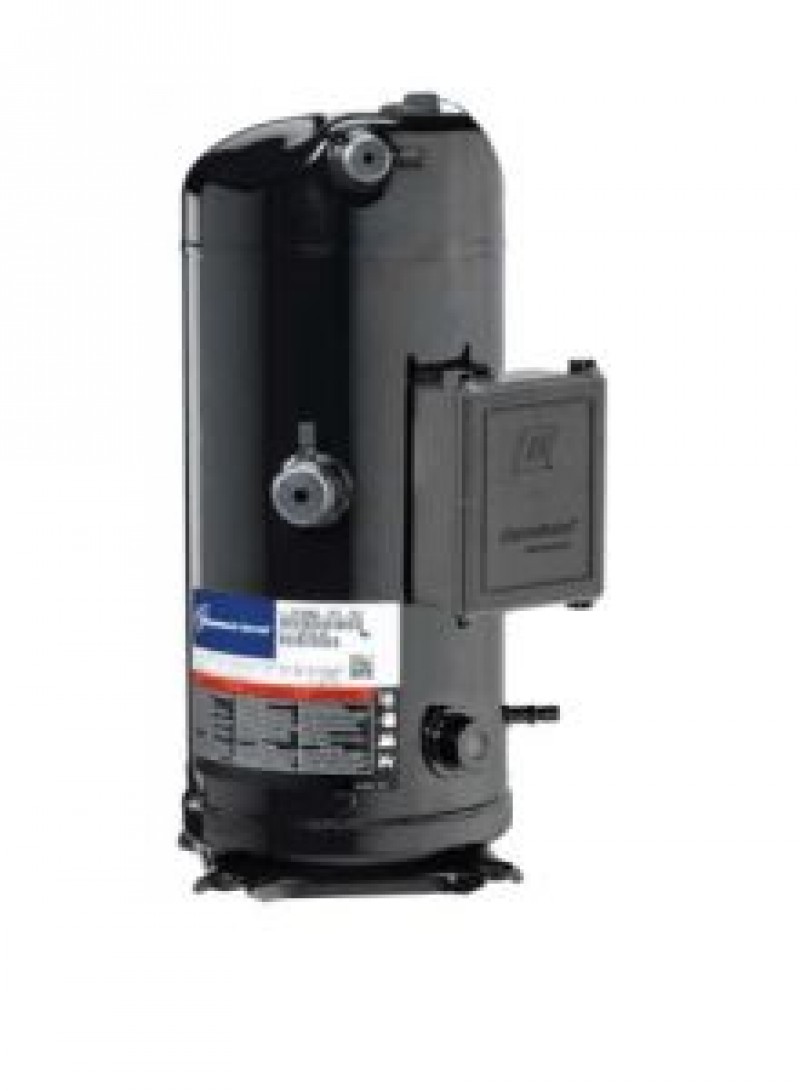

Copeland Scroll ZP54K*E-TFM-522 compressor - range for R410A, 3-phase

Designed for comfort and precision cooling applications.
Available especially for chillers.
Compact design and low operating cost.
High seasonal efficiency (ESEER).
Low sound and vibration level.

Specificații

Power supply 380-420/50/3 V/Hz/Ph
Application MBP, HBP
Refrigerant R410A
Nominal HP 4,6 HP
Nominal capacity 11,6 kW
Displacement 8,9 m³/h
Net weight 34 kg
Maximum current 10 A
Cooling capacity [W] / Evapor. temp. [°C]*
- -35°C : - W
- -30°C : - W
- -25°C : - W
- -20°C : - W
- -15°C : 6000 W
- -10°C : 7500 W
- -5°C : 9300 W
- 0°C : 11300 W
- 5°C : 13500 W
- 10°C : 16000 W
- 15°C : - W
Specific COP 3,0 W/W
Product variation 522 - compressor with brazing stub tubes (conexiuni sudabile)
Stub suction 7/8 "
Stub discharge 1/2 "
Oil quantity 1,24 l
Dimensions (L x W x H) 242 x 242 x 422 (418) mm
Sound pressure @1m 59 db(A)

Notes:

**capacities available for R404A/R507, 45°C condensing temperature

Tabel comparativ

Copeland scroll ZP
Modele	Power supply (V/Hz/Ph)	Application	Nominal HP (HP)	Nominal capacity (kW)	Displacement (m³/h)	Cooling capacity [W] / Evapor. temp. [°C]* (W)											Stub suction (")	Stub discharge (")
Modele	Power supply (V/Hz/Ph)	Application	Nominal HP (HP)	Nominal capacity (kW)	Displacement (m³/h)	-35°C	-30°C	-25°C	-20°C	-15°C	-10°C	-5°C	0°C	5°C	10°C	15°C	Stub suction (")	Stub discharge (")
ZP24K*E-PFZ-522	220-240/50/1	MBP HBP	1,9	5,1	3,9	-	-	-	-	2200	3000	3900	4900	5900	7100	-	3/4	1/2
ZP24K*E-TFM-522	380-420/50/3	MBP HBP	1,9	5,1	3,9	-	-	-	-	2200	3000	3900	4900	5900	7100	-	3/4	1/2
ZP24-K5E-TFD522	380-420/50/3	MBP HBP	2.0	5.1	4.0	-	-	-	-	2200	3000	3900	4900	5900	7100	-	3/4	1/2
ZP295K*E-TWD-522	380-420/50/3	MBP HBP	25,0	63,5	46,7	-	-	-	-	3420	4190	5090	6130	7330	8690	10250	1 5/8 ID	1 3/8 ID
ZP29K*E-PFZ-522	220-240/50/1	MBP HBP	2,2	6,1	4,8	-	-	-	-	2900	3900	4900	6000	7300	8600	-	3/4	1/2
ZP29K*E-TFM-522	380-420/50/3	MBP HBP	2,2	6,1	4,8	-	-	-	-	2900	3900	4900	6000	7300	8600	-	3/4	1/2
ZP31K*E-PFZ-522	220-240/50/1	MBP HBP	3,0	6,5	5,0	-	-	-	-	3200	4100	5200	6300	7600	9100	-	3/4	1/2
ZP31-K5E-PFJ-522	220-240/50/1	MBP HBP	3.0	6.5	5.0	-	-	-	-	3200	4100	5200	6300	7600	9100	-	3/4	1/2
ZP31K*E-TFM-522	380-420/50/3	MBP HBP	3,0	6,5	5,0	-	-	-	-	3200	4100	5200	6300	7600	9100	-	3/4	1/2
ZP31-K5E-TFD-522	380-400/50/3	MBP HBP	3.0	6.5	5.0	-	-	-	-	3200	4100	5200	6300	7600	9100	-	3/4	1/2
ZP36K*E-PFZ-522	220-240/50/1	MBP HBP	2,6	7,9	6,0	-	-	-	-	4100	5100	6300	7700	9200	11000	-	7/8	1/2
ZP36-K5E-PFJ-522	220-240/50/1	MBP HBP	2.6	7.9	6.0	-	-	-	-	-	4100	5100	6300	7600	9100	10800	7/8	1/2
ZP36K*E-TFM-522	380-420/50/3	MBP HBP	2,6	7,9	6,0	-	-	-	-	4100	5100	6300	7700	9200	11000	-	7/8	1/2
ZP36-K5E-TFD-422	380-400/50/3	MBP HBP	2.6	7.9	6.03	-	-	-	2990	3830	4840	6010	7350	8870	9530	10550	7/8	1/2
ZP36-K5E-TFD522	380-400/50/3	MBP HBP	2.6	7.9	6.03	-	-	-	2990	3830	4840	6010	7350	8870	9530	10550	7/8	1/2
ZP42K*E-PFZ-522	220-240/50/1	MBP HBP	3,4	9,0	6,9	-	-	-	-	4400	5700	7100	8700	10500	12500	-	7/8	1/2
ZP42K*E-TFM-522	380-420/50/3	MBP HBP	3,4	9,0	6,9	-	-	-	-	4400	5700	7100	8700	10500	12500	-	7/8	1/2
ZP54K*E-PFZ-522	220-240/50/1	MBP HBP	4,6	11,6	8,9	-	-	-	-	6000	7500	9300	11300	13500	16000	-	7/8	1/2
ZP54K*E-TFM-522	380-420/50/3	MBP HBP	4,6	11,6	8,9	-	-	-	-	6000	7500	9300	11300	13500	16000	-	7/8	1/2
ZP61K*E-TFD-522	380-420/50/3	MBP HBP	5,0	13,3	10,0	-	-	-	-	6900	8600	10600	12900	15500	18400	21400	7/8	1/2
ZP72K*E-TFD-422	380-420/50/3	MBP HBP	6,0	15,3	11,7	-	-	-	-	8200	10100	12300	14800	17700	20900	-	7/8	1/2
ZP72K*E-TFD-522	380-420/50/3	MBP HBP	6,0	15,3	11,7	-	-	-	-	8200	10100	12300	14800	17700	20900	-	7/8	1/2
ZP83K*E-TFD-422	380-420/50/3	MBP HBP	6,5	17,7	13,4	-	-	-	-	9400	11600	14200	17100	20400	24200	-	7/8	1/2
ZP83K*E-TFD-522	380-420/50/3	MBP HBP	6,5	17,7	13,4	-	-	-	-	9400	11600	14200	17100	20400	24200	-	7/8	1/2
ZP91K*E-TFD-422	380-420/50/3	MBP HBP	7,5	19,3	14,7	-	-	-	-	10200	12600	15400	18600	22200	26300	31000	7/8	3/4
ZP91K*E-TFD-522	380-420/50/3	MBP HBP	7,5	19,3	14,7	-	-	-	-	10200	12600	15400	18600	22200	26300	31000	7/8	3/4
ZP103K*E-TFD-455	380-420/50/3	MBP HBP	9,0	22,4	16,7	-	-	-	-	11700	14600	17900	21600	25800	30500	35700	1 3/8	7/8
ZP120K*E-TFD-455	380-420/50/3	MBP HBP	10,0	26,6	19,7	-	-	-	-	14000	17500	21400	25800	30800	36400	42500	1 3/8	7/8
ZP122K*E-TFD-455	380-420/50/3	MBP HBP	10.0	26.5	19.5	-	-	-	-	14100	17400	21200	25500	30400	36100	42400	1 1/8	7/8
ZP137K*E-TFD-455	380-420/50/3	MBP HBP	12,0	29,9	22,1	-	-	-	-	15900	19900	24200	29200	34800	41200	48300	1 3/8	7/8
ZP154K*E-TFD-455	380-420/50/3	MBP HBP	13,0	33,5	24,8	-	-	-	-	18200	22300	27100	32600	38900	46100	54300	1 3/8	7/8
ZP182K*E-TFD-455	380-420/50/3	MBP HBP	15.0	39.6	29.1	-	-	-	-	21400	26300	32000	38400	45600	53900	63300	1 3/8	7/8
ZP235K*E-TWD-522	380-420/50/3	MBP HBP	20,0	50,6	37,8	-	-	-	-	26500	32900	40300	48800	58600	69700	82300	1 5/8 ID	1 3/8 ID
ZP235-KCE-TWD-951	380-420/50/3	MBP HBP	20.0	50.6	37.8	-	-	-	21010	26500	32900	40300	48800	58600	69700	82300	1 5/8	1 3/8
ZP295-KCE-TWD-951	380-420/50/3	MBP HBP	25.0	63.5	46.7	-	-	-	27470	34150	41920	50930	61340	73300	86940	102420	1 5/8	1 3/8
ZP385K*E-TWD-522	380-420/50/3	MBP HBP	30,0	82,4	60,8	-	-	-	-	43700	53900	65800	79500	95200	113000	133500	1 5/8	1 3/8
ZP485K*E-TWD-522	380-420/50/3	MBP HBP	40,0	105,0	77,3	-	-	-	-	57500	70000	84700	101600	121000	143000	168000	1 5/8	1 3/8
