Cubigel condensing unit CNUY45RA (R290)

Agregat Cubigel refrigerare R290Agregat frigorific refrigerare Cubigel CNUY45RA (R290)
qr Ai observat o eroare?

COD PRODUS

Solicită ofertă PDF

Cubigel refrigeration unit (ACC): medium and positive temperatures, 358 W, 4.5 cm³, R290, 230V

  • Cubigel propane condensing unit for medium and positive temperatures (MHBP).
  • Cubigel CNUY45RA with high reliability and high quality components.
  • Applications: 358 W unit for refrigerated display cases or small cold rooms.
  • Single-phase power supply, 230V; natural refrigerant R290.
  • Easy installation.
  • Propane unit designed to operate even in tropical temperatures of 43°C.

Specificații

  • Power supply 220-240/50/1 V/Hz/Ph
  • Application MBP, HBP
  • Refrigerant R290
  • Weight 22.9 kg
  • Displacement 4.5 cm³
  • Max. ambience temp. 43 °C
  • Motor type CSIR
  • Cooling capacity [W] / Evapor. temp. [°C]
    • -40°C : - W
    • -30°C : - W
    • -25°C : 190 W
    • -23,3°C : 240 W
    • -20°C : 265 W
    • -15°C : 290 W
    • -10°C : 358 W
    • -5°C : 427 W
    • 5°C : 602 W
    • 7,2°C : 645 W
    • 10°C : 703 W
  • Connection (suction) 1/4 "
  • Connection (discharge) 0 3/16 "

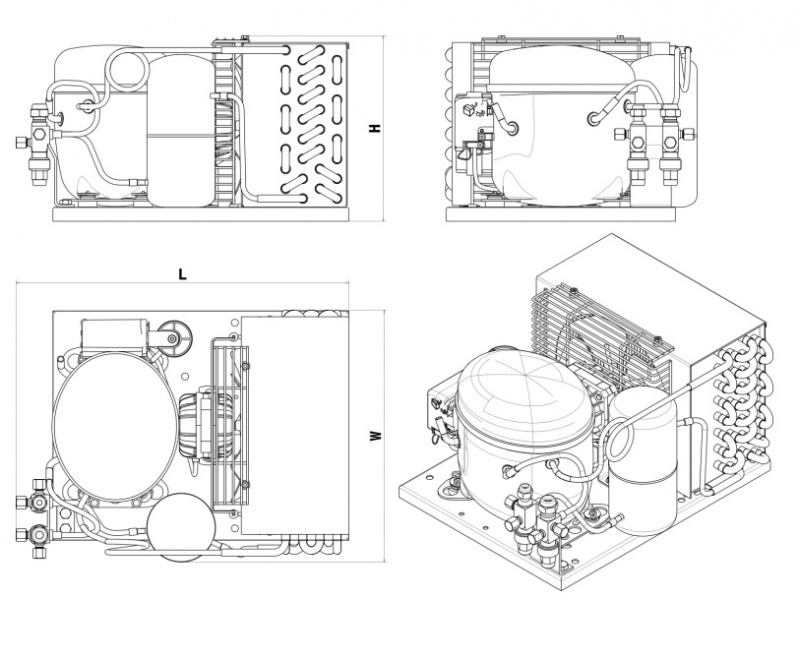

  • Net dimensions (WxDxH) 315 x 385 x 235 mm

Tabel comparativ

Cubigel HMBP (R290)
Modele Power supply (V/Hz/Ph)ApplicationDisplacement (cm³)Cooling capacity [W] / Evapor. temp. [°C] (W)
-40°C-30°C-25°C-23,3°C-20°C-15°C-10°C-5°C5°C7,2°C10°C
CNBC30RA220-240/50/1MBP
HBP		3.10--131165182200247294414444484
CNUY45RA220-240/50/1MBP
HBP		4.5--190240265290358427602645703
CNUY55RA220-240/50/1MBP
HBP		5.5--240303335367453540760815889
CNUY70RA220-240/50/1MBP
HBP		6.7--30138041945956767595110191111
