Cubigel MS34F3 compressor (R404a)

Solicită ofertă PDF

Cubigel three-phase motor (ACC) MS34F3, freezing (LBP), 34.42 cm³, R404a

Refrigeration compressor with applications for negative temperatures (LBP).
380V compressor with compact design, light weight and quiet operation.
Three-phase motor.
This compact compressor model is mainly used for water coolers, beverage coolers, small showcases and freezers.

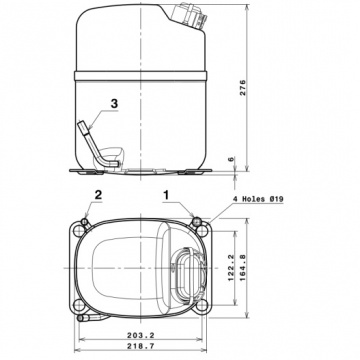

Maximum height: 276 mm.

Cubigel LBP (R404A)
Modele	Power supply (V/Hz/Ph)	Application	Displacement (cm³)	Cooling capacity [W] / Evapor. temp. [°C] (W)
Modele	Power supply (V/Hz/Ph)	Application	Displacement (cm³)	-40°C	-35°C	-30°C	-25°C	-15°C	-10°C	-5°C	5°C	7,2°C	10°C
ML45FB	220-240/50/1	LBP	4.56	52		100	134		275	-	-	-	-
ML60FB	220-240/50/1	LBP	5.98	87		169	222		430	-	-	-	-
ML80FB	220-240/50/1	LBP	8.10	100		190	253		507	-	-	-	-
ML90FB	220-240/50/1	LBP	8.86	104		208	276		550	-	-	-	-
MLY90LA	220-240/50/1	LBP	9.09	121		236	313		614	-	-	-	-
MLY12LA	220-240/50/1	LBP	12.10	156	217	294	387	620	762	-	-	-	-
MPT12LA	220-240/50/1	LBP	12.10	194		348	453		876	-	-	-	-
MP14FB	220-240/50/1	LBP	14.32	243		420	535		988	-	-	-	-
MPT14LA	220-240/50/1	LBP	14.32	243		420	535		988	-	-	-	-
MPT16LA	220-240/50/1	LBP	16.15	260		467	610		1165	-	-	-	-
MX18FB	220-240/50/1	LBP	18.40	174		397	548		1151	-	-	-	-
MX21FB	220-240/50/1	LBP	20.72	213		464	632		1301	-	-	-	-
MX23FB	220-240/50/1	LBP	23.21	260		536	720		1460	-	-	-	-
MS26FB	220-240/50/1	LBP	25.93	182		572	816		1050	-	-	-	-
MS30FB	220-240/50/1	LBP	29.95	381	662	979	1330	2137	2592	-	-	-	-
MS34FB	220-240/50/1	LBP	34.42	243		764	1089		2319	-	-	-	-
MS34F3	380-400/50/3	LBP	34.42	243		764	1089		2319	-	-	-	-
