Cubigel ML80FB compressor (R404a)

Compresor Cubigel ML80FB (R404a)Compresor CubigelCompresor frigorific Cubigel ML80FB (R404a)
qr Ai observat o eroare?

COD DTN

  • 101.01.3010

COD PRODUS

Solicită ofertă PDF

Single-phase motor Cubigel (ACC) ML80FB, freezing (LBP), 8.10 cm³, R404a

  • Refrigeration compressor with applications for negative temperatures (LBP).
  • 220V compressor with compact design, light weight and quiet operation.
  • Motor: CSIR (Start-Induction Run Capacitor), with starting capacitor; auxiliary winding disconnected after start up. Efficiency according to standards.
  • This compact compressor model is mainly used for water coolers, beverage coolers, small showcases and freezers.
  • Single-phase power supply.

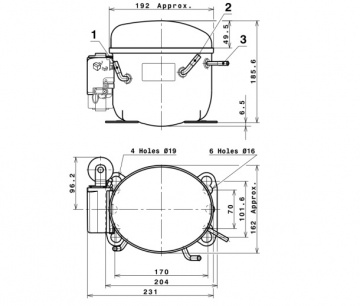

  • Maximum height: 185.6 mm.

Specificații

  • Power supply 220-240/50/1 V/Hz/Ph
  • Application LBP
  • Refrigerant R404A, R507A
  • Displacement 8.10 cm³
  • Motor type CSIR
  • Cooling capacity [W] / Evapor. temp. [°C]
    • -40°C : 100 W
    • -35°C : W
    • -30°C : 190 W
    • -25°C : 253 W
    • -15°C : W
    • -10°C : 507 W
    • -5°C : - W
    • 5°C : - W
    • 7,2°C : - W
    • 10°C : - W
  • Net weight 10.0 kg

Tabel comparativ

Cubigel LBP (R404A)
Modele Power supply (V/Hz/Ph)ApplicationDisplacement (cm³)Cooling capacity [W] / Evapor. temp. [°C] (W)
-40°C-35°C-30°C-25°C-15°C-10°C-5°C5°C7,2°C10°C
ML45FB220-240/50/1LBP4.5652100134275----
ML60FB220-240/50/1LBP5.9887169222430----
ML80FB220-240/50/1LBP8.10100190253507----
ML90FB220-240/50/1LBP8.86104208276550----
MLY90LA220-240/50/1LBP9.09121236313614----
MLY12LA220-240/50/1LBP12.10156217294387620762----
MPT12LA220-240/50/1LBP12.10194348453876----
MP14FB220-240/50/1LBP14.32243420535988----
MPT14LA220-240/50/1LBP14.32243420535988----
MPT16LA220-240/50/1LBP16.152604676101165----
MX18FB220-240/50/1LBP18.401743975481151----
MX21FB220-240/50/1LBP20.722134646321301----
MX23FB220-240/50/1LBP23.212605367201460----
MS26FB220-240/50/1LBP25.931825728161050----
MS30FB220-240/50/1LBP29.95381662979133021372592----
MS34FB220-240/50/1LBP34.4224376410892319----
MS34F3380-400/50/3LBP34.4224376410892319----
