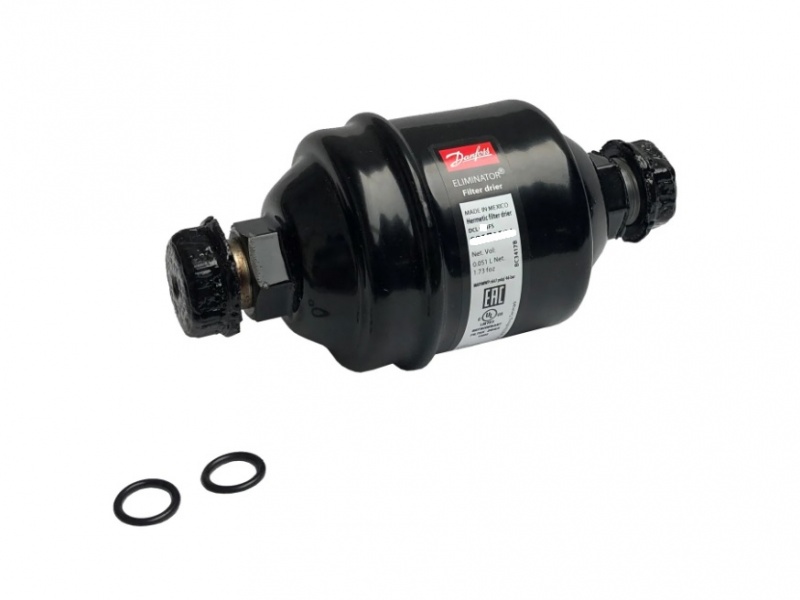

Danfoss DCL 163 FS (3/8") o-ring filter drier

Solicită ofertă PDF

Filter drier with o-rings and front threaded connection (face seal - FS), Danfoss 023Z3245, 3/8"

Eliminator filter with o-ring set that protects the refrigeration/air conditioning system from: moisture, acid and unwanted solid particles.
High drying capacity minimizing the risk of acid formation (hydrolysis).
Danfoss DCL163FS 023Z3245 filter with 3/8" front threaded equal connection.
The seal between the filter drier and the pipe connection is provided by temperature resistant o-rings, rubber rings or O-rings using a face seal (FS).
Contributes to keeping a clean circuit, resulting in lower operating costs. Recommended for use with R1234yf, R125, R134a, R22/R407C, R23, R290, R32, R404A, R407A, R407F, R410A, R422B, R422D, R438A, R444B, R448A, R449A, R449B, R450A, R452B, R452B, R45 R455A, R507A, R513A, R600, R1234ze(E), R1233zd(E), R407H, R454A, R454C, R463A, R515B, R516A.
A set of gaskets consisting of 2 round rubber rings, code 023Z0651, is attached to each filter drier.
Internal volume: 0.226 liters.
Net weight: 680 grams (±5%).

Equal connection (mm) - mm
Equal connections (") 3/8 "
Filter type etansare frontala O-ring (face seal O-ring)
Filter dimensions
- lung. cu conexiuni (length with connect.) : 150 mm
- lung. corp filtru (filter body length) : 105 mm
- diam. transversal (diameter) : 75 mm

Filter driers with o-ring
Modele	Equal connection (mm) (mm)	Equal connections (") (")	Filter type	Filter dimensions (mm)
Modele	Equal connection (mm) (mm)	Equal connections (") (")	Filter type	lung. cu conexiuni (length with connect.)	lung. corp filtru (filter body length)	diam. transversal (diameter)
DCL 053 FS (3/8")	-	3/8	etansare frontala O-ring (face seal O-ring)	136	75	57
DML 083 FS (3/8")	-	3/8	etansare frontala O-ring (face seal O-ring)	160	101	58
DML 163 FS (3/8")	-	3/8	etansare frontala O-ring (face seal O-ring)	150	105	75
DCL 163 FS (3/8")	-	3/8	etansare frontala O-ring (face seal O-ring)	150	105	75
DML 164 FS (1/2")	-	1/2	etansare frontala O-ring (face seal O-ring)	150	105	75
DML 303 FS (3/8")	-	3/8	etansare frontala O-ring (face seal O-ring)	220	185	75
DML 304 FS (1/2")	-	1/2	etansare frontala O-ring (face seal O-ring)	240	185	90
DML 305 FS (5/8")	-	5/8	etansare frontala O-ring (face seal O-ring)	270	190	80
