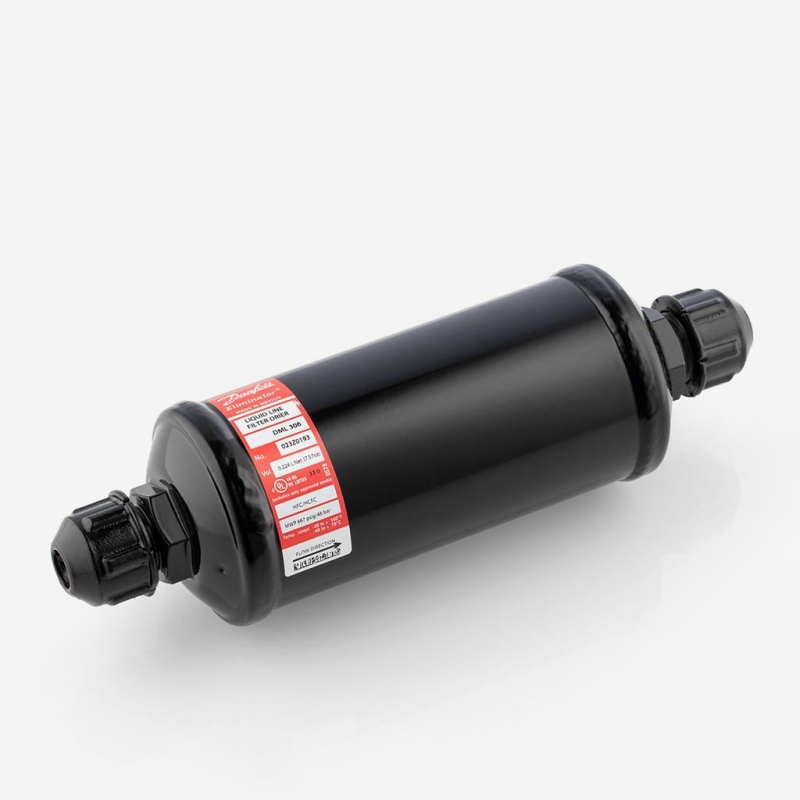

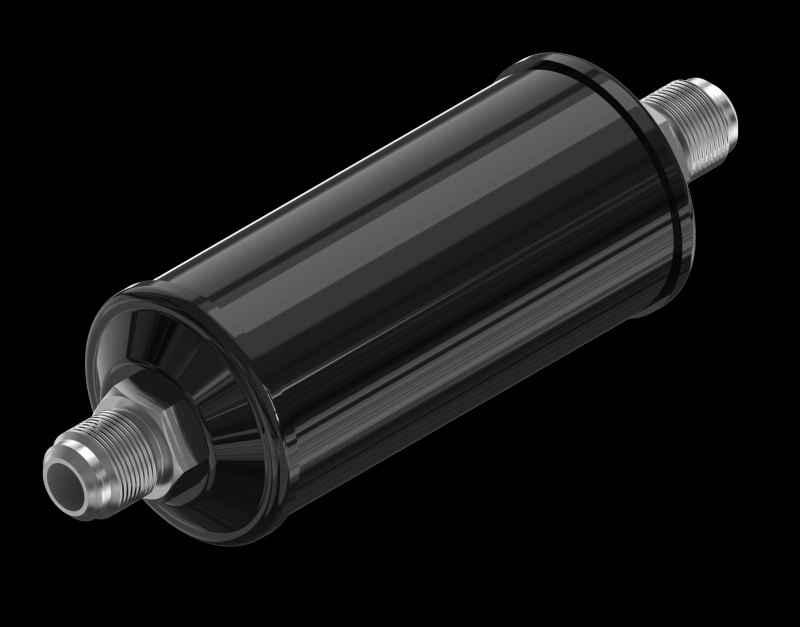

Danfoss DML 306 - 3/4" filter drier

Filtru deshidrator Danfoss DML306 3/4filtru DML306 3/4Filtru deshidrator Danfoss (filter drier)Filtru deshidrator Danfoss (filter drier)
qr Ai observat o eroare?

COD PRODUS

Solicită ofertă PDF

3/4" flare dehydrator filter, internal manufacturer code: 023Z0193

  • Disposal filter that protects the refrigeration / air conditioning system from: moisture, acid and unwanted solid particles.
  • High drying capacity minimizing the risk of acid formation (hydrolysis).
  • Danfoss DML306 023Z0193 filter with equal 3/4 "threaded connection.
  • Helps keep the circuit clean, reducing operating costs. Recommended for use with R134a, R404A, R32, R410A, R407C, R23, R600, R600a, R1234yf, R1234ze, R407f, R290, R452A, R444B, R449A, R448A and R450A (PAG / POE oil circuits).
  • Liquid capacity: 17.5 kW (R134a); 12.5 kW (R404a, R507); 19 kW (R22, R407C, R410A).
  • Dehydration capacity: 57 kg (R134a / R507); 92.5 kg (R404A); 57 kg (R22, R407C, R410A).
  • Basic composition 100% molecular sieve.
  • Nominal size: 30 cubic inches.

Specificații

  • Equal connection (mm) - mm
  • Equal connections (") 3/4 "
  • Filter type filetat (flare)
  • Inlet x out. connections
    • inch : 3/4 x 3/4
    • mm : -
  • Filter dimensions
    • lung. cu conexiuni (length with connect.) : mm
    • lung. corp filtru (filter body length) : mm
    • diam. transversal (diameter) : mm

Tabel comparativ

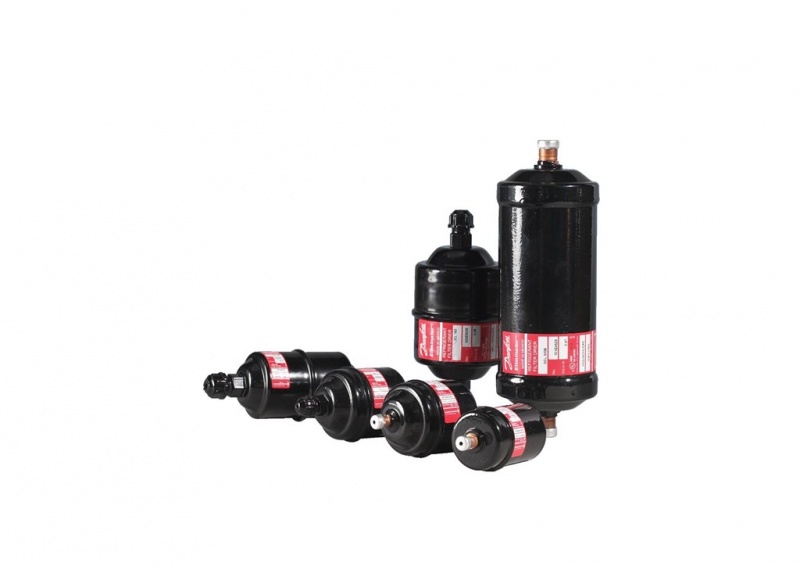

Danfoss filter driers
Modele Equal connection (mm) (mm)Equal connections (") (")Filter typeInlet x out. connectionsFilter dimensions (mm)
inchmmlung. cu conexiuni (length with connect.)lung. corp filtru (filter body length)diam. transversal (diameter)
DML 03261/4sudabil (solder)1/4 x 1/46 x 6
DML 032 - 1/4"-1/4filetat (flare)1/4 x 1/4-
DML 03310-sudabil (solder)-10 x 10
DML 033 - 3/8"-3/8filetat (flare)3/8 x 3/8-1296747
DML 0526-sudabil (solder)-6 x 6
DML 052 - 1/4"-1/4filetat (flare)1/4 x 1/4-1237557
DML 05310-sudabil (solder)-10 x 10
DML 053 - 3/8"-3/8filetat (flare)3/8 x 3/8-1367557
DML 0826-sudabil (solder)-6 x 6
DML 082 - 1/4"-1/4filetat (flare)1/4 x 1/4-15010157
DML 08310-sudabil (solder)-10 x 10
DML 083 - 3/8"-3/8filetat (flare)3/8 x 3/8-16010158
DML 08412-sudabil (solder)-12 x 1215010258
DML 084 - 1/2"-1/2filetat (flare)1/2 x 1/2-17010358
DML 08516-sudabil (solder)-16 x 16
DML 085 - 5/8"-5/8filetat (flare)5/8 x 5/8-
DML 1626-sudabil (solder)-6 x 6
DML 162 - 1/4"-1/4filetat (flare)1/4 x 1/4-16011080
DML 16310-sudabil (solder)-10 x 1015311080
DML 163 - 3/8"-3/8filetat (flare)3/8 x 3/8-17011080
DML 164121/2sudabil (solder)1/212 x 1215711080
DML 164 - 1/2"-1/2filetat (flare)1/2 x 1/2-
DML 165-5/8sudabil (solder)5/8 x 5/8-16511080
DML 165 - 5/8"-5/8filetat (flare)5/8 x 5/8-19011080
DML 166-3/4sudabil (solder)3/4 x 3/4-16511080
DML 166 - 3/4"-3/4filetat (flare)3/4 x 3/4-
DML 30310-sudabil (solder)-10 x 10
DML 303 - 3/8"-3/8filetat (flare)3/8 x 3/8-25019080
DML 30412-sudabil (solder)-12 x 12
DML 304 - 1/2"-1/2filetat (flare)1/2 x 1/2-
DML 30516-sudabil (solder)-16 x 16
DML 305 - 5/8"-5/8filetat (flare)5/8 x 5/8-27019080
DML 306-3/4sudabil (solder)3/4 x 3/4-
DML 306 - 3/4"-3/4filetat (flare)3/4 x 3/4-
DML 307-7/8sudabil (solder)7/8 x 7/8-
DML 414121/2sudabil (solder)1/2 x 1/212 x 12
DML 414 - 1/2"-1/2filetat (flare)1/2 x 1/2-
DML 415-5/8sudabil (solder)5/8 x 5/8-
DML 415 - 5/8"-5/8filetat (flare)5/8 x 5/8-
DML 417-7/8sudabil (solder)7/8 x 7/8-25019093
DML 606193/4sudabil (solder)3/4 x 3/419 x 19
DML 607227/8sudabil (solder)7/8 x 7/822 x 22
DML 609281-1/8sudabil (solder)1-1/8 x 1-1/828 x 28
DML 757227/8sudabil (solder)7/8 x 7/822 x 22
DML 759281-1/8sudabil (solder)1-1/8 x 1-1/828 x 28
