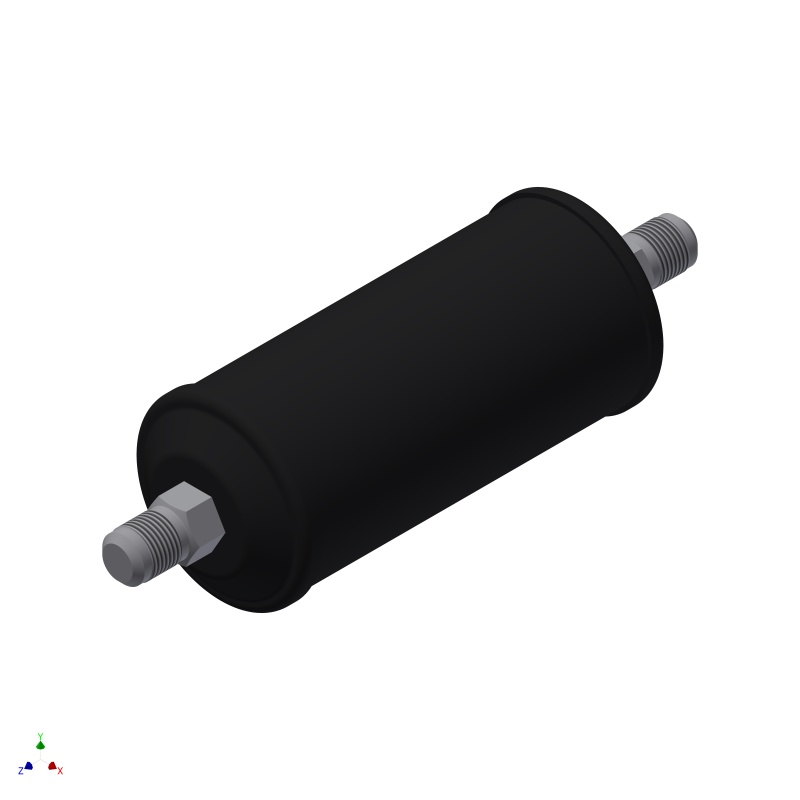

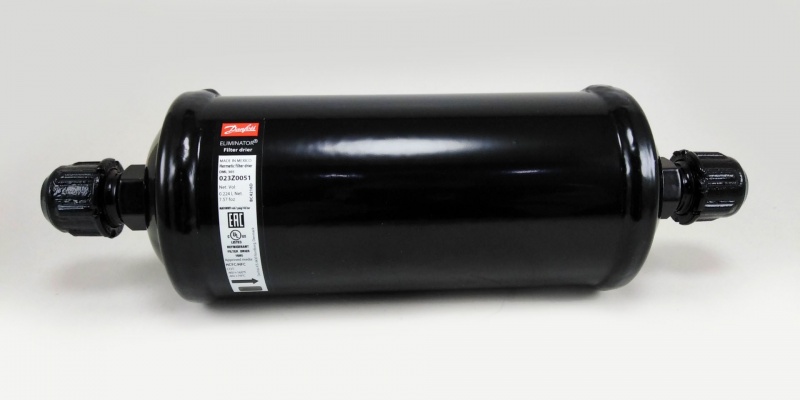

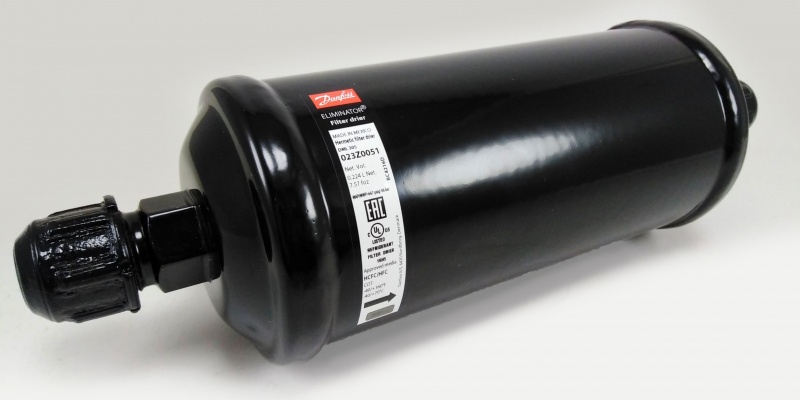

Danfoss DML 305 - 5/8" filter drier

Filtru deshidrator Danfoss DML 305 - 5/8DML305 5/8Filtru deshidrator Danfoss DML305 5/8Filtru deshidrator Danfoss (filter drier)Filtru deshidrator Danfoss (filter drier)
qr Ai observat o eroare?

COD DTN

  • 203.18.1065

COD PRODUS

Solicită ofertă PDF

5/8" flare dehydrator filter, internal manufacturer code: 023Z0051

  • Disposal filter that protects the refrigeration / air conditioning system from: moisture, acid and unwanted solid particles.
  • High drying capacity minimizing the risk of acid formation (hydrolysis).
  • Danfoss DML305 023Z0051 filter with equal 5/8 "threaded connection.
  • Helps keep the circuit clean, reducing operating costs. Recommended for use with R134a, R404A, R32, R410A, R407C, R23, R600, R600a, R1234yf, R1234ze, R407f, R290,
  • R452A, R444B, R449A, R448A and R450A (PAG / POE oil circuits).
  • Liquid capacity: 12.5 kW (R134a); 9 kW (R404a, R507); 14 kW (R22, R407C, R410A).
  • Dehydration capacity: 57 kg (R134a / R507); 92.5 kg (R404A); 57 kg (R22, R407C, R410A).
  • Basic composition 100% molecular sieve.
  • Nominal size: 30 cubic inches (270 mm (190 mm) x 80 mm).
  • Gross weight: 1440 grams (± 5%).

Specificații

  • Equal connection (mm) - mm
  • Equal connections (") 5/8 "
  • Filter type filetat (flare)
  • Inlet x out. connections
    • inch : 5/8 x 5/8
    • mm : -
  • Filter dimensions
    • lung. cu conexiuni (length with connect.) : 270 mm
    • lung. corp filtru (filter body length) : 190 mm
    • diam. transversal (diameter) : 80 mm

Tabel comparativ

Danfoss filter driers
Modele Equal connection (mm) (mm)Equal connections (") (")Filter typeInlet x out. connectionsFilter dimensions (mm)
inchmmlung. cu conexiuni (length with connect.)lung. corp filtru (filter body length)diam. transversal (diameter)
DML 03261/4sudabil (solder)1/4 x 1/46 x 6
DML 032 - 1/4"-1/4filetat (flare)1/4 x 1/4-
DML 03310-sudabil (solder)-10 x 10
DML 033 - 3/8"-3/8filetat (flare)3/8 x 3/8-1296747
DML 0526-sudabil (solder)-6 x 6
DML 052 - 1/4"-1/4filetat (flare)1/4 x 1/4-1237557
DML 05310-sudabil (solder)-10 x 10
DML 053 - 3/8"-3/8filetat (flare)3/8 x 3/8-1367557
DML 0826-sudabil (solder)-6 x 6
DML 082 - 1/4"-1/4filetat (flare)1/4 x 1/4-15010157
DML 08310-sudabil (solder)-10 x 10
DML 083 - 3/8"-3/8filetat (flare)3/8 x 3/8-16010158
DML 08412-sudabil (solder)-12 x 1215010258
DML 084 - 1/2"-1/2filetat (flare)1/2 x 1/2-17010358
DML 08516-sudabil (solder)-16 x 16
DML 085 - 5/8"-5/8filetat (flare)5/8 x 5/8-
DML 1626-sudabil (solder)-6 x 6
DML 162 - 1/4"-1/4filetat (flare)1/4 x 1/4-16011080
DML 16310-sudabil (solder)-10 x 1015311080
DML 163 - 3/8"-3/8filetat (flare)3/8 x 3/8-17011080
DML 164121/2sudabil (solder)1/212 x 1215711080
DML 164 - 1/2"-1/2filetat (flare)1/2 x 1/2-
DML 165-5/8sudabil (solder)5/8 x 5/8-16511080
DML 165 - 5/8"-5/8filetat (flare)5/8 x 5/8-19011080
DML 166-3/4sudabil (solder)3/4 x 3/4-16511080
DML 166 - 3/4"-3/4filetat (flare)3/4 x 3/4-
DML 30310-sudabil (solder)-10 x 10
DML 303 - 3/8"-3/8filetat (flare)3/8 x 3/8-25019080
DML 30412-sudabil (solder)-12 x 12
DML 304 - 1/2"-1/2filetat (flare)1/2 x 1/2-
DML 30516-sudabil (solder)-16 x 16
DML 305 - 5/8"-5/8filetat (flare)5/8 x 5/8-27019080
DML 306-3/4sudabil (solder)3/4 x 3/4-
DML 306 - 3/4"-3/4filetat (flare)3/4 x 3/4-
DML 307-7/8sudabil (solder)7/8 x 7/8-
DML 414121/2sudabil (solder)1/2 x 1/212 x 12
DML 414 - 1/2"-1/2filetat (flare)1/2 x 1/2-
DML 415-5/8sudabil (solder)5/8 x 5/8-
DML 415 - 5/8"-5/8filetat (flare)5/8 x 5/8-
DML 417-7/8sudabil (solder)7/8 x 7/8-25019093
DML 606193/4sudabil (solder)3/4 x 3/419 x 19
DML 607227/8sudabil (solder)7/8 x 7/822 x 22
DML 609281-1/8sudabil (solder)1-1/8 x 1-1/828 x 28
DML 757227/8sudabil (solder)7/8 x 7/822 x 22
DML 759281-1/8sudabil (solder)1-1/8 x 1-1/828 x 28
